Renesas offers a broad portfolio of USB 2.0 high and full-speed switches and multiplexers (MUXs). These devices can be used in a variety of applications including MP3 and other personal media players, mobile phones, PDAs, digital cameras and camcorders, and USB switching.

Analog Products

产品选型表

    Processing table
    器件号
    Configuration
    BW USB Full-Speed (MHz)
    BW USB High-Speed (MHz)
    VDD Range (V) (V)
    IS (mA)
    Switch Control
    Qualification Level
    Simulation Model Available
    Lead Count (#)
    Pkg. Type
    ISL54200
    USB 2.0 High/Full-Speed Multiplexer    		 HS/FS 550 880 2.7 - 5.5 2E-05 Logic Level Standard 10 TDFN, uTQFN
    ISL54216
    USB 2.0 High-Speed/UART Dual SP3T (Dual 3 to 1 Multiplexer)    		 HS/FS 800 800 2.7 - 4.6 0.0065 Logic Level Standard 12 TQFN
    ISL54220
    High-Speed USB 2.0 (480Mbps) Multiplexer    		 HS/FS 742 742 2.7 - 5.5 3E-05 Logic Level Standard 10 MSOP, TDFN, uTQFN

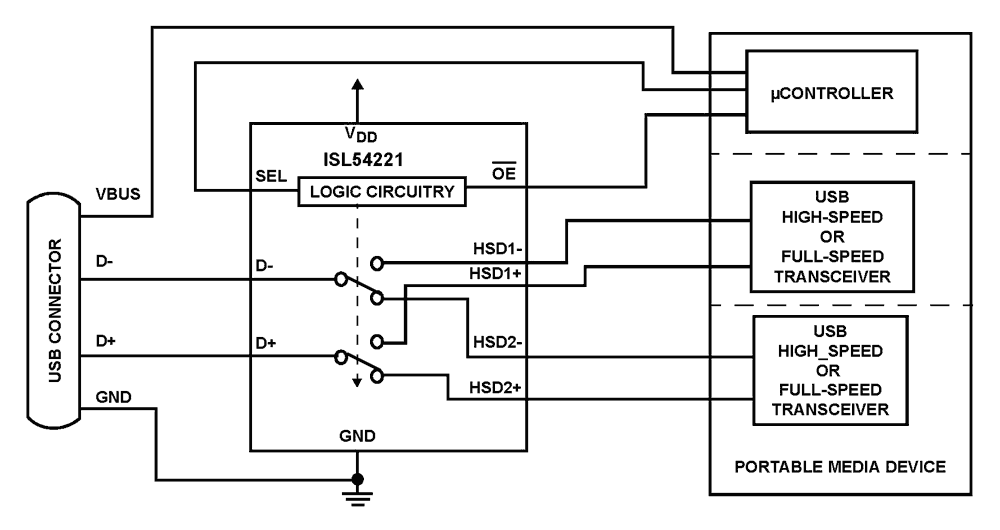

    ISL54221
    High-Speed USB 2.0 (480Mbps) Multiplexer    		 HS/HS 500 500 2 - 5.5 0.001 Logic Level Standard 10 uTQFN

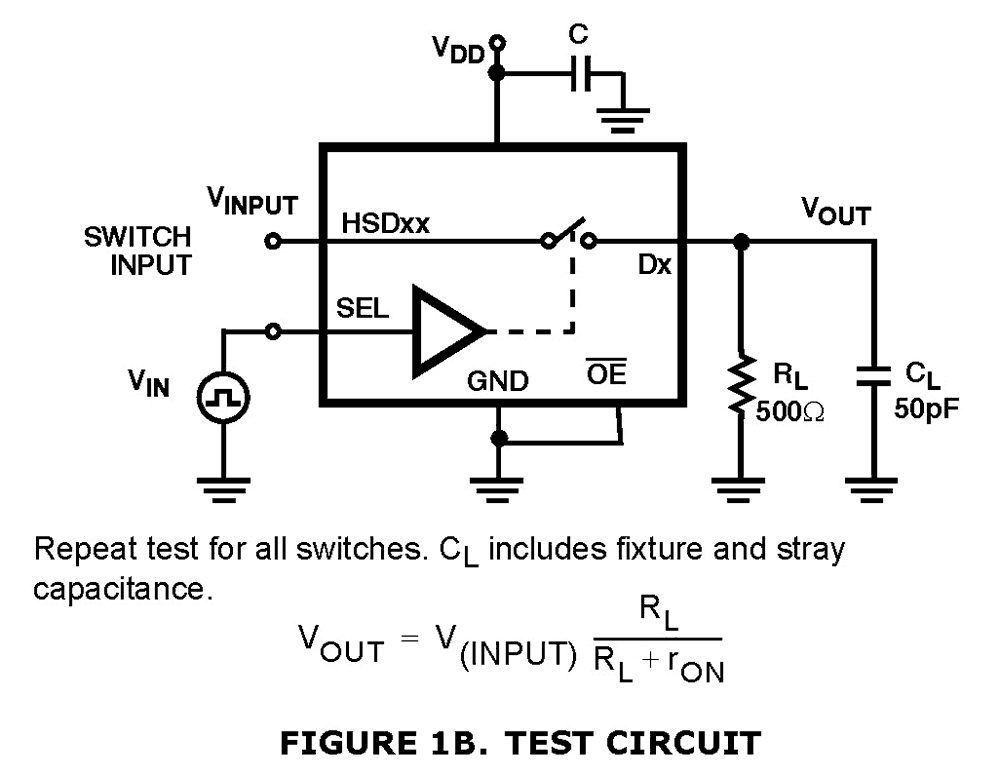

    ISL54222A
    High-Speed USB 2.0 (480Mbps) Multiplexer    		 HS/FS 782 782 1.8 - 3.3 0.0058 Logic Level Standard 10 MSOP, TDFN, uTQFN
    ISL54224
    High-Speed USB 2.0 (480Mbps) Multiplexer with Overvoltage Protection (OVP) and Overvoltage Indicator Output    		 HS/FS 780 780 2.7 - 5.25 0.023 Logic Level Standard 10 TDFN, uTQFN
    ISL54225
    High-Speed USB 2.0 (480Mbps) Multiplexer with Overvoltage Protection (OVP)    		 HS/FS 780 780 2.7 - 5.25 0.023 Logic Level Standard 10 TDFN, uTQFN

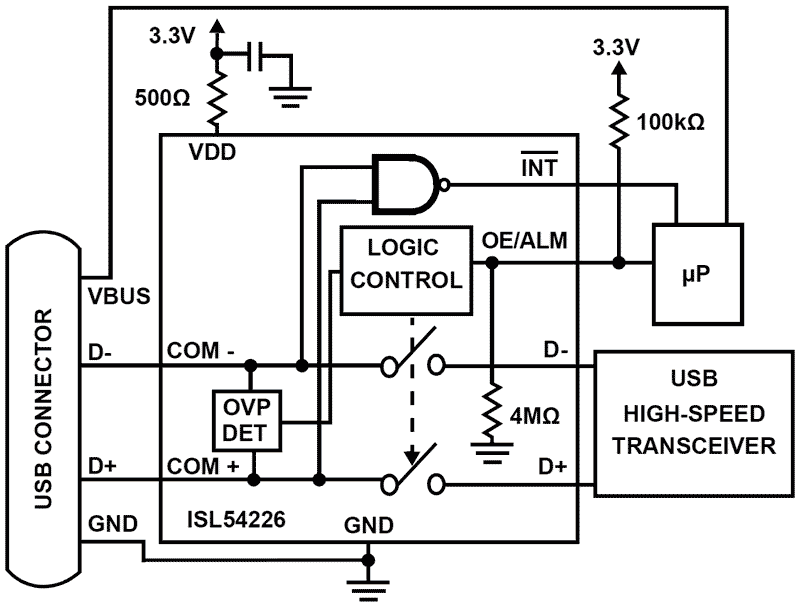

    ISL54226
    High-Speed USB 2.0 (480Mbps) DPST Switch with Overvoltage Protection (OVP) and Dedicated Charger Port Detection    		 HS/FS 790 790 2.7 - 5.25 0.023 Logic Level Standard 8 TDFN
    ISL54227
    High-Speed USB 2.0 (480Mbps) DPST Switch with Overvoltage Protection (OVP) and Dedicated Charger Port Detection    		 HS/FS 790 790 2.7 - 5.25 0.023 Logic Level Standard 10 TDFN, uTQFN
    ISL54233
    Wideband Differential 3:1 Multiplexer    		 HS/FS 1600 1600 2.7 - 4.6 0.0065 Logic Level Standard 12 TQFN
