Renesas 的时钟发生器和合成器均是基于 PLL 的产品，因此可在一个应用中生成一个或多个时钟信号。 此类别包含的低抖动时钟发生器适用于高达 100G 的串行数据应用。PCIe 等其它许多应用将在应用特定型时钟部分进行单独讨论。 如果需要不止一个唯一的输出频率（如 100MHz 和 125MHz），可使用“输出库”参数选择器。 每个库与唯一的输出频率对应。 每个库的输出数量有很大差异，取决于时钟发生器。

一旦选定时钟发生器，可使用扇出缓冲器来提供额外的输出拷贝和类型（LVCMOS、LVPECL 等）。 Renesas 拥有业内最广泛的计时产品系列，适用于各种高度优化的解决方案。

时钟和时序

产品选型表

    Processing table
    器件号
    Diff. Outputs
    Output Type
    Output Freq Range (MHz)
    Input Freq (MHz)
    Inputs (#)
    Input Type
    Output Banks (#)
    Core Voltage (V)
    Output Voltage (V)
    Phase Jitter Typ RMS (ps)
    Phase Jitter Max RMS (ps)
    105°C Max. Case Temp.

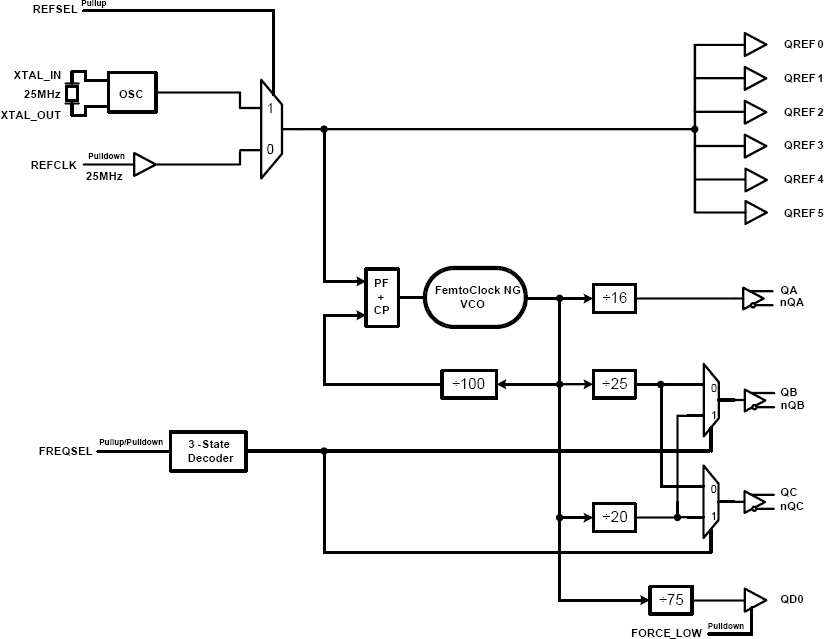

    843N571I
    FemtoClock NG™ Clock Synthesizer    		 LVCMOS, LVPECL 25, 33.33, 100, 125, 156.25 25 2 Crystal, LVCMOS 5 3.3 3.3 0.212
    8A34001
    System Synchronizer for IEEE 1588 - Eight Channels    		 12 HSTL, LVCMOS, LVDS, LVHSTL, LVPECL, LVTTL 0.0000005 - 1000 0.0000005 - 1000 16 HCSL, LVDS, LVHSTL, LVPECL, SSTL 8 2.5, 3.3 1.2, 1.5, 1.8, 2.5, 3.3 0.15 0.2
    8A34002
    System Synchronizer for IEEE 1588 - Four Channels    		 8 HSTL, LVCMOS, LVDS, LVHSTL, LVPECL, LVTTL 0.0000005 - 1000 0.0000005 - 1000 14 HCSL, LVDS, LVHSTL, LVPECL, SSTL 4 2.5, 3.3 1.2, 1.5, 1.8, 2.5, 3.3 0.15 0.2
    8A34003
    System Synchronizer for IEEE 1588 - Four Channels    		 4 HSTL, LVCMOS, LVDS, LVHSTL, LVPECL, LVTTL 0.0000005 - 1000 0.0000005 - 1000 4 HCSL, LVDS, LVHSTL, LVPECL, SSTL 4 2.5, 3.3 1.2, 1.5, 1.8, 2.5, 3.3 0.15 0.2

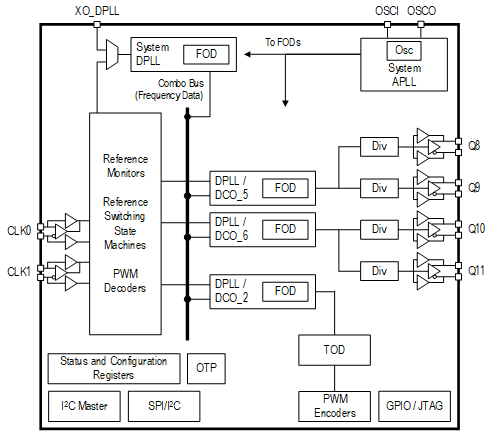

    8A34004
    System Synchronizer for IEEE 1588 - Two Channels    		 4 HSTL, LVCMOS, LVDS, LVHSTL, LVPECL, LVTTL 0.0000005 - 1000 0.0000005 - 1000 4 HCSL, LVDS, LVHSTL, LVPECL, SSTL 4 2.5, 3.3 1.2, 1.5, 1.8, 2.5, 3.3 0.15 0.2
    8A34005
    System Synchronizer for IEEE 1588 - Four Channels    		 12 HSTL, LVCMOS, LVDS, LVHSTL, LVPECL, LVTTL 0.0000005 - 1000 0.0000005 - 1000 4 HCSL, LVDS, LVHSTL, LVPECL, SSTL 4 2.5, 3.3 1.2, 1.5, 1.8, 2.5, 3.3 0.15 0.2
    8A34011
    Line Card Synchronizer for IEEE 1588 - Eight Channels    		 12 HSTL, LVCMOS, LVDS, LVHSTL, LVPECL, LVTTL 0.0000005 - 1000 0.001 - 1000 16 HCSL, LVDS, LVHSTL, LVPECL, SSTL 8 2.5, 3.3 1.2, 1.5, 1.8, 2.5, 3.3 0.15 0.2

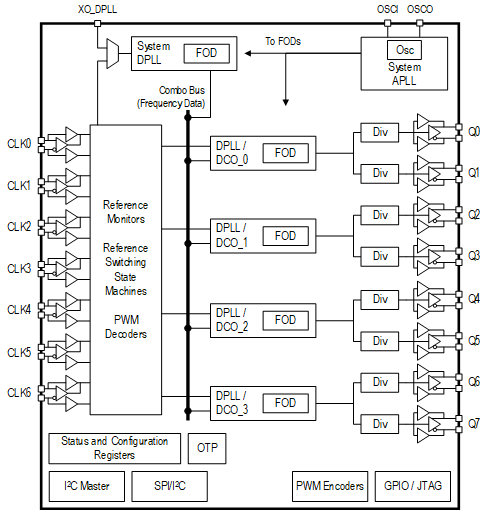

    8A34012
    Line Card Synchronizer for IEEE 1588 - Four Channels    		 8 HSTL, LVCMOS, LVDS, LVHSTL, LVPECL, LVTTL 0.0000005 - 1000 0.001 - 1000 14 HCSL, LVDS, LVHSTL, LVPECL, SSTL 4 2.5, 3.3 1.2, 1.5, 1.8, 2.5, 3.3 0.15 0.2

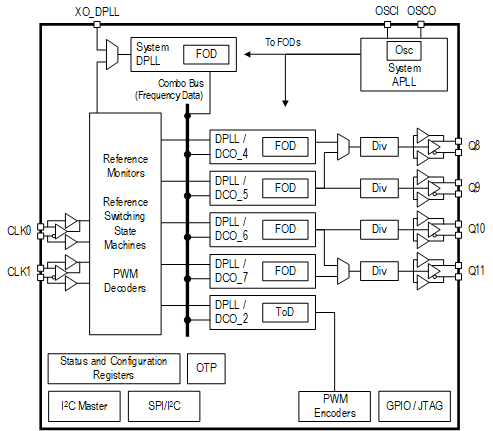

    8A34013
    Line Card Synchronizer for IEEE 1588 - Four Channels    		 4 HSTL, LVCMOS, LVDS, LVHSTL, LVPECL, LVTTL 0.0000005 - 1000 0.001 - 1000 4 HCSL, LVDS, LVHSTL, LVPECL, SSTL 4 2.5, 3.3 1.2, 1.5, 1.8, 2.5, 3.3 0.15 0.2
    8A34041
    Multichannel DPLL / DCO - Eight Channels    		 12 HSTL, LVCMOS, LVDS, LVHSTL, LVPECL, LVTTL 0.0000005 - 1000 0.001 - 1000 16 HCSL, LVDS, LVHSTL, LVPECL, SSTL 8 2.5, 3.3 1.2, 1.5, 1.8, 2.5, 3.3 0.15 0.2
    8A34042
    Multichannel DPLL / DCO - Four Channels    		 8 HSTL, LVCMOS, LVDS, LVHSTL, LVPECL, LVTTL 0.0000005 - 1000 0.001 - 1000 14 HCSL, LVDS, LVHSTL, LVPECL, SSTL 4 2.5, 3.3 1.2, 1.5, 1.8, 2.5, 3.3 0.15 0.2
    8A34043
    Multichannel DPLL / DCO - Four Channels    		 4 HSTL, LVCMOS, LVDS, LVHSTL, LVPECL, LVTTL 0.0000005 - 1000 0.001 - 1000 4 HCSL, LVDS, LVHSTL, LVPECL, SSTL 4 2.5, 3.3 1.2, 1.5, 1.8, 2.5, 3.3 0.15 0.2
    8A34044
    Multichannel DPLL / DCO - Four / Eight Channels    		 12 HSTL, LVCMOS, LVDS, LVHSTL, LVPECL, LVTTL 0.0000005 - 1000 0.001 - 1000 8 HCSL, LVDS, LVHSTL, LVPECL, SSTL 8 2.5, 3.3 1.2, 1.5, 1.8, 2.5, 3.3 0.15 0.2
    8A34045
    Multichannel DPLL / DCO - Two / Eight Channels    		 12 HSTL, LVCMOS, LVDS, LVHSTL, LVPECL, LVTTL 0.0000005 - 1000 0.001 - 1000 4 HCSL, LVDS, LVHSTL, LVPECL, SSTL 8 2.5, 3.3 1.2, 1.5, 1.8, 2.5, 3.3 0.15 0.2

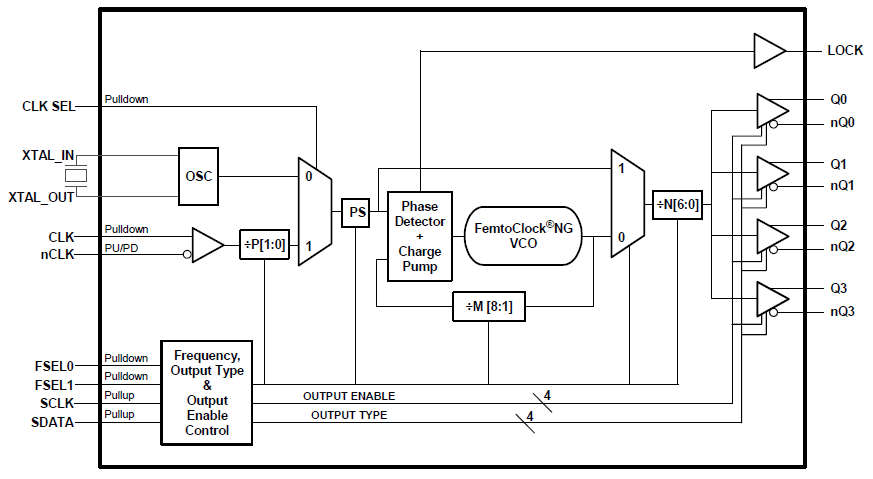

    8T49N004I
    Programmable FemtoClock™ NG LVPECL/LVDS Clock Generator with 4-Outputs    		 LVDS, LVPECL 15.16 - 1250 10 - 312.5 2 Crystal, HCSL, LVDS, LVPECL 1 2.5, 3.3 2.5, 3.3 0.212 0.292

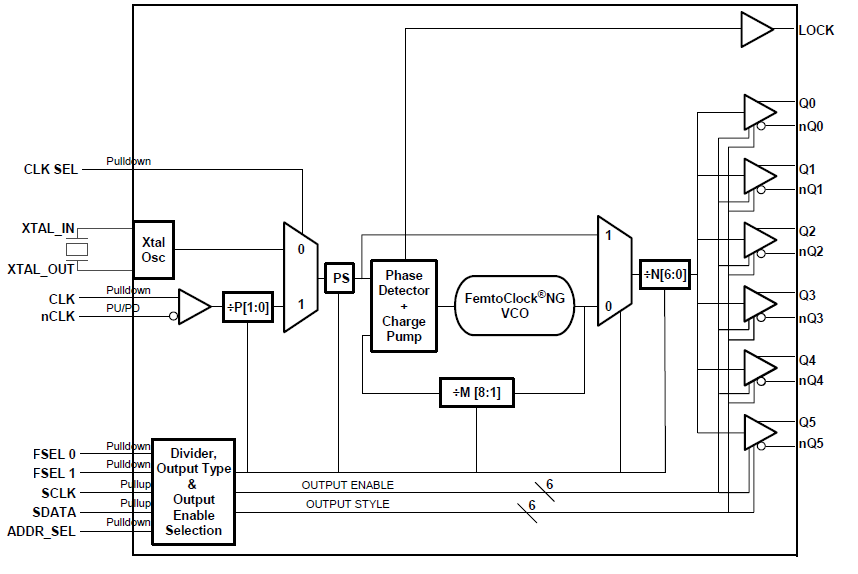

    8T49N006I
    Programmable FemtoClock™ NG LVPECL/LVDS Clock Generator with 6-Outputs    		 LVDS, LVPECL 15.16 - 1250 10 - 312.5 2 Crystal, HCSL, LVDS, LVPECL 1 2.5, 3.3 2.5, 3.3 0.212 0.292

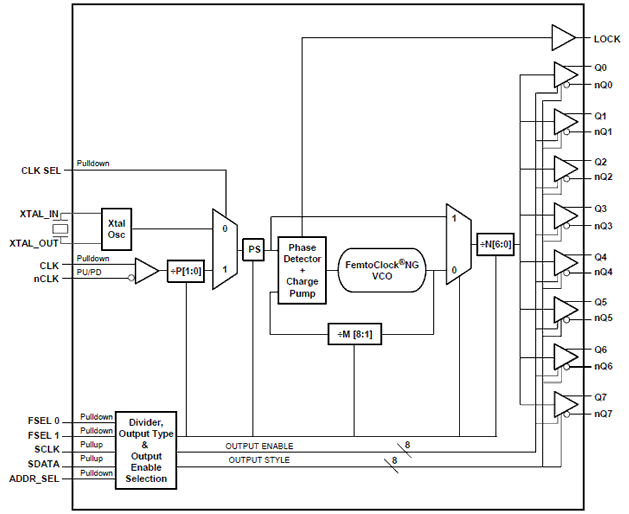

    8T49N008I
    Programmable FemtoClock™ NG LVPECL/LVDS Clock Generator with 8-Outputs    		 LVDS, LVPECL 15.16 - 1250 10 - 312.5 2 Crystal, HCSL, LVDS, LVPECL 1 2.5, 3.3 2.5, 3.3 0.212 0.292

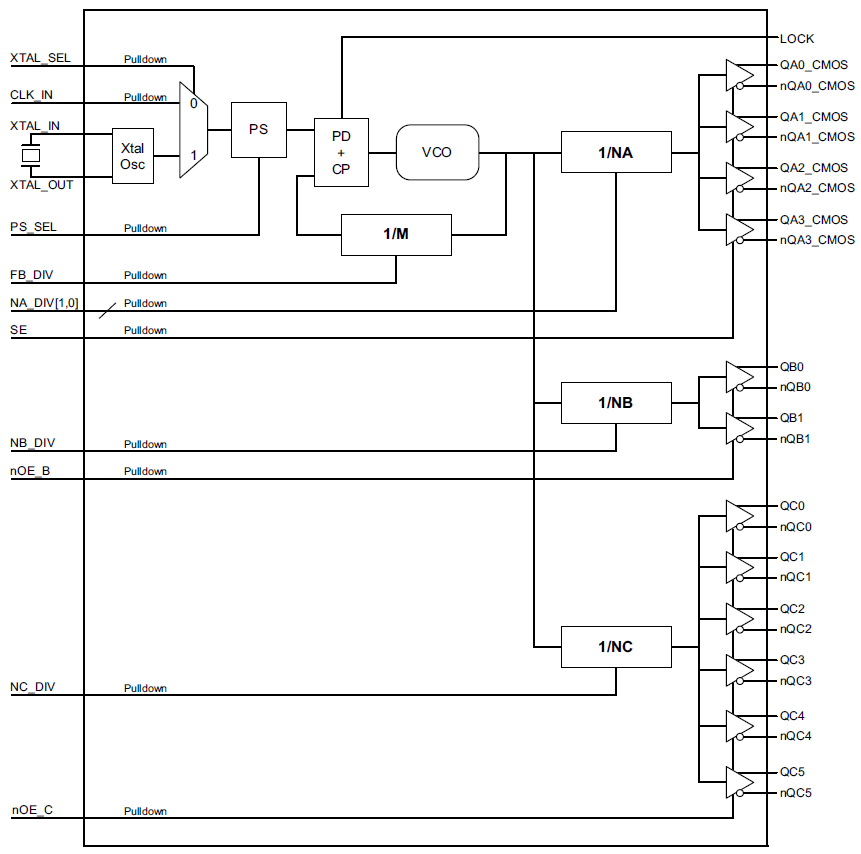

    8T49N012I
    FemtoClock™ NG Crystal-to-3.3V, 2.5V LVPECL/LVCMOS Clock Generator with Fanout Buffer    		 CMOS, LVPECL 15.16 - 1250 10 - 312.5 2 Crystal, HCSL, LVDS, LVPECL 3 2.5, 3.3 2.5, 3.3 0.19 0.26

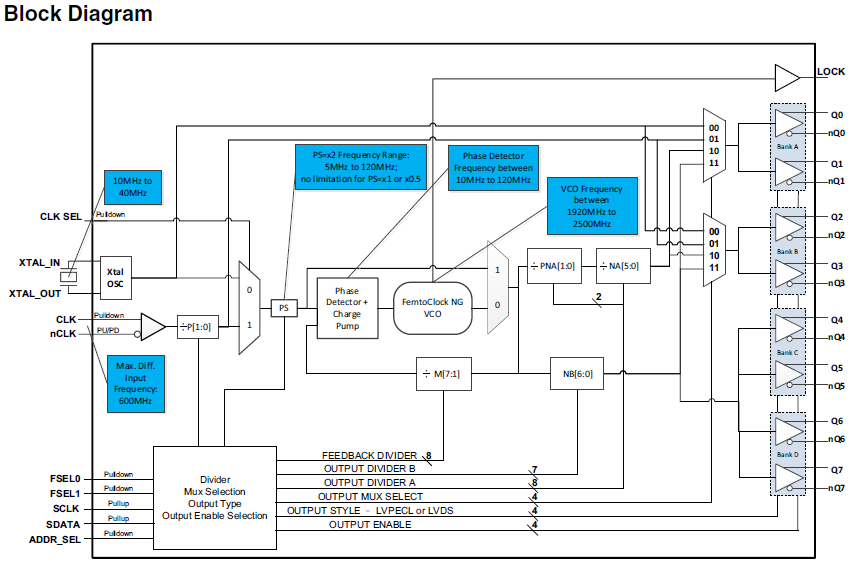

    8T49N028
    Crystal-to-3.3V, 2.5V Multiple Frequency Clock Generator with Fanout Buffer    		 LVDS, LVPECL 15.16 - 1250 10 - 312.5 2 Crystal, HCSL, LVDS, LVPECL 4 2.5, 3.3 2.5, 3.3 0.212 0.292
    8T49N242
    FemtoClock™ NG Universal Frequency Translator    		 4 HCSL, LVCMOS, LVDS, LVPECL 0.008 - 1000 0.008 - 875 2 HCSL, LVCMOS, LVDS, LVHSTL, LVPECL, LVTTL 4 2.5, 3.3 1.8, 2.5, 3.3 0.276
    8T49N285
    FemtoClock NG Universal Frequency Translator (2-in/1-PLL/8-out)    		 8 HCSL, LVCMOS, LVDS, LVPECL 0.008 - 1000 0.008 - 875 2 HCSL, LVCMOS, LVDS, LVHSTL, LVPECL 4 2.5, 3.3 1.8, 2.5, 3.3 0.28
    8T49N286
    FemtoClock NG Universal Frequency Translator (4-in/2-PLL/8-out)    		 8 HCSL, LVCMOS, LVDS, LVPECL 0.008 - 1000 0.008 - 875 4 HCSL, LVCMOS, LVDS, LVHSTL, LVPECL, LVTTL 4 2.5, 3.3 2.5, 3.3 0.28

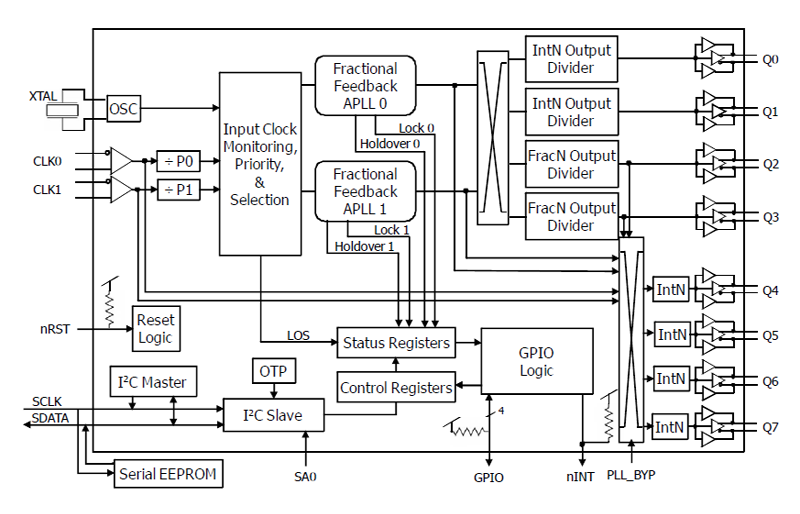

    8T49N287
    FemtoClock NG Universal Frequency Translator (2-in/2-PLL/8-out)    		 8 HCSL, LVCMOS, LVDS, LVPECL 0.008 - 1000 0.008 - 875 2 HCSL, LVCMOS, LVDS, LVHSTL, LVPECL, LVTTL 4 2.5, 3.3 2.5, 3.3 0.28
    8V41NS0412
    FemtoClock™ NG 12-Output Clock Generator    		 11 HCSL 10.91 - 2500 5 - 1000 2 Crystal, HCSL, HSTL, LVCMOS, LVDS, LVHSTL, LVPECL 4 3.3 3.3 0.095

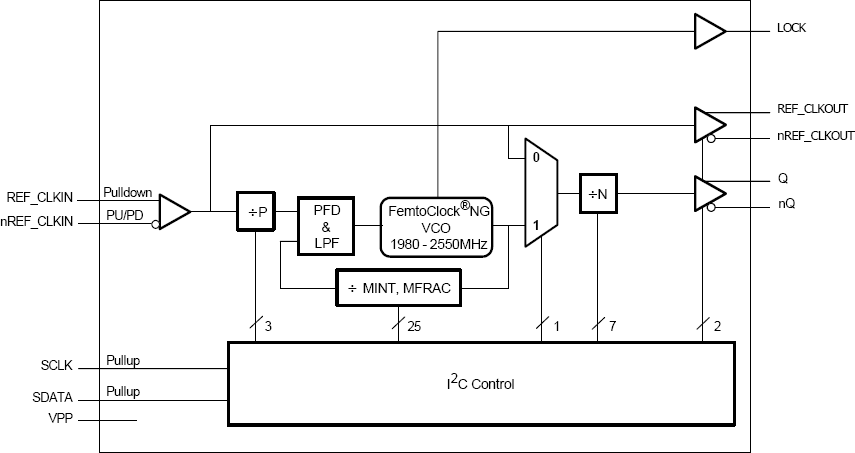

    8V44N003I
    FemtoClock™ NG LVDS Clock Synthesizer    		 LVDS 50 - 1200 20 - 500 1 HCSL, LVCMOS, LVDS, LVPECL, Sine Wave 1 3.3 3.3 0.3 0.45
    8V49NS0312
    FemtoClock™ NG 12-Output Clock Generator    		 11 LVDS, LVPECL 10.91 - 2500 5 - 1000 2 Crystal, HCSL, HSTL, LVCMOS, LVDS, LVHSTL, LVPECL 4 3.3 3.3 0.089
    8V49NS0412
    FemtoClock™ NG 12-Output Clock Generator    		 11 LVDS, LVPECL 10.91 - 2500 5 - 1000 2 Crystal, HCSL, HSTL, LVCMOS, LVDS, LVHSTL, LVPECL 4 3.3 3.3 0.08
    8V97003
    Wideband 18GHz RF and Microwave Synthesizer    		 171.875 - 18000 10 - 1000 1 Yes
    8V97051A
    Low Power Wideband Fractional RF Synthesizer    		 34.375 - 4400 5 - 310 1 Yes
    8V97051L
    Low Power Wideband Fractional RF Synthesizer    		 34.375 - 4400 5 - 310 1 Yes
    8V97052
    High Performance Wideband Fractional RF Synthesizer / PLL    		 34.375 - 4400 5 - 310 1 Yes

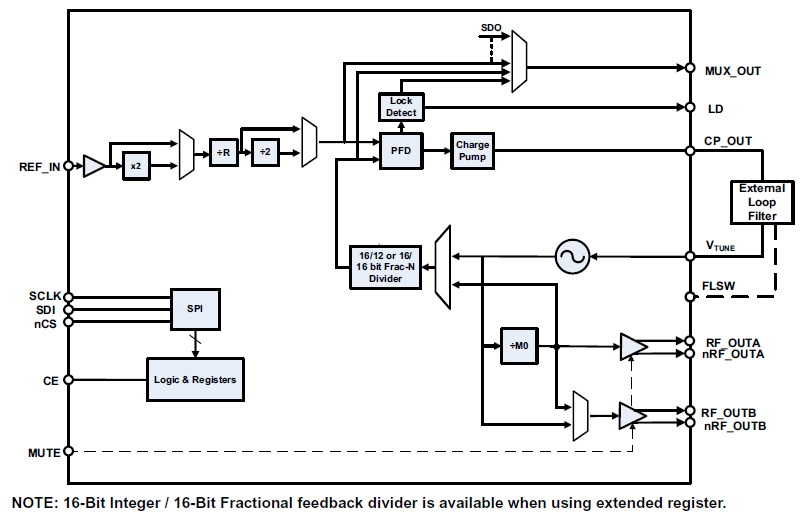

    8V97053L
    High Performance Wideband Fractional RF Synthesizer / PLL    		 34.375 - 4400 5 - 310 1 Yes
    RC210
    VersaClock® 7 可编程时钟產生器系列    		 8, 12 LP-HCSL, LVCMOS, LVDS 0.001 - 650 1 - 650 4 Crystal, LP-HCSL, LVCMOS, LVDS 6 1.8, 2.5, 3.3 1.8, 2.5, 3.3 0.15
    RC22504A
    FemtoClock™ 2 Clock Generator    		 4 HCSL, LVCMOS, LVDS 10 - 1000 25 - 312.5 2 Crystal, HCSL, LVCMOS, LVDS 4 1.8, 3.3 1.8 0.079 0.1
    RC22514A
    FemtoClock™ 2 Clock Generator    		 4 HCSL, LVCMOS, LVDS 10 - 1000 0 4 1.8, 3.3 1.8 0.079 0.1
    RC32504A
    FemtoClock™ 2 Jitter Attenuator or Clock Generator    		 4 HCSL, LVCMOS, LVDS 10 - 1000 5 - 1000 3 Crystal, HCSL, LVCMOS, LVDS 4 1.8, 3.3 1.8 0.079 0.1

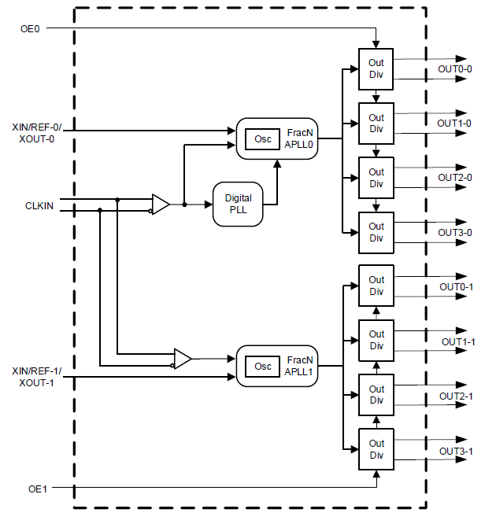

    RC32508A
    FemtoClock 2 Jitter Attenuator or Clock Generator    		 8 HCSL, LVCMOS, LVDS 10 - 1000 1 - 800 3 Crystal, HCSL, LVCMOS, LVDS 8 1.8, 3.3 1.8 0.067 -2, 0.1 No
    RC32514A
    FemtoClock™ 2 Jitter Attenuator or Clock Generator    		 4 HCSL, LVCMOS, LVDS 10 - 1000 1 - 800 3 Crystal, HCSL, LVCMOS, LVDS 4 1.8, 3.3 1.8 0.079 0.1
    RC32614A
    System Synchronizer for IEEE 1588 - Six Channels    		 14 HSTL, LVCMOS, LVDS, LVHSTL, LVPECL, LVTTL 0.0000005 - 1000 0.0000005 - 1000 8 HCSL, LVDS, LVHSTL, LVPECL, SSTL 8 2.5, 3.3 1.2, 1.5, 1.8, 2.5, 3.3 0.1 0.2
    RC38612
    Radio Access Network Equipment Synchronizer - Six Channels    		 12 HSTL, LVCMOS, LVDS, LVHSTL, LVPECL, LVTTL 0.0000005 - 1000 0.001 - 1000 10 HCSL, LVDS, LVHSTL, LVPECL, SSTL 6 2.5, 3.3 1.2, 1.5, 1.8, 2.5, 3.3 0.15 No
