可编程时钟发生器（也被称为可编程计时装置）可帮助设计人员通过取代晶体、振荡器、可编程振荡器和含有单一计时装置的缓冲器的方式节省电路板空间和成本。 这使得它们极其适合于消费品、数据通信、电信和计算等应用。 这些器件通常被称为可编程时钟发生器或可编程 PLL 时钟发生器，或低功耗可编程时钟发生器。 在这些产品中，Renesas 的可编程时钟发生器系列包括第三代通用频率转换器 (UFT™)、FemtoClock® NG、MicroClock™、以及 VersaClock®，每种产品均提供不同级别的抖动性能、能耗、灵活性以及成本。

第三代通用频率转换器： 超高性能

UFT 系列可编程时钟发生器经过优化，适用于高性能光纤网络、无线基站和 100G 以太网 (GbE) 接口应用。 这些装置是业内首款单芯片可编程时钟发生器，能够在 12kHz 到 20MHz 的标准集成范围内生成 RMS 相位抖动低于 300 飞秒的八种不同输出频率。 可编程时钟发生器的第三代 UFT 系列提供了八种独立可编程时钟输出，并具有极大的灵活性，适用于几乎任何输入频率，并可选择几乎任何输出频率。

FemtoClock NG 和 VersaClock 6： 极高性能，低功耗

Renesas FemtoClock 新一代 (NG) 器件是独立的可编程时钟发生器/可编程振荡器，取代了高性能应用中的晶体和 SAW 振荡器。 这些可编程振荡器器件采用简单的低成本基频模式石英晶体作为低频参考，用来合成 RMS 相位抖动为 500fs、频率高达 1.3GHz 的高品质低抖动时钟信号。 VersaClock 6 具备与屡获殊荣的 VersaClock 5 系列产品相同的功能和灵活性，能够提供迄今为止最佳的性能。

VersaClock 3S： 极低功率，通用

VersaClock 3S 器件使得无需采用多个分离式计时组件，从而能够在节省板上空间的同时提供创新的节能功能。 VersaClock 3S 器件提供低功率和低抖动可扩展能力，满足包括 PCI Express® Gen 1/2/3 标准在内的各种广为采用的标准的要求，非常适合消费类、工业、计算以及汽车类应用。

MicroClock：超低功耗，微型封装

Renesas 的 MicroClock 系列超低功耗微型可编程时钟发生器，有助于最大限度地延长电池寿命，减小可穿戴设备、声频设备、智能设备和嵌入式系统的解决方案尺寸。每个器件包括三个输出、1 到 100MHz 的可选频率选项和可配置的扩展频谱时钟，旨在减少客户设计的 EMI。

时钟和时序

产品选型表

    Processing table
    器件号
    Family Name
    Outputs (#)
    Output Type
    Output Freq Range (MHz)
    Input Freq (MHz)
    Inputs (#)
    Input Type
    Output Banks (#)
    Core Voltage (V)
    Output Voltage (V)
    Phase Jitter Typ RMS (ps)
    Prog. Interface
    Spread Spectrum
    105°C Max. Case Temp.
    5L1503
    MicroClock Programmable Clock Generator    		 MicroClock 3 LVCMOS 0.032768 - 100 8 - 40, 1 - 100 1 Crystal, LVCMOS 1 1.8 1, 1.1, 1.2, 1.8 OTP Yes
    5L2503

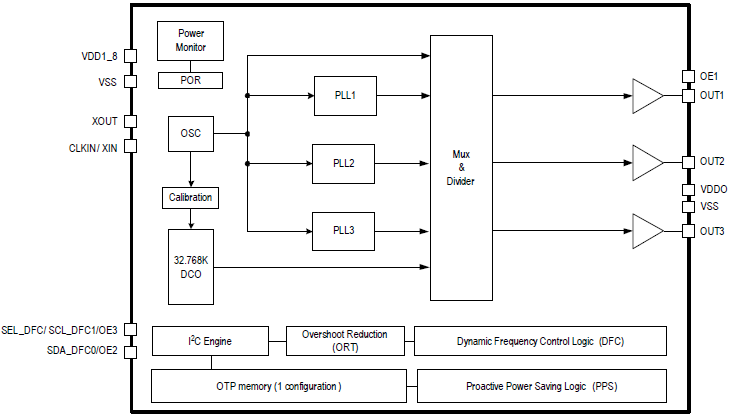

    MicroClock Programmable Clock Generator    		 MicroClock 3 LVCMOS 0.032768 - 120 1 - 120 1 Crystal, LVCMOS 1 1.8 1.8 I2C, OTP Yes
    5L35021
    VersaClock® 3S Programmable Clock Generator    		 VersaClock 3S 5 LP-HCSL, LVCMOS 0.032768 - 125 1 - 160 1 Crystal, HCSL, LVCMOS, LVDS, LVPECL 3 1.8 1.8 3 I2C, OTP Yes
    5L35023
    VersaClock® 3S Programmable Clock Generator    		 VersaClock 3S 7 LP-HCSL, LVCMOS 0.032768 - 125 1 - 160 1 Crystal, HCSL, LVCMOS, LVDS, LVPECL 5 1.8 1.8 3 I2C, OTP Yes
    5P35021
    VersaClock® 3S Programmable Clock Generator    		 VersaClock 3S 5 LP-HCSL, LVCMOS, LVDS, LVPECL 0.032768 - 500 1 - 160 1 Crystal, LP-HCSL, LVCMOS, LVDS, LVPECL 3 3.3 1.8, 2.5, 3.3 3 I2C, OTP Yes
    5P35023
    VersaClock® 3S Programmable Clock Generator    		 VersaClock 3S 7 LP-HCSL, LVCMOS, LVDS, LVPECL 0.032768 - 500 1 - 160 1 Crystal, LP-HCSL, LVCMOS, LVDS, LVPECL 5 3.3 1.8, 2.5, 3.3 3 I2C, OTP Yes
    5P49V5913

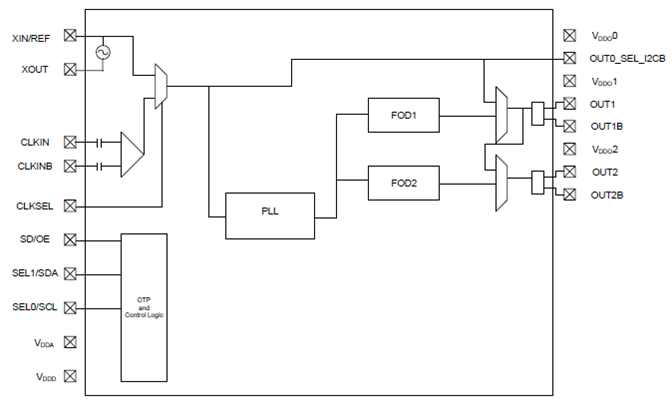

    VersaClock® 5 Low Power Programmable Clock Generator    		 VersaClock 5 3 HCSL, LVCMOS, LVDS, LVPECL 1 - 350 1 - 350 2 Crystal, HCSL, LVCMOS, LVDS, LVPECL 2 1.8, 2.5, 3.3 1.8, 2.5, 3.3 0.7 I2C, OTP Yes
    5P49V60
    VersaClock® 6E Programmable Clock Generator for Automotive    		 VersaClock 6E 5 HCSL, LVCMOS, LVDS, LVPECL 1 - 350 1 - 350 2 Crystal, HCSL, LVCMOS, LVDS, LVPECL 4 1.8, 2.5, 3.3 1.8, 2.5, 3.3 0.5 I2C, OTP Yes
    5P49V6901
    VersaClock® 6 Low Power Programmable Clock Generator    		 VersaClock 6 5 HCSL, LVCMOS, LVDS, LVPECL 1 - 350 1 - 350 2 Crystal, HCSL, LVCMOS, LVDS, LVPECL 4 1.8, 2.5, 3.3 1.8, 2.5, 3.3 0.5 I2C, OTP Yes
    5P49V6913

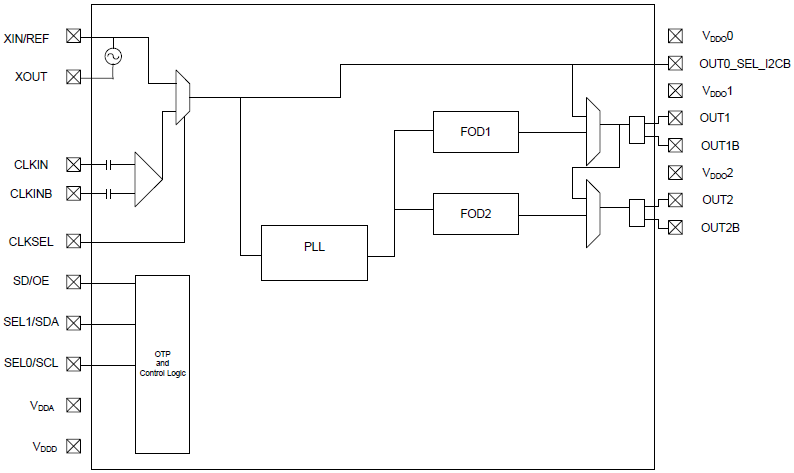

    VersaClock® 6 Low Power Programmable Clock Generator    		 VersaClock 6 3 HCSL, LVCMOS, LVDS, LVPECL 1 - 350 1 - 350 2 Crystal, HCSL, LVCMOS, LVDS, LVPECL 2 1.8, 2.5, 3.3 1.8, 2.5, 3.3 0.5 I2C, OTP Yes
    5P49V6914

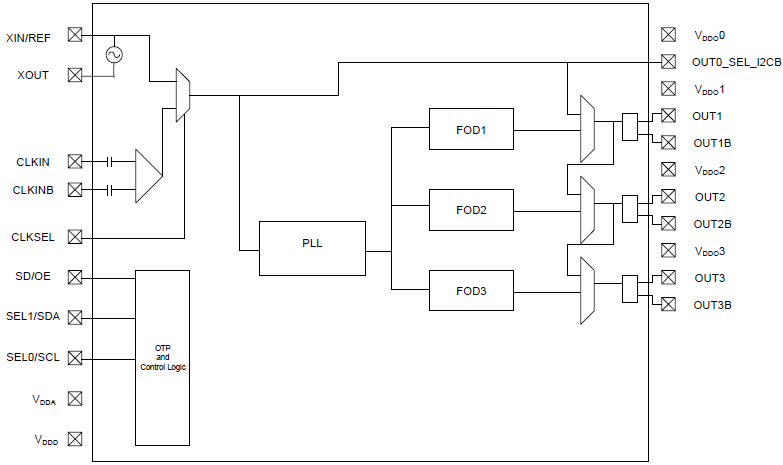

    VersaClock® 6 Low Power Programmable Clock Generator    		 VersaClock 6 4 HCSL, LVCMOS, LVDS, LVPECL 1 - 350 1 - 350 2 Crystal, HCSL, LVCMOS, LVDS, LVPECL 3 1.8, 2.5, 3.3 1.8, 2.5, 3.3 0.5 I2C, OTP Yes
    5P49V6965
    VersaClock® 6E Programmable Clock Generator    		 VersaClock 6E 5 HCSL, LVCMOS, LVDS, LVPECL 1 - 350 1 - 350 2 Crystal, HCSL, LVCMOS, LVDS, LVPECL 4 1.8, 2.5, 3.3 1.8, 2.5, 3.3 0.5 I2C, OTP Yes
    5X1503
    MicroClock Programmable Clock Generator with Embedded Crystal    		 MicroClock 3 LVCMOS 0.032768 - 100 52 1 Crystal (integrated) 1 1.8 1, 1.1, 1.2, 1.8 I2C, OTP Yes
    5X2503
    MicroClock Programmable Clock Generator with Embedded Crystal    		 MicroClock 3 LVCMOS 0.032768 - 120, 0.03 - 120 26 1 Crystal (integrated) 1 1.8 1.8 I2C, OTP Yes
    5X35023
    VersaClock® 3S Programmable Clock Generator with Integrated Crystal    		 VersaClock 3S 5 LP-HCSL, LVCMOS, LVDS, LVPECL 0.032768 - 500 25 1 Crystal (integrated) 3 3.3 1.8, 2.5, 3.3 1 I2C, OTP Yes
    8A34001
    System Synchronizer for IEEE 1588 - Eight Channels    		 ClockMatrix 24 HSTL, LVCMOS, LVDS, LVHSTL, LVPECL, LVTTL 0.0000005 - 1000 0.0000005 - 1000 16 HCSL, LVDS, LVHSTL, LVPECL, SSTL 8 2.5, 3.3 1.2, 1.5, 1.8, 2.5, 3.3 0.15 I2C, SPI No
    8A34002
    System Synchronizer for IEEE 1588 - Four Channels    		 ClockMatrix 16 HSTL, LVCMOS, LVDS, LVHSTL, LVPECL, LVTTL 0.0000005 - 1000 0.0000005 - 1000 14 HCSL, LVDS, LVHSTL, LVPECL, SSTL 4 2.5, 3.3 1.2, 1.5, 1.8, 2.5, 3.3 0.15 I2C, SPI No
    8A34003
    System Synchronizer for IEEE 1588 - Four Channels    		 ClockMatrix 8 HSTL, LVCMOS, LVDS, LVHSTL, LVPECL, LVTTL 0.0000005 - 1000 0.0000005 - 1000 4 HCSL, LVDS, LVHSTL, LVPECL, SSTL 4 2.5, 3.3 1.2, 1.5, 1.8, 2.5, 3.3 0.15 I2C, SPI No
    8A34004
    System Synchronizer for IEEE 1588 - Two Channels    		 ClockMatrix 8 HSTL, LVCMOS, LVDS, LVHSTL, LVPECL, LVTTL 0.0000005 - 1000 0.0000005 - 1000 4 HCSL, LVDS, LVHSTL, LVPECL, SSTL 4 2.5, 3.3 1.2, 1.5, 1.8, 2.5, 3.3 0.15 I2C, SPI No
    8A34005
    System Synchronizer for IEEE 1588 - Four Channels    		 ClockMatrix 24 HSTL, LVCMOS, LVDS, LVHSTL, LVPECL, LVTTL 0.0000005 - 1000 0.0000005 - 1000 4 HCSL, LVDS, LVHSTL, LVPECL, SSTL 4 2.5, 3.3 1.2, 1.5, 1.8, 2.5, 3.3 0.15 I2C, SPI No
    8A34011
    Line Card Synchronizer for IEEE 1588 - Eight Channels    		 ClockMatrix 24 HSTL, LVCMOS, LVDS, LVHSTL, LVPECL, LVTTL 0.0000005 - 1000 0.001 - 1000 16 HCSL, LVDS, LVHSTL, LVPECL, SSTL 8 2.5, 3.3 1.2, 1.5, 1.8, 2.5, 3.3 0.15 I2C, SPI No
    8A34012
    Line Card Synchronizer for IEEE 1588 - Four Channels    		 ClockMatrix 16 HSTL, LVCMOS, LVDS, LVHSTL, LVPECL, LVTTL 0.0000005 - 1000 0.001 - 1000 14 HCSL, LVDS, LVHSTL, LVPECL, SSTL 4 2.5, 3.3 1.2, 1.5, 1.8, 2.5, 3.3 0.15 I2C, SPI No
    8A34013
    Line Card Synchronizer for IEEE 1588 - Four Channels    		 ClockMatrix 8 HSTL, LVCMOS, LVDS, LVHSTL, LVPECL, LVTTL 0.0000005 - 1000 0.001 - 1000 4 HCSL, LVDS, LVHSTL, LVPECL, SSTL 4 2.5, 3.3 1.2, 1.5, 1.8, 2.5, 3.3 0.15 I2C, SPI No
    8A34041
    Multichannel DPLL / DCO - Eight Channels    		 ClockMatrix 24 HSTL, LVCMOS, LVDS, LVHSTL, LVPECL, LVTTL 0.0000005 - 1000 0.001 - 1000 16 HCSL, LVDS, LVHSTL, LVPECL, SSTL 8 2.5, 3.3 1.2, 1.5, 1.8, 2.5, 3.3 0.15 I2C, SPI No
    8A34042
    Multichannel DPLL / DCO - Four Channels    		 ClockMatrix 16 HSTL, LVCMOS, LVDS, LVHSTL, LVPECL, LVTTL 0.0000005 - 1000 0.001 - 1000 14 HCSL, LVDS, LVHSTL, LVPECL, SSTL 4 2.5, 3.3 1.2, 1.5, 1.8, 2.5, 3.3 0.15 I2C, SPI No
    8A34043
    Multichannel DPLL / DCO - Four Channels    		 ClockMatrix 8 HSTL, LVCMOS, LVDS, LVHSTL, LVPECL, LVTTL 0.0000005 - 1000 0.001 - 1000 4 HCSL, LVDS, LVHSTL, LVPECL, SSTL 4 2.5, 3.3 1.2, 1.5, 1.8, 2.5, 3.3 0.15 I2C, SPI No
    8A34044
    Multichannel DPLL / DCO - Four / Eight Channels    		 ClockMatrix 24 HSTL, LVCMOS, LVDS, LVHSTL, LVPECL, LVTTL 0.0000005 - 1000 0.001 - 1000 8 HCSL, LVDS, LVHSTL, LVPECL, SSTL 8 2.5, 3.3 1.2, 1.5, 1.8, 2.5, 3.3 0.15 I2C, SPI No
    8A34045
    Multichannel DPLL / DCO - Two / Eight Channels    		 ClockMatrix 24 HSTL, LVCMOS, LVDS, LVHSTL, LVPECL, LVTTL 0.0000005 - 1000 0.001 - 1000 4 HCSL, LVDS, LVHSTL, LVPECL, SSTL 8 2.5, 3.3 1.2, 1.5, 1.8, 2.5, 3.3 0.15 I2C, SPI No
    8T49N004I
    Programmable FemtoClock™ NG LVPECL/LVDS Clock Generator with 4-Outputs    		 FemtoClock NG 4 LVDS, LVPECL 15.16 - 1250 10 - 312.5 2 Crystal, HCSL, LVDS, LVPECL 1 2.5, 3.3 2.5, 3.3 0.212 I2C No
    8T49N006I
    Programmable FemtoClock™ NG LVPECL/LVDS Clock Generator with 6-Outputs    		 FemtoClock NG 6 LVDS, LVPECL 15.16 - 1250 10 - 312.5 2 Crystal, HCSL, LVDS, LVPECL 1 2.5, 3.3 2.5, 3.3 0.212 I2C No
    8T49N008I
    Programmable FemtoClock™ NG LVPECL/LVDS Clock Generator with 8-Outputs    		 FemtoClock NG 8 LVDS, LVPECL 15.16 - 1250 10 - 312.5 2 Crystal, HCSL, LVDS, LVPECL 1 2.5, 3.3 2.5, 3.3 0.212 I2C No
    8T49N012I
    FemtoClock™ NG Crystal-to-3.3V, 2.5V LVPECL/LVCMOS Clock Generator with Fanout Buffer    		 FemtoClock NG 12 CMOS, LVPECL 15.16 - 1250 10 - 312.5 2 Crystal, HCSL, LVDS, LVPECL 3 2.5, 3.3 2.5, 3.3 0.19 No
    8T49N028
    Crystal-to-3.3V, 2.5V Multiple Frequency Clock Generator with Fanout Buffer    		 FemtoClock NG 8 LVDS, LVPECL 15.16 - 1250 10 - 312.5 2 Crystal, HCSL, LVDS, LVPECL 4 2.5, 3.3 2.5, 3.3 0.212 I2C No
    8T49N240
    FemtoClock™ NG Universal Frequency Translator    		 UFT (Gen 3) 4 HCSL, LVCMOS, LVDS, LVPECL 0.008 - 1000 0.008 - 875 2 HCSL, LVCMOS, LVDS, LVHSTL, LVPECL, LVTTL 4 2.5, 3.3 1.8, 2.5, 3.3 0.2 I2C No
    8T49N241
    FemtoClock™ NG Universal Frequency Translator    		 UFT (Gen 3) 4 HCSL, LVCMOS, LVDS, LVPECL 0.008 - 1000 0.008 - 875 2 HCSL, LVCMOS, LVDS, LVHSTL, LVPECL, LVTTL 4 2.5, 3.3 1.8, 2.5, 3.3 0.35 I2C No
    8T49N242
    FemtoClock™ NG Universal Frequency Translator    		 UFT (Gen 3) 4 HCSL, LVCMOS, LVDS, LVPECL 0.008 - 1000 0.008 - 875 2 HCSL, LVCMOS, LVDS, LVHSTL, LVPECL, LVTTL 4 2.5, 3.3 1.8, 2.5, 3.3 0.276 I2C No
    8T49N285
    FemtoClock NG Universal Frequency Translator (2-in/1-PLL/8-out)    		 UFT (Gen 3) 8 HCSL, LVCMOS, LVDS, LVPECL 0.008 - 1000 0.008 - 875 2 HCSL, LVCMOS, LVDS, LVHSTL, LVPECL 4 2.5, 3.3 1.8, 2.5, 3.3 0.28 I2C, SPI No
    8T49N286
    FemtoClock NG Universal Frequency Translator (4-in/2-PLL/8-out)    		 UFT (Gen 3) 8 HCSL, LVCMOS, LVDS, LVPECL 0.008 - 1000 0.008 - 875 4 HCSL, LVCMOS, LVDS, LVHSTL, LVPECL, LVTTL 4 2.5, 3.3 2.5, 3.3 0.28 I2C, SPI No
    8T49N287
    FemtoClock NG Universal Frequency Translator (2-in/2-PLL/8-out)    		 UFT (Gen 3) 8 HCSL, LVCMOS, LVDS, LVPECL 0.008 - 1000 0.008 - 875 2 HCSL, LVCMOS, LVDS, LVHSTL, LVPECL, LVTTL 4 2.5, 3.3 2.5, 3.3 0.28 I2C No
    8T49N366I
    FemtoClock NG Triple Universal Frequency Translator    		 UFT 6 LVDS, LVPECL 0.98 - 1300 0.008 - 710 7 HCSL, LVCMOS, LVDS, LVHSTL, LVPECL, LVTTL 3 2.5 2.5 0.333 I2C Yes
    8V41NS0412
    FemtoClock™ NG 12-Output Clock Generator    		 FemtoClock Clock Generator 12 HCSL 10.91 - 2500 5 - 1000 2 Crystal, HCSL, HSTL, LVCMOS, LVDS, LVHSTL, LVPECL 4 3.3 3.3 0.095 I2C No
    8V49NS0312
    FemtoClock™ NG 12-Output Clock Generator    		 FemtoClock Clock Generator 12 LVDS, LVPECL 10.91 - 2500 5 - 1000 2 Crystal, HCSL, HSTL, LVCMOS, LVDS, LVHSTL, LVPECL 4 3.3 3.3 0.089 I2C No
    8V49NS0412
    FemtoClock™ NG 12-Output Clock Generator    		 FemtoClock Clock Generator 12 LVDS, LVPECL 10.91 - 2500 5 - 1000 2 Crystal, HCSL, HSTL, LVCMOS, LVDS, LVHSTL, LVPECL 4 3.3 3.3 0.08 I2C No
    RC210
    VersaClock® 7 可编程时钟產生器系列    		 VersaClock® 7 16, 24 LP-HCSL, LVCMOS, LVDS 0.001 - 650 1 - 650 4 Crystal, LP-HCSL, LVCMOS, LVDS 6 1.8, 2.5, 3.3 1.8, 2.5, 3.3 0.15 EEPROM, I2C, OTP, SMBUS, SPI Yes
    RC22504A
    FemtoClock™ 2 Clock Generator    		 FemtoClock Clock Generator 4 HCSL, LVCMOS, LVDS 10 - 1000 25 - 312.5 2 Crystal, HCSL, LVCMOS, LVDS 4 1.8, 3.3 1.8 0.079 I2C, SPI No
    RC22514A
    FemtoClock™ 2 Clock Generator    		 FemtoClock Clock Generator 4 HCSL, LVCMOS, LVDS 10 - 1000 0 4 1.8, 3.3 1.8 0.079 I2C, SPI No
    RC32504A
    FemtoClock™ 2 Jitter Attenuator or Clock Generator    		 FemtoClock Clock Generator 4 HCSL, LVCMOS, LVDS 10 - 1000 5 - 1000 3 Crystal, HCSL, LVCMOS, LVDS 4 1.8, 3.3 1.8 0.079 I2C, SPI No
    RC32508A
    FemtoClock 2 Jitter Attenuator or Clock Generator    		 8 HCSL, LVCMOS, LVDS 10 - 1000 1 - 800 3 Crystal, HCSL, LVCMOS, LVDS 8 1.8, 3.3 1.8 0.067 I2C, SPI No
    RC32514A
    FemtoClock™ 2 Jitter Attenuator or Clock Generator    		 FemtoClock Clock Generator 4 HCSL, LVCMOS, LVDS 10 - 1000 1 - 800 3 Crystal, HCSL, LVCMOS, LVDS 4 1.8, 3.3 1.8 0.079 I2C, SPI No
    RC32614A
    System Synchronizer for IEEE 1588 - Six Channels    		 ClockMatrix 24 HSTL, LVCMOS, LVDS, LVHSTL, LVPECL, LVTTL 0.0000005 - 1000 0.0000005 - 1000 8 HCSL, LVDS, LVHSTL, LVPECL, SSTL 8 2.5, 3.3 1.2, 1.5, 1.8, 2.5, 3.3 0.1 I2C, SPI No
    Parametric Table tips

    Tips for Using This Parametric Table:

    • Hide Filters button in header: Collapse or expands filters
    • Column sort buttons in header: Sort Column alphabetically / numerically descending or ascending
    • Reset button in header: Reset all filters to the page default
    • Full Screen button in header: Expand the table to full screen view (user must close out of full screen before they can interact with rest of page)
    • Export button in header: Export the filtered results of the table to an Excel document
    • Filter parts search bar in header: Type to filter table results by part number
    • Hide column button in column headers: Select to hide columns in table
    • AND / OR toggle switches in header: Toggles the logic of this particular filter to be “AND” or “OR” logic for filtering results
    • Multiselect checkboxes at beginning of each row in table: Select these checkboxes to compare products against each other
    • Document icon next to product name in row: View the featured document for this product
    • Chip icon next to the right of the document icon in row: View the block diagram for this product
    • Cart icon to the right of the chip icon: Indicates that samples are available for this product
