接口&连接

瑞萨电子可为数据中心应用中的光纤网络提供综合而全面的线性与限幅光学跨阻放大器 (TIA) 及驱动器调制器产品组合。集成后级放大器 (TIA+PA) 的 瑞萨电子低功耗跨阻放大器可提供高性能、高数据速率、低功耗及低辐射等优异特性。瑞萨电子的 TIA+PA 接收器阵列可实现芯片间、电路板间以及系统之间的光学互连，不仅能消除铜缆的约束，而且还能在显著降低 EMI 和功耗的同时实现更高的数据速率。

产品选型表

    Processing table
    Function
    Data Rate Max (Gbps)
    Channels (#)
    Application
    器件号
    CCG1401
    Programmable Transimpedance Amplifier    		 Optical sensors
    HXR14100
    56Gb/s Linear TIA Receiver    		 Linear TIA 56 1 50G Ethernet SR, SFP56-SR
    HXR14400
    56Gb/s Linear TIA Receiver    		 Linear TIA 56 4 200G Ethernet SR4, QSFP56 SR4

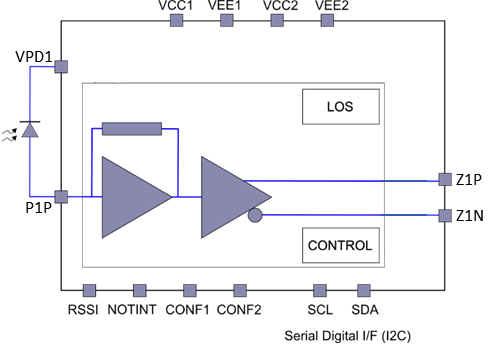

    HXR44100
    Single Channel 28Gbaud Linear TIA 10Km    		 Linear TIA 56 1 25G EDR InfiniBand, 25G Ethernet LR, 32G Fibre Channel, SFP28

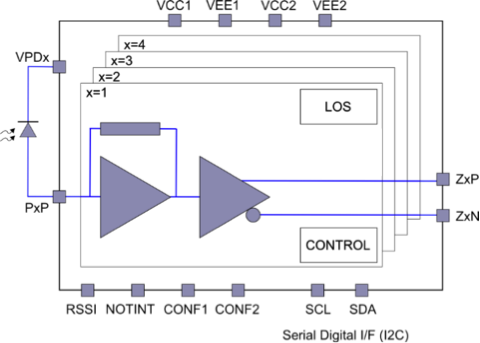

    HXR44400
    56Gb/s Linear TIA Receiver    		 Linear TIA 56 4 200G Ethernet LR4, QSFP56
    HXR45100
    56Gb/s and 112Gb/s Linear TIA Receiver    		 TIA 112 1 50G Ethernet, 100G Ethernet, SFP56, SFP112
    HXR45400
    56Gb/s and 112Gb/s Linear TIA Receiver    		 TIA 112 4 200G Ethernet LR4, 400G Ethernet LR4, OSFP LR4, QSFP-DD

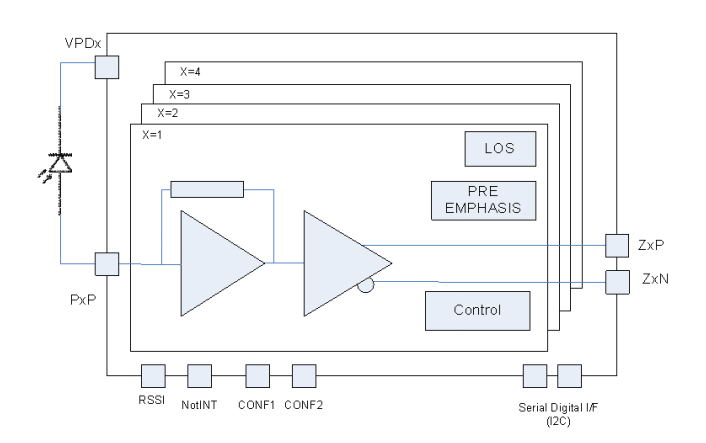

    HXR5104B
    14Gb/s Limited TIA Receiver    		 Linear TIA 14 4 32G QDR/55G FDR InfiniBand, 40G Ethernet LR4, QSFP+

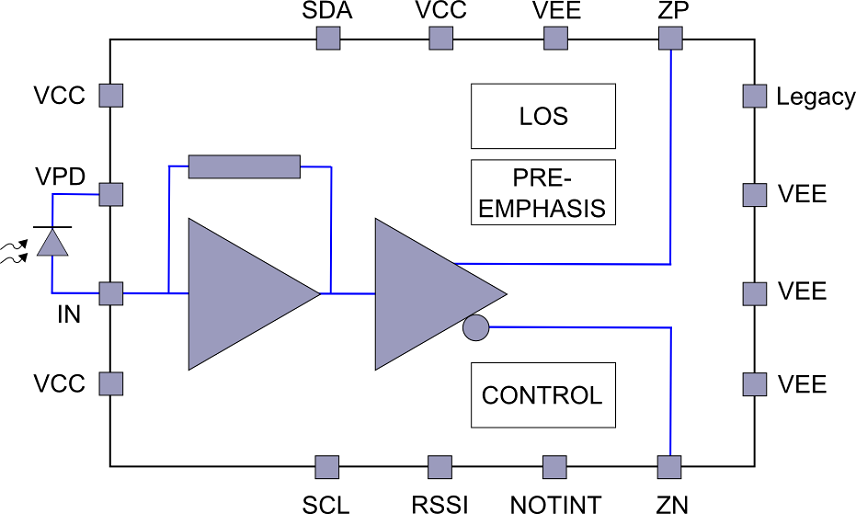

    HXR6101
    16Gb/s Limited TIA Receiver    		 Linear TIA 16 1 10G Ethernet SR/LR, 14G FDR InfiniBand, 16G Fibre Channel, SFP+
    HXR6104
    16Gb/s Limited TIA Receiver    		 Linear TIA 16 4 32G QDR/55G FDR InfiniBand, 40G Ethernet SR4, QSFP+
    HXR6112
    16Gb/s Limited TIA Receiver    		 Linear TIA 16 12 100G Ethernet SR10, 164G FDR InfiniBand, CXP
    HXR8204
    28Gb/s Limited TIA Receiver    		 Linear TIA 28 4 100G Ethernet SR4, EDR InfiniBand Transceivers and AOCs, QSFP28
    HXR8212
    28Gb/s Limited TIA Receiver    		 Linear TIA 28 12 100G EDR InfiniBand, 100G Ethernet SR4, QSFP28
