储存器和逻辑器件

Renesas EEPROM realizes high-speed, low power consumption and a high level of reliability by employing advanced MONOS memory technology, CMOS process and low voltage circuitry technology.

Serial EEPROM Features

  • Standard serial interface, I2C (2-wire system) path, SPI path direct connection with the microcomputer is possible
  • Data security function, write protection terminal, software write protection, improved data reliability
  • Wide operating voltage range of 1.8V - 5.5V corresponds to various types of system power
  • Wide temperature range of -40 °C - +85 °C, also supports hand-held machines
  • Supports high-speed mode 400kHz - 1MHz (I2C bus) 3MHz - 5MHz (SPI path) reading of high-speed data possible
  • Compact package, SOP-8/TSSOP-8, -14, set miniaturization

Applications

  • Cellular phone/Cordless phone/Fax: speed dialer, communication history management
  • TV/VTR/Remote control: channel, mode setting
  • Telephone switchboard, measurement equipment: application software, log data storage
  • Home electronic appliances: fine-tuning, managing usage history

产品选型表

    Processing table
    PLP
    Family Name
    Memory Capacity (kbit)
    Organization (bit)
    Organization (kword)
    Access Time (ns)
    Interface
    Clock frequency (Hz)
    Supply Voltage (V)
    Pkg. Type
    Remarks
    Application
    器件号
    HN58X25128FPIAG
    Serial Peripheral Interface 128k EEPROM (16-kword × 8-bit) 256k EEPROM (32-kword × 8-bit)    		 2032 12月 Serial EEPROM 128 x 8 3000000 1.8 - 5.5 SOP Industrial
    HN58X25256FPIAG
    Serial Peripheral Interface 128k EEPROM (16-kword × 8-bit) 256k EEPROM (32-kword × 8-bit)    		 2032 12月 Serial EEPROM 256 x 8 5000000 1.8 - 5.5 SOP Industrial
    R1EX24002ASAS0I
    Two-wire serial interface 2k EEPROM (256-word x 8-bit)    		 2032 12月 Serial EEPROM 2 x 8 0.256 400000 1.8 - 5.5 SOP Industrial
    R1EX24002ATAS0I
    Two-wire serial interface 2k EEPROM (256-word x 8-bit)    		 2032 12月 Serial EEPROM 2 x 8 0.256 400000 1.8 - 5.5 TSSOP Industrial
    R1EX24004ASAS0I
    Two-wire serial interface 4k EEPROM (512-word × 8-bit)    		 2032 12月 Serial EEPROM 4 x 8 0.512 400000 1.8 - 5.5 SOP Industrial
    R1EX24004ATAS0I
    Two-wire serial interface 4k EEPROM (512-word × 8-bit)    		 2032 12月 Serial EEPROM 4 x 8 0.512 400000 1.8 - 5.5 TSSOP Industrial
    R1EX24008ASAS0I
    Two-wire serial interface 8k EEPROM (1024-word x 8-bit)    		 2032 12月 Serial EEPROM 8 x 8 1 400000 1.8 - 5.5 SOP Industrial
    R1EX24008ATAS0I
    Two-wire serial interface 8k EEPROM (1024-word x 8-bit)    		 2030 3月, 2032 12月 Serial EEPROM 8 x 8 1 400000 1.8 - 5.5 TSSOP Industrial
    R1EX24016ASAS0I
    Two-wire serial interface 16k EEPROM (2-kword × 8-bit)    		 2032 12月 Serial EEPROM 16 x 8 2 400000 1.8 - 5.5 SOP Industrial
    R1EX24016ATAS0I
    Two-wire serial interface 16k EEPROM (2-kword × 8-bit)    		 2032 12月 Serial EEPROM 16 x 8 2 400000 1.8 - 5.5 TSSOP Industrial
    R1EX24032ASAS0I
    Two-wire serial interface 32k EEPROM (4-kword × 8-bit)    		 2032 12月 Serial EEPROM 32 x 8 4 400000 1.8 - 5.5 SOP Industrial
    R1EX24032ATAS0I
    Two-wire serial interface 32k EEPROM (4-kword × 8-bit)    		 2032 12月 Serial EEPROM 32 x 8 4 400000 1.8 - 5.5 TSSOP Industrial
    R1EX24064ASAS0I
    Two-wire serial interface 64k EEPROM (8-kword × 8-bit)    		 2032 12月 Serial EEPROM 64 x 8 8 400000 1.8 - 5.5 SOP Industrial
    R1EX24064ATAS0I
    Two-wire serial interface 64k EEPROM (8-kword × 8-bit)    		 2030 3月, 2032 12月 Serial EEPROM 64 x 8 8 400000 1.8 - 5.5 TSSOP Industrial
    R1EX24128BSAS0I
    Two-wire serial interface 128k EEPROM (16-kword × 8-bit)    		 2032 12月 Serial EEPROM 128 x 8 16 400000 1.8 - 5.5 SOP Industrial
    R1EX24128BTAS0I
    Two-wire serial interface 128k EEPROM (16-kword × 8-bit)    		 2032 12月 Serial EEPROM 128 x 8 16 400000 1.8 - 5.5 TSSOP Industrial
    R1EX24256BSAS0I
    Two-wire serial interface 256k EEPROM (32-kword × 8-bit)    		 2032 12月 Serial EEPROM 256 x 8 32 400000 1.8 - 5.5 SOP Industrial
    R1EX24256BTAS0I
    Two-wire serial interface 256k EEPROM (32-kword × 8-bit)    		 2032 12月 Serial EEPROM 256 x 8 32 400000 1.8 - 5.5 TSSOP Industrial
    R1EX24512BSAS0I
    Two-wire serial interface 512k EEPROM (64-kword × 8-bit)    		 2032 12月 Serial EEPROM 512 x 8 64 400000 1.8 - 5.5 SOP Industrial
    R1EX24512BTAS0I
    Two-wire serial interface 512k EEPROM (64-kword × 8-bit)    		 2030 3月, 2032 12月 Serial EEPROM 512 x 8 64 400000 1.8 - 5.5 TSSOP Industrial
    R1EX25002ASA00I
    Serial Peripheral Interface 2k EEPROM (256-word × 8-bit) 4k EEPROM (512-word × 8-bit)    		 2032 12月 Serial EEPROM 2 x 8 0.256 3000000 1.8 - 5.5 SOP Industrial
    R1EX25002ATA00I
    Serial Peripheral Interface 2k EEPROM (256-word × 8-bit) 4k EEPROM (512-word × 8-bit)    		 2032 12月 Serial EEPROM 2 x 8 0.256 5000000 1.8 - 5.5 TSSOP Industrial
    R1EX25004ASA00I
    Serial Peripheral Interface 2k EEPROM (256-word × 8-bit) 4k EEPROM (512-word × 8-bit)    		 2032 12月 Serial EEPROM 4 x 8 0.512 3000000 1.8 - 5.5 SOP Industrial
    R1EX25004ATA00I
    Serial Peripheral Interface 2k EEPROM (256-word × 8-bit) 4k EEPROM (512-word × 8-bit)    		 2032 12月 Serial EEPROM 4 x 8 0.512 5000000 1.8 - 5.5 TSSOP Industrial
    R1EX25008ASA00I
    Serial Peripheral Interface 8k EEPROM (1024-word × 8-bit) 16k EEPROM (2048-word × 8-bit)    		 2032 12月 Serial EEPROM 8 x 8 1 3000000 1.8 - 5.5 SOP Industrial
    R1EX25008ATA00I
    Serial Peripheral Interface 8k EEPROM (1024-word × 8-bit) 16k EEPROM (2048-word × 8-bit)    		 2032 12月 Serial EEPROM 8 x 8 1 5000000 1.8 - 5.5 TSSOP Industrial
    R1EX25016ASA00I
    Serial Peripheral Interface 8k EEPROM (1024-word × 8-bit) 16k EEPROM (2048-word × 8-bit)    		 2032 12月 Serial EEPROM 16 x 8 2 3000000 1.8 - 5.5 SOP Industrial
    R1EX25016ATA00I
    Serial Peripheral Interface 8k EEPROM (1024-word × 8-bit) 16k EEPROM (2048-word × 8-bit)    		 2032 12月 Serial EEPROM 16 x 8 2 5000000 1.8 - 5.5 TSSOP Industrial
    R1EX25032ASA00I
    Serial Peripheral Interface 32k EEPROM (4-kword × 8-bit) 64k EEPROM (8-kword × 8-bit)    		 2032 12月 Serial EEPROM 32 x 8 4 3000000 1.8 - 5.5 SOP Industrial
    R1EX25032ATA00I
    Serial Peripheral Interface 32k EEPROM (4-kword × 8-bit) 64k EEPROM (8-kword × 8-bit)    		 2032 12月 Serial EEPROM 32 x 8 4 5000000 1.8 - 5.5 TSSOP Industrial
    R1EX25064ASA00I
    Serial Peripheral Interface 32k EEPROM (4-kword × 8-bit) 64k EEPROM (8-kword × 8-bit)    		 2032 12月 Serial EEPROM 64 x 8 8 3000000 1.8 - 5.5 SOP Industrial
    R1EX25064ATA00I
    Serial Peripheral Interface 32k EEPROM (4-kword × 8-bit) 64k EEPROM (8-kword × 8-bit)    		 2030 3月, 2032 12月 Serial EEPROM 64 x 8 8 5000000 1.8 - 5.5 TSSOP Industrial
    R1EX25512ASA00I
    Serial Peripheral Interface 512K EEPROM (64-Kword × 8-bit)    		 2032 12月 Serial EEPROM 512 x 8 64 3000000 1.8 - 5.5 SOP Industrial
    R1EX25512ATA00I
    Serial Peripheral Interface 512K EEPROM (64-Kword × 8-bit)    		 2032 12月 Serial EEPROM 512 x 8 64 5000000 1.8 - 5.5 TSSOP Industrial

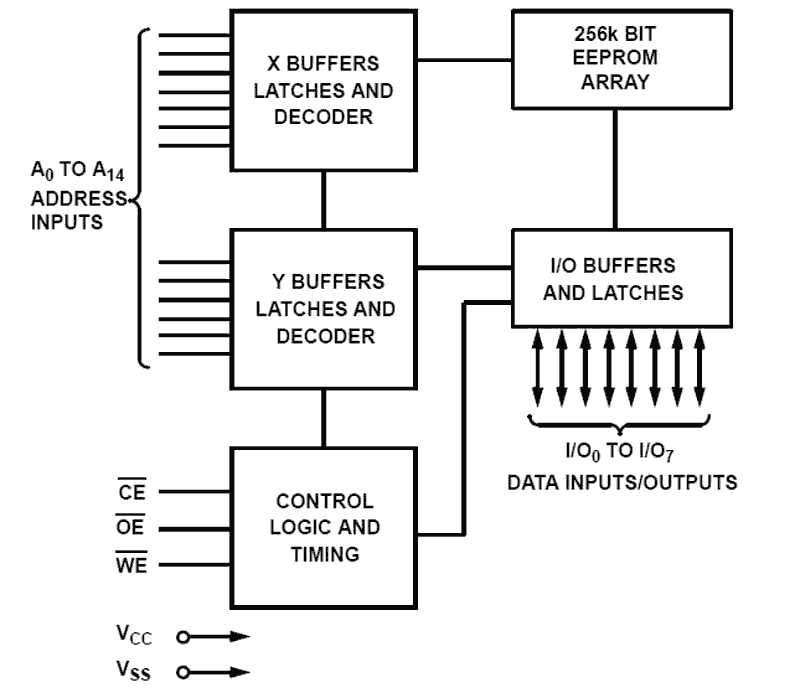

    X28HC256
    256K, 32K x 8 Bit; 5 Volt, Byte Alterable EEPROM    		 N/A Byte Alterable EEPROM 256 x 8 32 120, 150, 90, 89 Parallel 4.5 - 5.5 PDIP, PLCC
    X28HC64
    64k, 8k x 8 Bit; 5 Volt, Byte Alterable EEPROM    		 N/A Byte Alterable EEPROM 64 x 8 32 120, 90, 70 Parallel 4.5 - 5.5 PDIP, PLCC, SOICW
