电源管理

Renesas' low-side FET drivers are very high-speed matched dual drivers capable of delivering peak currents into highly capacitive loads and are excellent at driving large capacitive loads with minimal delay and switching times.

产品选型表

    Processing table
    PLP
    Drivers (#)
    Input Voltage (Max) (V)
    Peak Output Current IPK (A)
    Rise Time (μs)
    Fall Time
    Turn On Delay (ns)
    Turn Off Delay (ns)
    IS (mA)
    Input Supply Range (V)
    Output Signal Range
    Input Signal Range
    Lead Count (#)
    Pkg. Type
    Simulation Model Available
    器件号
    EL7104
    High Speed, Single Channel, Power MOSFET Driver    		 2033 12月 1 16 4 10 0.015 18 18 7.5 4.5 - 16 -3 to +16 0 to 16 8 PDIP, SOICN

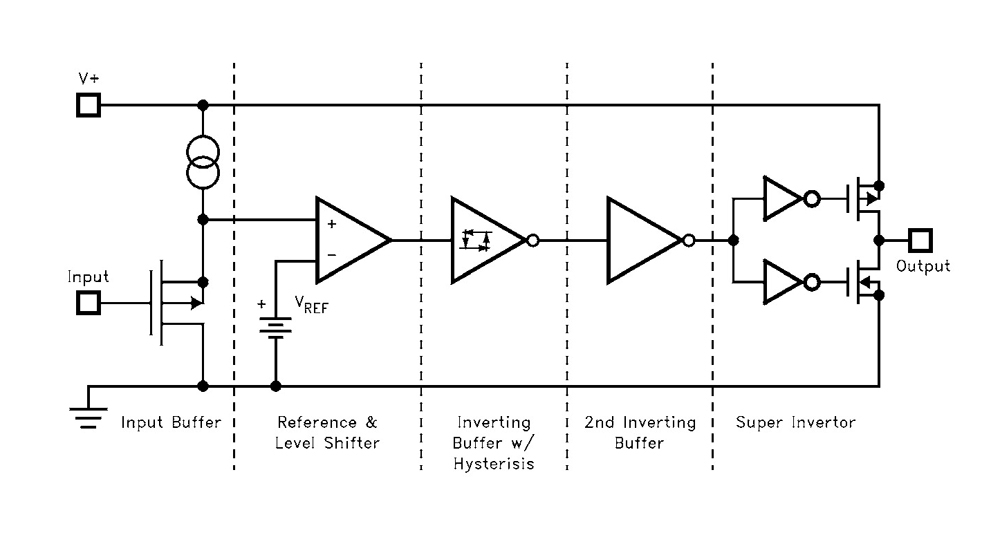

    EL7202
    High Speed, Dual Channel Power MOSFET Drivers    		 2033 12月 2 15 2 10 0.013 18 20 7.5 4.5 - 15 0 to +15 0 to 15 8 SOICN
    EL7212
    High Speed, Dual Channel Power MOSFET Drivers    		 2033 12月 2 15 2 10 0.013 18 20 2.5 4.5 - 15 0 to +15 0 to 15 8 PDIP, SOICN
    EL7222
    High Speed, Dual Channel Power MOSFET Drivers    		 N/A 2 15 2 10 0.013 18 20 5 4.5 - 15 0 to +15 0 to 15 8 SOICN

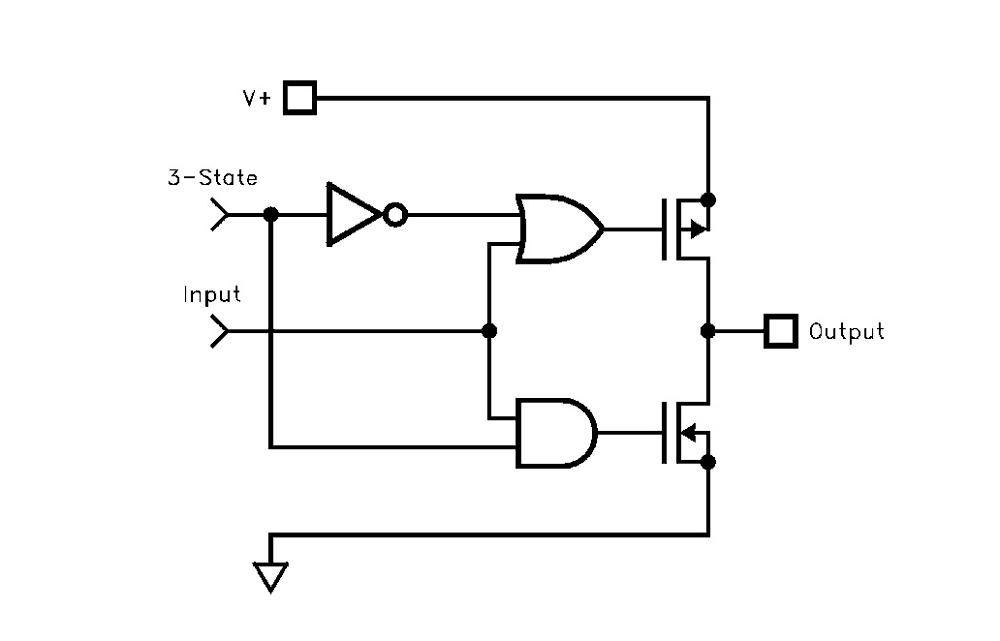

    EL7232
    Dual Channel, High Speed, High Current Line Driver with 3-State    		 N/A 2 15 2 10 0.013 18 20 2.5 4.5 - 15 0 to +15 0 to 15 8 SOICN
    EL7242
    Dual Input, High Speed, Dual Channel Power MOSFET Driver    		 N/A 2 15 2 20 0.02 20 20 3 4.5 - 15 0 to +15 0 to 15 8 SOICN
    EL7252
    Dual Input, High Speed, Dual Channel Power MOSFET Driver    		 N/A 2 15 2 20 0.02 18 20 2.5 4.5 - 15 0 to +16.5 0 to 16.5 8 SOICN

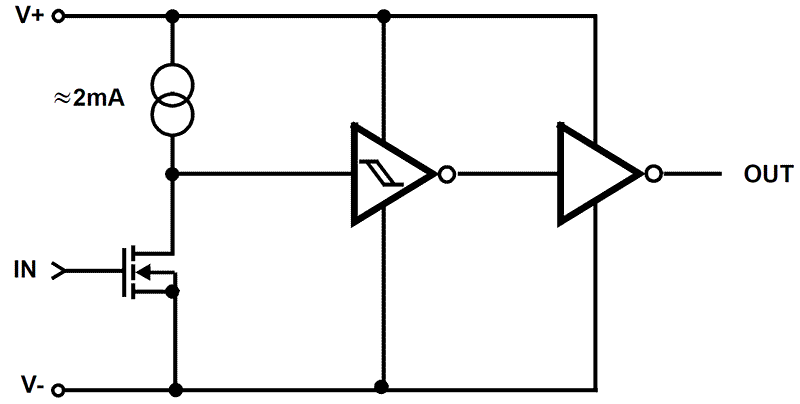

    ICL7667
    Dual Power MOSFET Driver    		 N/A 2 15 1 30 0.03 20 20 5 -15 - 15 -15 to +15 -VP to 15 8 PDIP, SOICN
    ISL89163
    High Speed, Dual Channel, 6A, Power MOSFET Driver with Enable Inputs    		 N/A 2 16 6 20 0.02 25 25 5 4.5 - 16 0 to +16 0 to 16 8 SOICN-EP, TDFN
    ISL89164
    High Speed, Dual Channel, 6A, Power MOSFET Driver with Enable Inputs    		 N/A 2 16 6 20 0.02 25 25 5 4.5 - 16 0 to +16 0 to 16 8 SOICN-EP, TDFN
    ISL89165
    High Speed, Dual Channel, 6A, Power MOSFET Driver with Enable Inputs    		 N/A 2 16 6 20 0.02 25 25 5 4.5 - 16 0 to +16 0 to 16 8 SOICN-EP, TDFN
    ISL89410
    High Speed, Dual Channel Power MOSFET Drivers    		 N/A 2 18 2 10 0.013 18 20 4.5 4.5 - 18 0 to +18 0 to 18 8 SOICN
    ISL89411
    High Speed, Dual Channel Power MOSFET Drivers    		 N/A 2 18 2 10 0.013 18 20 1 4.5 - 18 0 to +18 0 to 18 8 SOICN
    ISL89412
    High Speed, Dual Channel Power MOSFET Drivers    		 N/A 2 18 2 10 0.013 18 20 2.5 4.5 - 18 0 to +18 0 to 18 8 SOICN
    Parametric Table tips

    Tips for Using This Parametric Table:

    • Hide Filters button in header: Collapse or expands filters
    • Column sort buttons in header: Sort Column alphabetically / numerically descending or ascending
    • Reset button in header: Reset all filters to the page default
    • Full Screen button in header: Expand the table to full screen view (user must close out of full screen before they can interact with rest of page)
    • Export button in header: Export the filtered results of the table to an Excel document
    • Filter parts search bar in header: Type to filter table results by part number
    • Hide column button in column headers: Select to hide columns in table
    • AND / OR toggle switches in header: Toggles the logic of this particular filter to be “AND” or “OR” logic for filtering results
    • Multiselect checkboxes at beginning of each row in table: Select these checkboxes to compare products against each other
    • Document icon next to product name in row: View the featured document for this product
    • Chip icon next to the right of the document icon in row: View the block diagram for this product
    • Cart icon to the right of the chip icon: Indicates that samples are available for this product

    文档

    文档标题
    类型     		日期
    AN1681: Grounding Techniques
    PDF 509 KB     		应用文档
    AN1684: Nonideality of Ground
    PDF 397 KB     		应用文档
    AN1116: CMOS Applications Information
    PDF 576 KB     		应用文档
    AN1093: Current Boosted and DC Stabilized Half Bridge Driver
    PDF 231 KB     		应用文档
    AN1108: Applying Power MOSFET Drivers
    PDF 236 KB     		应用文档
    AN9301: High Current Logic Level MOSFET Driver
    PDF 353 KB     		应用文档
    TB458: Converting a Fixed PWM to an Adjustable PWM
    PDF 315 KB     		其他
    7 items
