电源管理

Renesas' power management ICs (PMICs) are integrated circuits that perform various functions related to the power requirements of a host system. A PMIC may have a combination of the following functions: DC/DC conversion, battery charging, linear regulation, power sequencing, and other miscellaneous system power functions.

产品选型表

    Processing table
    Function
    Outputs (#)
    Input Voltage Range (V)
    Switching Regulators
    Switching Frequency (MHz)
    GPIOs (#)
    Comm. Interface
    Lead Count (#)
    Pkg. Type
    Advanced Features
    器件号
    DA6102

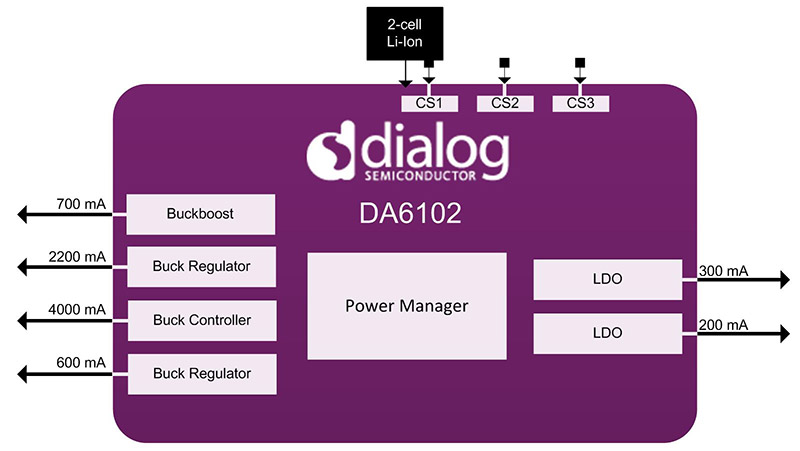

    6-Channel High-Efficiency PMIC For 2-Cell Systems    		 6-ch PMIC 6 4.5 - 11.5 3 I2C 56 WLCSP 2 external LDO monitors, 2 load switch controllers
    DA9061
    PMIC Designed for Applications Requiring up to 6A Continuous Current    		 7-ch PMIC 7 2.8 - 5.5 3 3 5 I2C 40 40-QFN
    Programmable Sequencing and more...
    DA9062
    Designed for Applications Requiring up to 8.5 A    		 8-ch PMIC 8 2.8 - 5.5 4 3 5 I2C 40 40-QFN
    Programmable Sequencing and more...
    DA9063

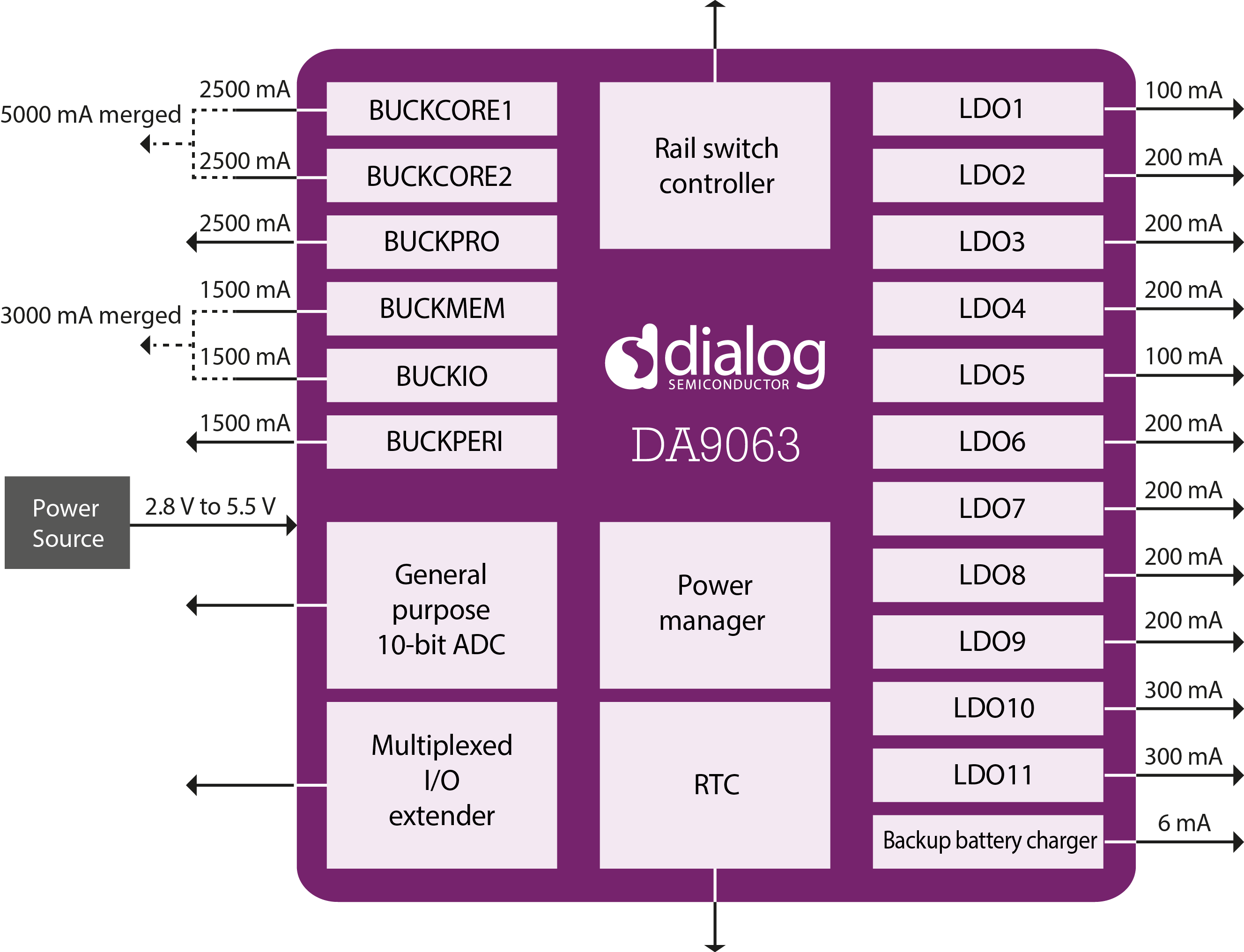

    Programmable PMIC for Quad-Core Application Processors    		 17-ch PMIC 17 2.8 - 5.5 6 3 16 I2C & SPI 100 100-BGA
    10 bit ADC, DDR VTT_REF, RTC with coin cell/supercap charger and more...
    DA9063L
    PMIC for Applications providing up to 12 A Continuous Current    		 11-ch PMIC 11 2.8 - 5.5 6 3 16 I2C 100 100-BGA
    10 bit ADC, DDR VTT_REF, programmable sequencing and more...
    DA9080

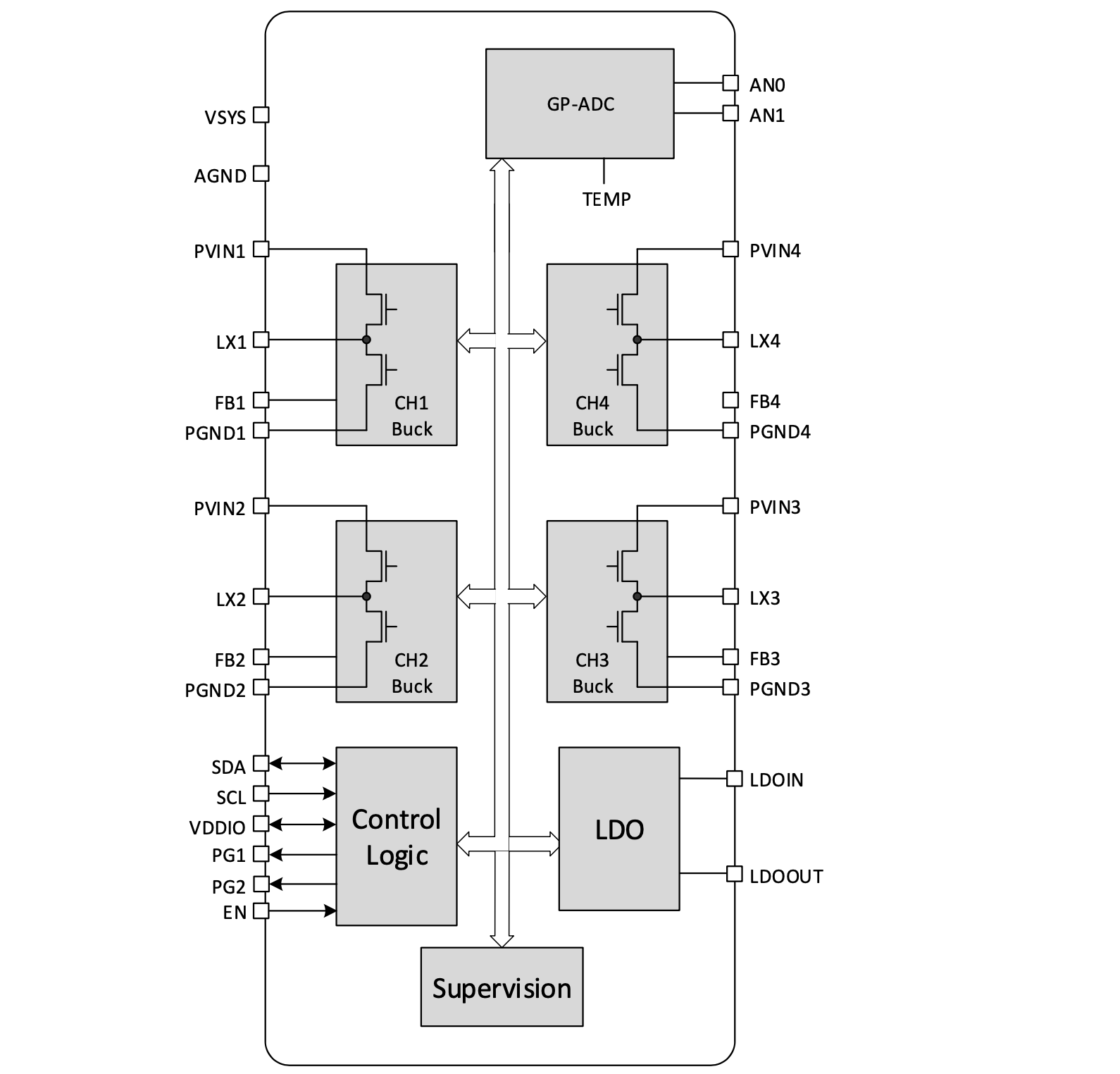

    Highly Integrated PMIC with 4 Bucks, 1 LDO & 8-Bit ADC in a QFN Package    		 5-ch PMIC 5 4 - 5.5 4 I2C 32 QFN-32 8 bit ADC
    DA9083
    Six-channel Configurable System Power Management IC    		 6-ch PMIC 6 2.9 - 5.5 4 I2C 36 36-WLCSP 4A Load Switch
    DA9121
    Configurable, 10A Dual-Phase Sub-PMIC for High-Performance Mobile Processors and Memory    		 1-ch PMIC 1 2.5 - 5.5 1 5 I2C 24 24 WLCSP
    DA9122

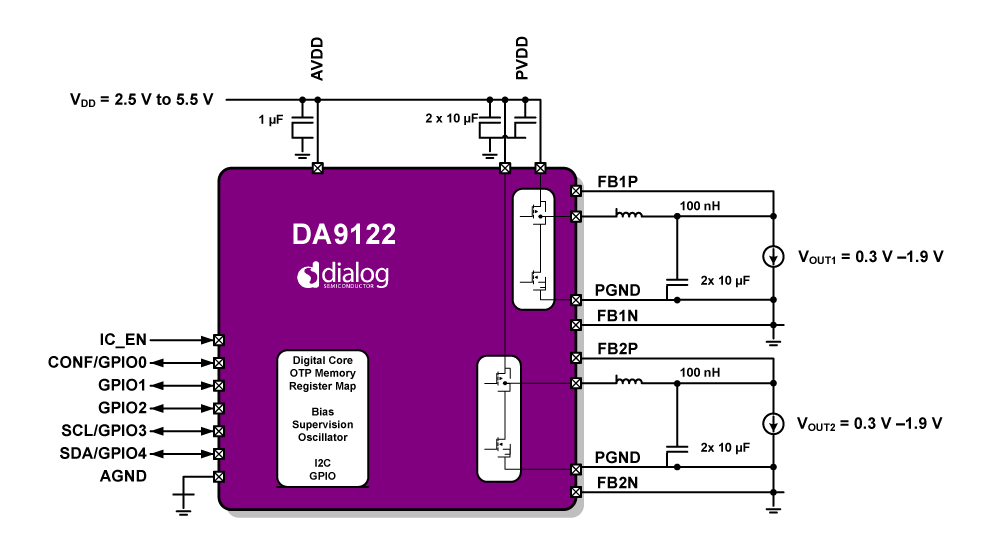

    Configurable, Dual-Output 5A + 5A Sub-PMIC for High-Performance Mobile Processors and Memory    		 2-ch PMIC 2 2.5 - 5.5 2 5 I2C 24 WLCSP
    DA9130
    High-Efficiency, 10A, Dual-Phase, Step-Down DC/DC Converter (Buck)    		 1-ch PMIC 1 2.8 - 5.5 1 4 5 I2C 24 24-WFQFN 10A dual phase, Integrated FETs. Output voltage 0.3V – 1.9V
    DA9131
    High-Efficiency, Dual-Channel (5A per Channel), Step-Down DC/DC Converter (Buck)    		 2-ch PMIC 2 2.8 - 5.5 1 4 5 I2C 24 24-WFQFN Dual 5A single phase, Integrated FETs. Output voltage 0.3V – 1.9V
    DA9132
    High-Efficiency, Dual-Channel (3A per Channel), Step-Down DC/DC Converter (Buck)    		 2-ch PMIC 2 2.8 - 5.5 1 4 5 I2C 24 24-WFQFN Dual 3A single phase, Integrated FETs. Output voltage 0.3V – 1. 9V
    DA9141
    High-Efficiency, High Current, Quad-Phase, Step-Down DC/DC Converter (Buck) PMIC    		 1-ch PMIC 1 2.8 - 5.5 1 4 5 I2C 60 FC-BGA 40A peak quad phase, Integrated FETs. Output voltage 0.3V – 1. 9V
    DA9142

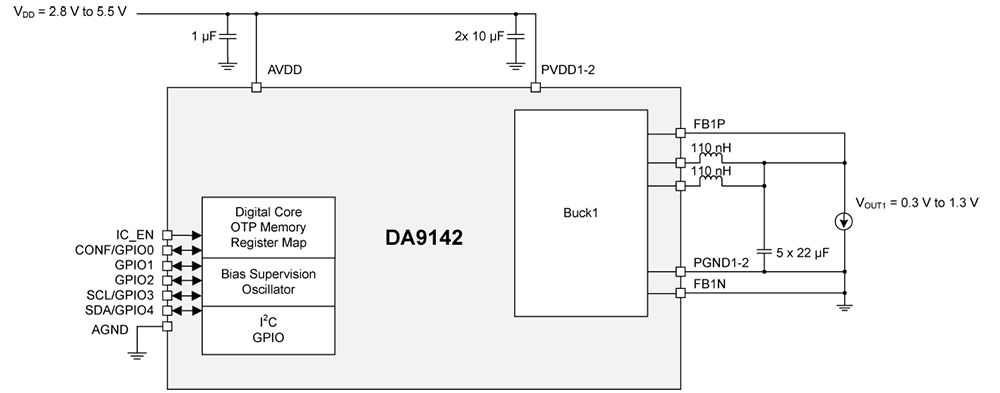

    High-Efficiency, High Current, Dual-Phase, Step-Down DC/DC Converter (Buck) PMIC    		 1-ch PMIC 1 2.8 - 5.5 1 4 5 I2C 60 FC-BGA 20A peak dual phase, Integrated FETs. Output voltage 0.3V – 1. 9V
    DA9212

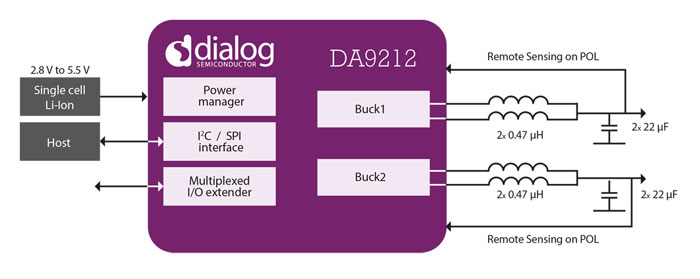

    Multiphase 2x 6A Output Current    		 2-ch PMIC 2 2.8 - 5.5 2 I2C 42 WLCSP
    DA9213
    Multiphase 20A Output Current    		 1-ch PMIC 1 2.8 - 5.5 1 3 I2C & SPI 66 BGA, WL-CSP 20A quad phase, Integrated FETs. Output voltage 0.3V – 1.57V
    DA9214
    Multiphase 2x 10A Output Current    		 2-ch PMIC 2 2.8 - 5.5 2 3 I2C & SPI 66 BGA, WL-CSP 2x 10A dual phase, Integrated FETs. Output voltage 0.3V – 1.57V
    DA9215
    Multiphase 15A and 5A Output Current    		 2-ch PMIC 2 2.8 - 5.5 2 3 I2C & SPI 66 66 WL-CSP, 66-BGA
    1x 15A triple phase + 1x 5A single phase and more...
    ISL91211B
    Quad Output Power Management IC    		 4-ch PMIC 4 2.5 - 5.5 4 I2C 54 WLCSP-TKCURDL
    ISL9307
    3MHz Dual 1500mA Step-Down Converters and Dual Low-Input LDOs    		 4-ch PMIC 4 2.5 - 5.5 2 I2C 16 TQFN
    PV88080
    High-Efficiency Advanced Feature 4-Channel PMIC    		 3-ch PMIC 3 7 - 26 3 2 I2C 32 32-FC-MCQFN
    PV88090
    High-Efficiency 3-Channel Buck Converter with dual LDO    		 3-ch PMIC 3 7 - 26, 4.75 - 5.25 3 I2C 30 30-FC-MCQFN
    RAA215300
    High Performance 9-Channel PMIC Supporting DDR Memory, with Built-In Charger and RTC    		 9-ch PMIC 9 2.75 - 5.5 6 0.769 - 1.54 6 I2C 56 QFN
    DDR VTT_REF and more...
    Parametric Table tips

    Tips for Using This Parametric Table:

    • Hide Filters button in header: Collapse or expands filters
    • Column sort buttons in header: Sort Column alphabetically / numerically descending or ascending
    • Reset button in header: Reset all filters to the page default
    • Full Screen button in header: Expand the table to full screen view (user must close out of full screen before they can interact with rest of page)
    • Export button in header: Export the filtered results of the table to an Excel document
    • Filter parts search bar in header: Type to filter table results by part number
    • Hide column button in column headers: Select to hide columns in table
    • AND / OR toggle switches in header: Toggles the logic of this particular filter to be “AND” or “OR” logic for filtering results
    • Multiselect checkboxes at beginning of each row in table: Select these checkboxes to compare products against each other
    • Document icon next to product name in row: View the featured document for this product
    • Chip icon next to the right of the document icon in row: View the block diagram for this product
    • Cart icon to the right of the chip icon: Indicates that samples are available for this product
