ISL45041EVAL1Z

过时

TFT-LCD, I2C Programmable, VCOM Calibrator Evaluation Board

ISL45041EVAL1Z User Guide

概览

The ISL45041EVAL1Z evaluation board is used to evaluate the features of the ISL45041 TFT-LCD I2C programmable VCOM calibrator. All materials in the kit are RoHS compliant. The evaluation kit comes complete with an ISL45041EVAL1Z board, USB to I2C converter board, USB cable to connect the converter board to a PC, and power and I2C cables for the ISL45041EVAL board.

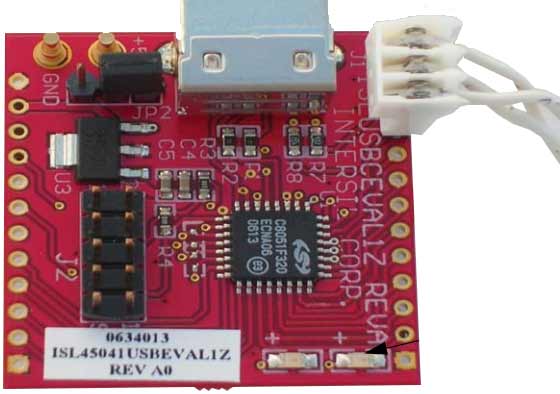

The USB to I2C converter board (USB-I2CIO) allows the user to adjust and program the ISL45041 VCOM voltage using a PC.

ISL45041EVAL1Z I2C Programmable VCOM Calibrator Eval Board
ISL45041EVAL1Z I2C Programmable VCOM Calibrator Eval Board
  • 128-step adjustable sink current output
  • 2.25V to 3.6V logic supply voltage operating range (2.6V minimum programming voltage)
  • 4.5V to 18V analog supply voltage operating range (10.8V minimum programming voltage)
  • I2C interface with addresses 100111x and 100110x
  • On-chip 7-bit EEPROM
  • Output adjustment SET pin
  • Output guaranteed monotonic over-temperature
  • Kit includes:
    • ISL45041EVAL1Z board
    • USB to I2C converter board
    • USB cable to connect the converter board to a PC
    • Power and I2C cables for the ISL45041EVAL
  • LCD panels

文档

相关文档
类型 文档标题 日期
手册 - 开发工具
ISL45041EVAL1Z User Guide
PDF 1001 KB
数据手册
ISL45041 Datasheet
PDF 520 KB
手册 - 开发工具
ISL45041EVAL1 User Guide
PDF 811 KB
3 items

设计和开发

软件下载
类型 文档标题 日期
图库
ISL4504xEval Kit Software v2.0.2
EXE 2.49 MB
1 item
