This device is no longer supported and is not recommended for new designs.

The ISL68300 with integrated MOSFET drivers and ISL68301 with PWM output simplify designing power supplies for data center, wired and wireless communications, and factory automation equipment. The ISL68300 can drive discrete external MOSFETs directly, while the ISL68301 pairs with Renesas’ smart power stages or DrMOS power stages to create a complete voltage regulator solution.

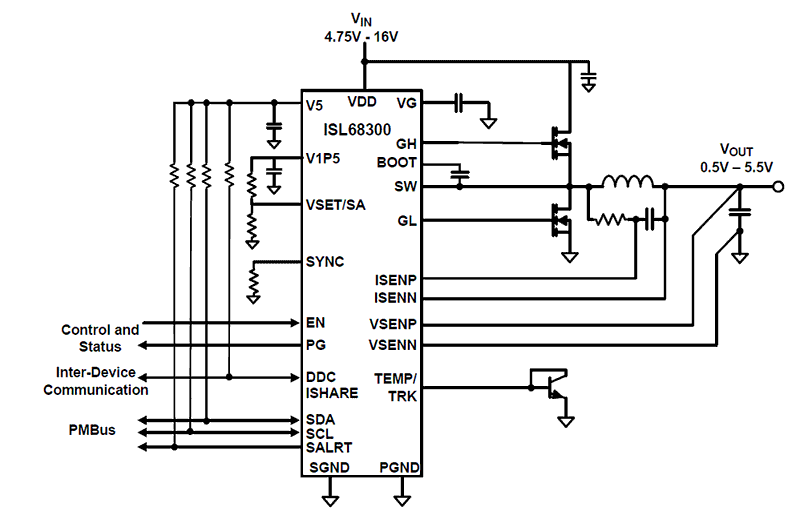

ISL68300 Functional Diagram
ISL68300 Functional Diagram
  • Unique compensation-free design, which is always stable
  • Output voltage range: 0.45V to 5.5V
  • Input voltage range: 4.75V to 16V or 4.5V to 5.5V
  • 0.5% output voltage accuracy over line, load, and temperature
  • ChargeMode control achieves fast transient response, reduced output capacitance, and provides output stability without compensation
  • Single-channel output, can be paralleled with up to eight devices in a single droop-less current sharing output
  • Switching frequency range of 200kHz to 1.0MHz
  • Proprietary single-wire DDC serial bus enables voltage sequencing and fault spreading with other Renesas digital power ICs
  • Cycle-by-cycle inductor peak current protection
  • Digital fault protection for output voltage UV/OV, input voltage UV/OV, and temperature
  • Cycle-by-cycle output current measurement with adjustable gain settings for sensing with high current, low DCR inductors
  • Monitor ADC measures input voltage, input current, output voltage, internal temperature, and external temperature
  • Nonvolatile memory (NVRAM) for storing operating parameters and fault events
  • PMBus compliant, supports 112 PMBus commands

文档

= 相关文档
类型 文档标题 日期
数据手册
ISL68300 Datasheet
登录后下载 PDF 4.32 MB
产品变更通告
PCN21048 - Alternate assembly facility of the listed Renesas QFN / TQFN packaged products
PDF 166 KB
产品变更通告
PCN18032 - Firmware update for the Renesas ISL68300* and ISL68301* Products
PDF 227 KB
3 items

设计和开发

软件与工具
PowerNavigator 软件
瑞萨电子的 PowerNavigator™ 软件可使用带 USB 接口的 PC 对多个数字直流器件进行简单配置和监控。
 Monitor Debugger/RAM Monitor 瑞萨电子
1 item

ECAD 模块

Schematic symbols, PCB footprints, and 3D CAD models from SamacSys can be found by clicking on products in the Product Options table. If a symbol or model isn't available, it can be requested directly from the website.

扩展 ECAD 模块
Diagram of ECAD Models

产品选择

    Processing table
    Pkg. Type
    Carrier Type
    MOQ
    购买 / 样片
    器件号
    ISL68300IRAZ-T
    circle过时
    memory
    spa
    view_in_ar
    		QFN Reel 4000
    ISL68300IRAZ-T7A
    circle过时
    memory
    spa
    view_in_ar
    		QFN Reel 250
    ISL68300IRAZ-TK
    circle过时
    memory
    spa
    view_in_ar
    		QFN Reel 1000
