The ZWIR4532 is a programmable low-power secure IPv6 communication module for internet of things (IoT) device networks. Sensors and devices can operate autonomously or connect to local or global IPv6 networks using the ZWIR4532. The ZWIR4532 serves as a universal secure radio communication module for applications with low bandwidth requirements.

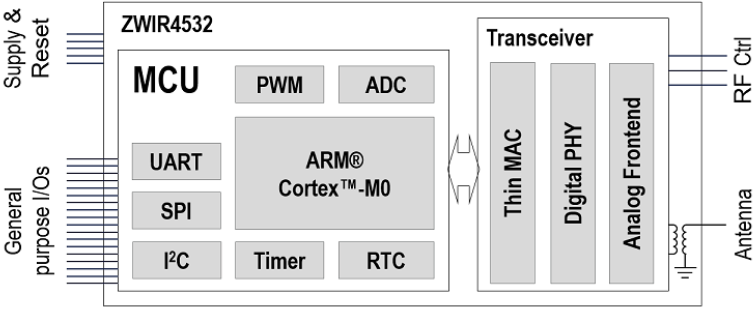

The module incorporates an ultra-low-power ARM® Cortex™-M0+ 32-bit microcontroller which is running the network stack. In addition, the user application can run on the microcontroller. This helps minimizing the size, complexity and overall BOM. A rich set of digital and analog peripherals is available for interfacing with external application components. Approximately 128kB of flash and 4kB of RAM are available for user applications.
特性
- License-free 868/914MHz frequency bands
- LGA module, 15.6 x 12 x 2.5 mm
- Supply voltage: 1.8 to 3.6 V
- RX/TX (0dBm): 10mA/16mA
- < 1µA Standby Current
- ARM® Cortex™ M0 MCU, up to 32MHz
- 192kB flash, 20kB RAM

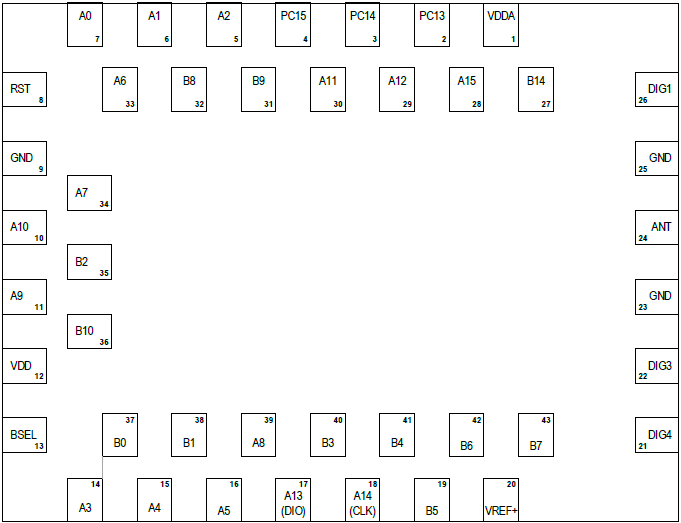

- 31 GPIOs, UART, SPI, I2C, PWM
- IDT SensorShare™ firmware available for download
产品对比
应用
设计和开发
软件与工具
模型
ECAD 模块
点击产品选项表中的产品，查找 SamacSys 中的原理图符号、PCB 足迹和 3D CAD 模型。点击产品选项表中的产品，查找 SamacSys 中的原理图符号、PCB 足迹和 3D CAD 模型。
产品选项
当前筛选条件
视频和培训
IDT ZWIR4532 6LoWPAN Wireless Module for IoT Sensor Networks
IDT’s ZWIR4532 6LoWPAN wireless module enable secure low-power communication for sensors and small Internet of Things (IoT) devices. IDT provides a user-programmable, royalty-free stack with mesh routing capability. The IEEE 802.15.4-based modules are ideal for sensors and other IoT small devices used in industry and building automation, smart city lighting, environmental sensing, health monitoring, smart metering, and keyless entry systems.
For more information about IDT's 6LoWPAN wireless modules, visit www.idt.com/6lowpan.
