概览
描述

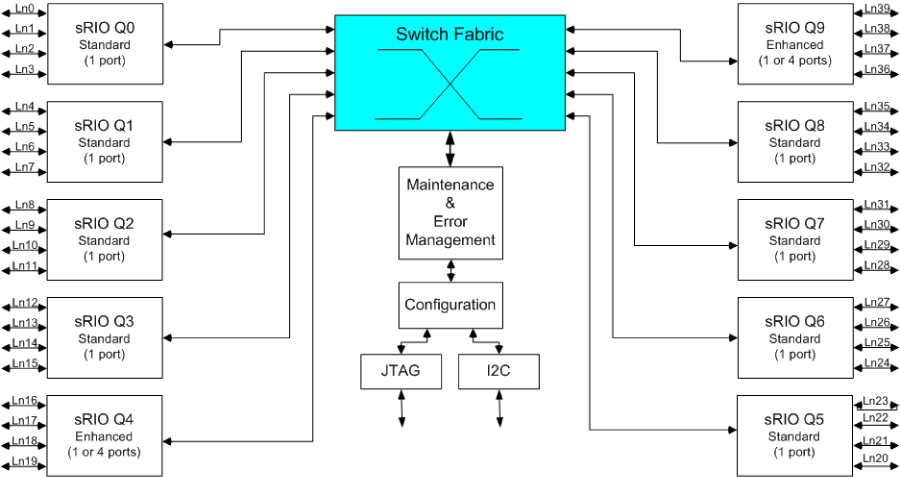

The CPS-10Q, device number 80KSW0005, is a serial RapidIO switch whose functionality is central to routing packets for distribution among DSPs, processors, FPGAs, other switches, or any other S-RIO-based devices. It may also be used in serial RapidIO backplane switching. The CPS-10Q supports serial RapidIO packet switching (unicast, multicast, and an optional broadcast) from any of its 16 input ports to any of its 16 output ports.
Learn more: IDT RapidIO Development Systems
特性
- 40 bidirectional serial RapidIO (sRIO) lanes v 1.3
- Port Speeds selectable: 3.125Gbps, 2.5Gbps, or 1.25Gbps
- Provides I2C port for maintenance and error reporting
- Master or Slave Operation
- 100 Gbps of peak switching bandwidth
- Non-blocking data flow architecture within each sRIO priority
- Device configurable through any of sRIO ports, I2C, or JTAG
