概览
描述

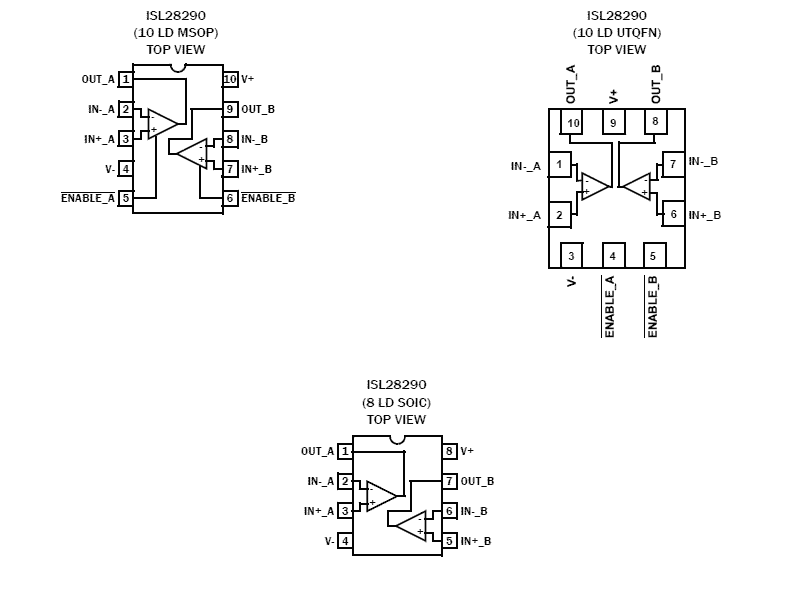

The ISL28290 is a dual ultra-low noise, ultra-low distortion operational amplifier that is fully specified to operate down to +3V single supply. The amplifier has outputs that swing rail-to-rail, and an input common mode voltage that extends below ground (ground sensing). The ISL28290 is unity gain stable with an input referred voltage noise of 1nV/√Hz. The part features 0.00017% THD+N at 1kHz. The ISL28290 is available in 10-lead UTQFN (1.8mm x 1.4mm), 10-lead MSOP, and 8-lead SOIC packages. Device operation is guaranteed over -40 °C to +125 °C.
特性
- 1nV/√Hz input voltage noise
- 1kHz THD+N typical 0.00017% at 2VP-P VOUT
- Harmonic Distortion -87dBc, -90dBc, fo = 1MHz
- 170MHz -3dB bandwidth
- 50V/µs slew rate
- 700µV maximum offset voltage
- 10µA typical input bias current
- 103dB typical CMRR
- 3V to 5.5V single supply voltage range
- Rail-to-rail output
- Ground sensing
- Enable pin (not available in the 8 Ld SOIC package option)
- Pb-free (RoHS compliant)
产品对比
应用
设计和开发
开发板与套件
评估
Dual Supply Ultra-Low Noise RRIO Op Amp Evaluation Board
The ISL28290EVAL1Z evaluation board is a design platform containing all the circuitry needed to characterize critical performance parameters of the ISL28290 dual op amp, using a variety of user-defined test circuits.
The ISL28290 amplifier is a dual high-speed operational amplifier featuring low...
Recommended Documents:
评估
Dual Supply Ultra-Low Noise RRIO Op Amp Evaluation Board
The ISL28291EVAL1Z evaluation board is a design platform containing all the circuitry needed to characterize critical performance parameters of the ISL28291 dual op amp, using a variety of user-defined test circuits.
The ISL28291 amplifier is a dual high-speed operational amplifier featuring low...
Recommended Documents:
模型
ECAD 模块
点击产品选项表中的 CAD 模型链接，查找 SamacSys 中的原理图符号、PCB 焊盘布局和 3D CAD 模型。如果符号和模型不可用，可直接在 SamacSys 请求该符号或模型。
