概览

描述

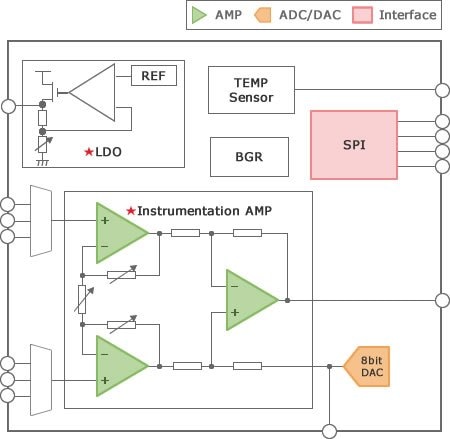

Smart Analog IC501 has a built-in instrument amplifier and D/A converter. It is suitable for home appliances, industrial applications and healthcare equipment.

特性

  • RAA730501CFP for industrial applications
  • RAA730501DFP for consumer applications
  • Input Mux 3 channels
  • Instrumentation amplifier
  • 8-bit D/A converter
  • Variable output voltage regulator / LDO
  • Reference voltage generator
  • Temperature sensor
  • SPI: 1 channel
  • Low power consumption modes available
  • Operating voltage range: 3.0 to 5.5 V
  • Operating temperature range: Ta= -40 to +105°C
  • Package: 48-pin LQFP (7 x 7)

产品对比

应用

  • Home appliances
  • Industrial applications
  • Healthcare equipment

文档

类型 文档标题 日期
应用笔记 PDF 1.50 MB 日本語
应用笔记 PDF 1.27 MB 日本語
传单 PDF 8.02 MB 日本語
3 items

设计和开发

软件与工具

软件与工具

Software title
Software type
公司
Smart Analog Easy Starter
Smart Analog Easy Starter is a GUI evaluation tool for designing the analog front-end circuit of Smart Analog devices.
Circuit Design Tool 瑞萨电子
1 item

模型

ECAD 模块

点击产品选项表中的产品,查找 SamacSys 中的原理图符号、PCB 足迹和 3D CAD 模型。点击产品选项表中的产品,查找 SamacSys 中的原理图符号、PCB 足迹和 3D CAD 模型。


Diagram of ECAD Models
