14-Bit, +3.3V, 210/130MSPS High-Speed D/A Converter Evaluation Board
The ISL5761EVAL1 evaluation board provides a quick and easy method for evaluating the ISL5761 10-bit, 130/210MSPS high-speed digital-to-analog converters (DACs). The...
概览
描述
Support is limited to customers who have already adopted these products.

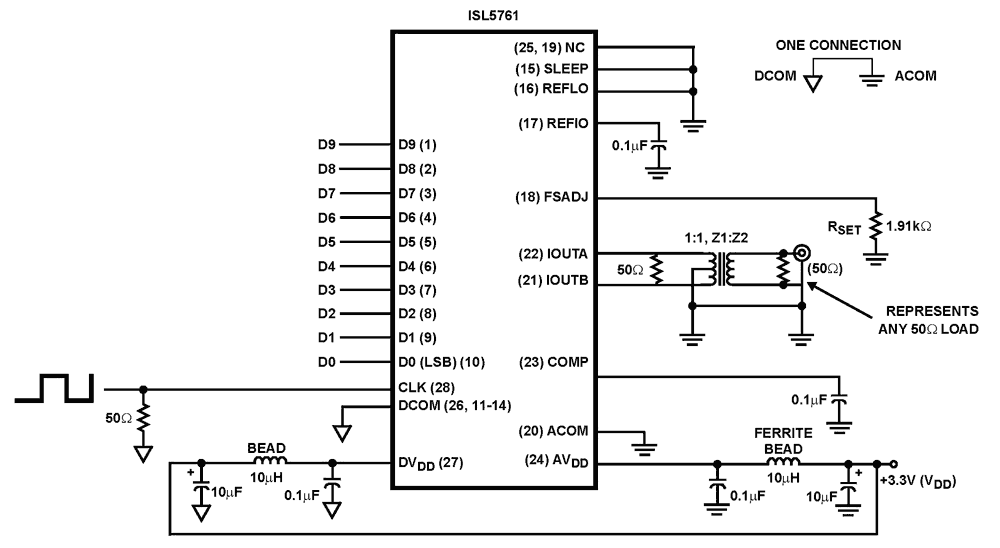

The ISL5761 is a 10-bit, 130/210+MSPS (Mega Samples Per Second), CMOS, high-speed, low power, D/A (digital-to-analog) converter, designed specifically for use in high-performance communication systems such as base transceiver stations utilizing 2.5G or 3G cellular protocols. This device complements the ISL5x61 family of high-speed converters, which include 10, 12 and 14-bit devices.
特性
- Speed grades 130M and 210+MSPS
- Low power 103mW with 20mA output at 130MSPS
- Adjustable full-scale output current 2mA to 20mA
- +3.3V power supply
- 3V LVCMOS compatible inputs
- Excellent spurious free dynamic range (71dBc to Nyquist, fS = 130MSPS, fOUT = 10MHz)
- UMTS adjacent channel power = 65dB at 19.2MHz
- EDGE/GSM SFDR = 83dBc at 11MHz in 20MHz window
- Pin compatible, 3.3V, lower power replacement for the AD9750 and HI5760
- Pb-free available
产品对比
应用
- Cellular infrastructure - Single or multi-carrier: IS-136, IS- 95, GSM, EDGE, CDMA2000, WCDMA, TDS-CDMA
- BWA infrastructure
- Medical/Test instrumentation
- Wireless communication systems
- High resolution imaging systems
- Arbitrary waveform generators
文档
相关文档
请登录后开启订阅
|
|
|
|
|---|---|---|
| 类型 | 文档标题 | 日期 |
| 数据手册 | PDF 1002 KB | |
| 宣传手册 | PDF 5.41 MB 日本語 | |
| EOL 通告 | PDF 388 KB | |
| 产品咨询 | PDF 363 KB | |
| 产品变更通告 | PDF 98 KB | |
| 应用笔记 | PDF 503 KB | |
| 应用笔记 | PDF 1.08 MB | |
| 应用笔记 | PDF 287 KB | |
8 items
|
||
设计和开发
开发板与套件
14-Bit, +3.3V, 210/130MSPS High-Speed D/A Converter Evaluation Board
The ISL5761EVAL2 evaluation board provides a quick and easy method for evaluating the ISL5761 130/210MSPS high-speed digital-to-analog converter (DAC). The ISL5761EVAL2...
