Low Skew 1 to 4 Clock Buffer

立即订购
553S Datasheet

概览

The 553S is a low skew, single input to four output, LVCMOS clock buffer that offers a best-in-class additive phase jitter of sub 50fs.

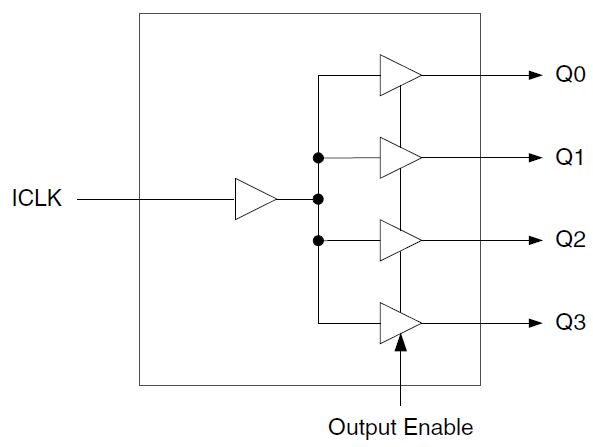

553S Block Diagram

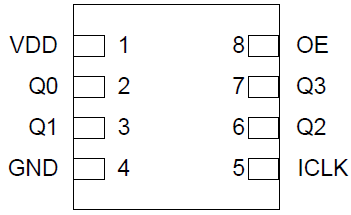

553S Pinout - DFN

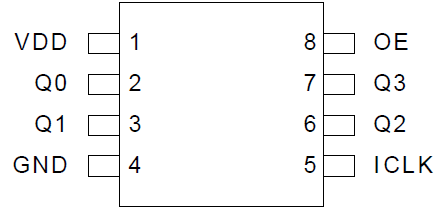

553S Pinout - SOIC
553S Block Diagram
553S Pinout - DFN
553S Pinout - SOIC
  • Low additive phase jitter RMS: 50fs
  • Extremely low skew outputs (50ps)
  • Low-cost clock buffer
  • Packaged in 8-pin SOIC and small 8-pin DFN packages, Pb-free
  • Input/Output clock frequency up to 200MHz
  • Ideal for networking clocks
  • Operating voltages: 1.8V to 3.3V
  • Output Enable mode tri-state outputs
  • Advanced, low-power CMOS process
  • Extended temperature range: -40 °C to +105 °C
