5P83905

有效

1.8V to 3.3V 1:6 Crystal Input to LVCMOS Output High-Performance Clock Fanout Buffer with OE

立即订购
5P8390x Datasheet

概览

The 5P83905 is a high-performance, 1-to-6 crystal input to LVCMOS fanout buffer with Output Enable (OE) pins. This device accepts a fundamental mode crystal from 10MHz to 40MHz and outputs LVCMOS clocks with best-in-class phase noise performance.

The 5P83905 features a synchronous glitch-free Output Enable function to eliminate any intermediate incorrect output clock cycles when enabling or disabling outputs. It comes in standard TSSOP packages or small QFN packages and can operate from 1.8V to 3.3V supplies.

5P83905 Block Diagram

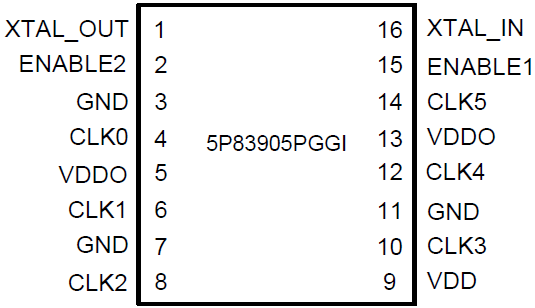

5P83905 Pinout
5P83905 Block Diagram
5P83905 Pinout
  • Six copies of LVCMOS output clocks with best-in-class phase noise performance
  • Phase noise:
    Offset noise power (3.3V)
    • 100Hz: -131dBc/Hz
    • 1KHz: -145dBc/Hz
    • 10KHz: -154dBc/Hz
    • 100KHz: -161dBc/Hz
  • Operating power supply modes:
    • Full 3.3V, 2.5V, 1.8V
    • Mixed 3.3V core/2.5V output operating supply
    • Mixed 3.3V core/1.8V output operating supply
    • Mixed 2.5V core/1.8V output operating supply
  • Crystal oscillator interface
  • Synchronous Output Enable
  • Packaged in 16-pin TSSOP and QFN packages
  • Extended temperature range (-40 °C to +105 °C)
