概览
描述
The 5PB1206 is a high-performance TCXO/LVCMOS clock fanout buffer with individual OE pins for each output. The CLKIN pin can accept either a square wave (LVCMOS) or a clipped sine wave (such as TCXO clipped sine wave output) as input.
The 5PB1206 has industry-leading low jitter and extremely low current consumption, making it ideal for smart mobile devices.
特性
- Extremely low operating and standby current consumption
- Low RMS Additive Phase jitter
- 1.8V power supply voltage
- Six outputs with individual Output Enable pin
- One input
- OE_OSC control pin to enable/disable reference TCXO/XO

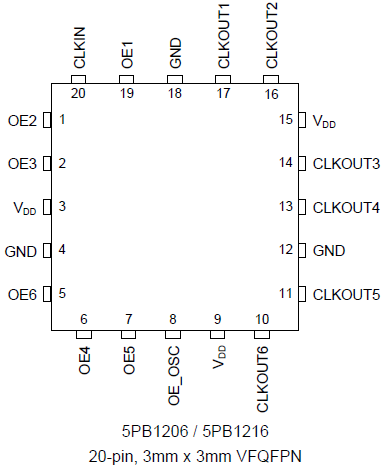

- Small 20-pin VFQFPN package
- Extended temperature range (-40 °C to +105 °C)
产品对比
应用
- Smart mobile handsets
- RF and baseband peripheral clock distribution
- Automotive
设计和开发
模型
ECAD 模块
点击产品选项表中的产品，查找 SamacSys 中的原理图符号、PCB 足迹和 3D CAD 模型。点击产品选项表中的产品，查找 SamacSys 中的原理图符号、PCB 足迹和 3D CAD 模型。
产品选项
当前筛选条件
视频和培训
5PB11xx Ultra Low Jitter LVCMOS Buffers
This video provides an overview of the LVCMOS High Performance Clock Buffer Family, highlighting their key features and capabilities.
