74FCT38075S

有效

Low Skew 1 to 5 Clock Buffer

立即订购
74FCT38075S Datasheet

概览

The 74FCT38075S is a low skew, single input to five output, LVCMOS clock buffer that offers a best-in-class additive phase jitter of sub 50fs.

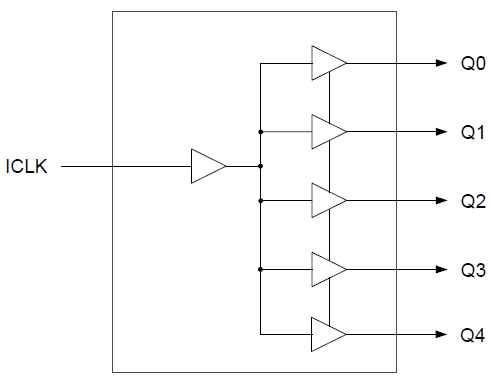

74FCT38075S Block Diagram
74FCT38075S Pinout - DFN

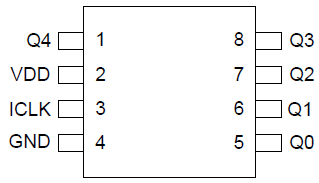

74FCT38075S Pinout - SOIC
74FCT38075S Block Diagram
74FCT38075S Pinout - DFN
74FCT38075S Pinout - SOIC
  • Extremely low RMS additive phase jitter: 50fs
  • Low output skew: 50ps
  • Packaged in an 8-pin SOIC and 8-pin DFN
  • Pb (lead) free package
  • Low-power CMOS technology
  • Operating voltages of 1.8 V to 3.3 V
  • Extended temperature range: -40 °C to +105 °C
