概览
描述

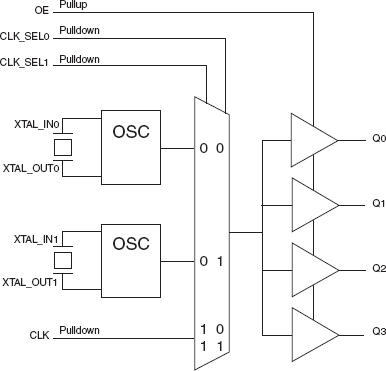

The 83904I-02 is a low-skew, high-performance 1-to-4 crystal-to-LVCMOS fanout buffer. The 83904I-02 has selectable single-ended clock or two crystal oscillator inputs. There is an output enable to disable the outputs by placing them into a high-impedance state. Guaranteed output and part-to-part skew characteristics make the 83904I-02 ideal for those applications demanding well-defined performance and repeatability.
特性
- Four LVCMOS/LVTTL outputs, 19Ω output impedance at VDD = VDDO = 3.3V
- Two crystal oscillator input pairs LVCMOS/LVTTL clock input
- Crystal input frequency range: 12MHz to 38.88MHz
- Output frequency: 200MHz (maximum)
- Output skew: 40ps (maximum) at VDD = VDDO = 3.3V
- RMS phase jitter at 25MHz output, using a 25MHz crystal, (100Hz to 1MHz): 0.16ps (typical) at VDD = VDDO = 3.3V
- RMS phase noise at 25MHz
Offset/Noise Power
100Hz: -118.4 dBc/Hz
1kHz: -141.5 dBc/Hz
10kHz: -157.2 dBc/Hz
100kHz: -157.2 dBc/Hz - Power Supply Voltage Modes:
Core/Output
3.3V/3.3V
3.3V/2.5V
3.3V/1.8V
2.5V/2.5V
2.5V/1.8V - -40 °C to 85 °C ambient operating temperature
- Available in lead-free (RoHS 6) packaging
产品对比
应用
设计和开发
模型
ECAD 模块
点击产品选项表中的产品，查找 SamacSys 中的原理图符号、PCB 足迹和 3D CAD 模型。点击产品选项表中的产品，查找 SamacSys 中的原理图符号、PCB 足迹和 3D CAD 模型。
