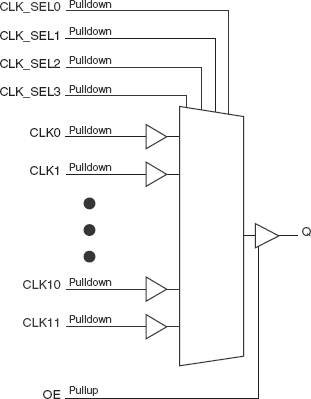

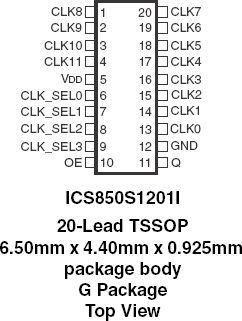

The 850S1201I is a low-skew, 12:1, single-ended clock multiplexer. The 850S1201I has 12 selectable single-ended clock inputs and 1 single-ended clock output. The device operates up to 250MHz and is packaged in a 20-lead TSSOP package.
特性
- 12:1 single-ended multiplexer
- Nominal output impedance: 20Ω (VDD = 3.3V)
- Maximum output frequency: 250MHz
- Propagation delay: 2.7ns (maximum)
- Full 3.3V or 2.5V supply modes
- -40 °C to 85 °C ambient operating temperature
- Available in lead-free (RoHS 6) packages
