概览

描述

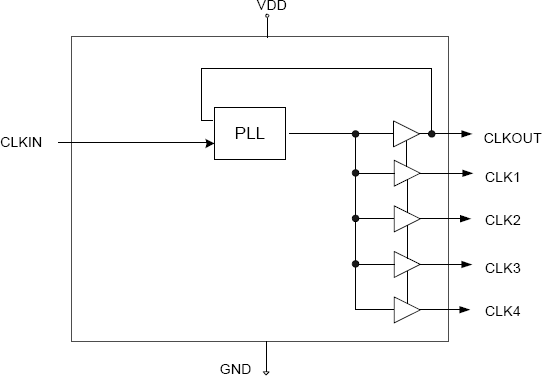

The 2305 is a low phase noise, high-speed PLL based, low-skew zero delay buffer. Based on the Renesas proprietary low jitter Phase Locked Loop (PLL) techniques, the device provides four low skew outputs at speeds up to 133 MHz at 3.3 V. The outputs can be generated from the PLL (for zero delay), or directly from the input (for testing), and can be set to tri-state mode or to stop at a low level. The PLL feedback is on-chip and is obtained from the CLKOUT pad. The 2305 is available in two different versions. The 2305-1 is the base part. The 2305-1H is a high drive version with faster rise and fall times.

特性

  • Clock outputs from 10 to 133 MHz
  • Zero input-output delay
  • Four low skew (<250 ps) outputs
  • Device-to-device skew <700 ps
  • Full CMOS outputs with 25 mA output drive capability at TTL levels
  • 5 V tolerant CLKIN
  • Tri-state mode for board-level testing
  • Advanced, low power, sub-micron CMOS process
  • Operating voltage of 3.3 V
  • Industrial temperature range available
  • Packaged in 8-pin SOIC

产品对比

应用

文档

设计和开发

模型

ECAD 模块

点击产品选项表中的 CAD 模型链接,查找 SamacSys 中的原理图符号、PCB 焊盘布局和 3D CAD 模型。如果符号和模型不可用,可直接在 SamacSys 请求该符号或模型。

Diagram of ECAD Models

模型

类型 文档标题 日期
模型 - IBIS ZIP 24 KB
模型 - SPICE 登录后下载 ZIP 86 KB
2 items
