Name: 5P49V5933 - VersaClock 5 Low Power Programmable Clock Generator with Integrated Crystal
Brand: Renesas Electronics Corporation
SKU: 5P49V5933 - VersaClock 5 Low Power Programmable Clock Generator with Integrated Crystal
Availability: OutOfStock

概览

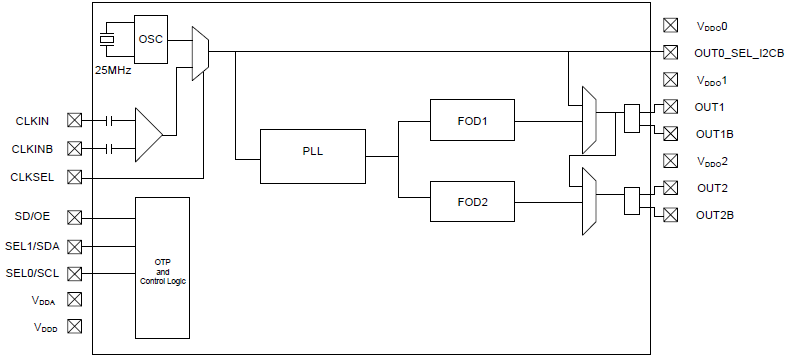

The 5P49V5933 is a programmable clock generator intended for high-performance consumer, networking, industrial, computing, and data communications applications. Configurations may be stored in on-chip One-Time Programmable (OTP) memory or changed using an I²C interface. This is Renesas' fifth generation of programmable clock technology (VersaClock^® 5). The 5P49V5933, by default, uses an integrated 25MHz crystal as an input reference. It also has a redundant external clock input. A glitchless manual switchover function allows the selection of either input reference during normal operation.

Two select pins allow up to 4 different configurations to be programmed and accessible using processor GPIOs or bootstrapping. The different selections may be used for different operating modes (full function, partial function, partial power-down), regional standards (US, Japan, Europe), or system production margin testing. The device may be configured to use one of two I²C addresses to allow multiple devices to be used in a system.

2 differential outputs LVPECL, LVDS, HCSL - or 2 LVCMOS outputs
<0.7ps RMS typical phase jitter on outputs
Two fractional output dividers (FODs)
Independent spread spectrum capability on each output pair
Stores 4 different configurations in OTP non-volatile memory
Up to 350MHz input/output frequencies
Redundant clock inputs with manual switchover
Programmable loop bandwidth, output to output skew, slew rate control
Individual output enable/disable
Meets PCIe^® Gen 1/2/3, USB 3.0, 1/10 GbE clock requirements
1.8/2.5/3.3V core and output voltages

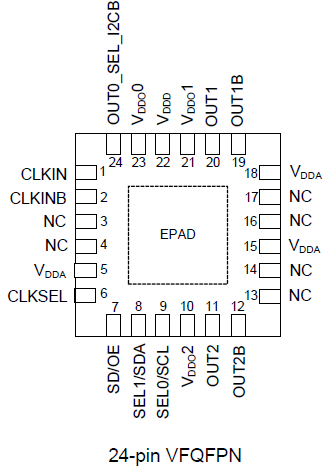

4mm x 4mm 24-pin VFQFPN package
-40 °C to +85 °C operating temperature range
Supported by Renesas' Timing Commander™ software tool

Ethernet switch/router
PCI Express 1.0/2.0/3.0
Broadcast video/audio timing
Multi-function printer
Processor and FPGA clocking
Any-frequency clock conversion
MSAN/DSLAM/PON
Fiber Channel, SAN
Telecom line cards
1GbE and 10GbE

设计和开发

软件与工具

Software title	Software type	公司

Timing Commander Timing Commander™ 是一个基于 Windows™ 的创新软件平台，通过这个平台，系统设计工程师可以通过直观且灵活的图形用户界面 (GUI) 对精密的计时设备进行配置、编程和监控。下载 Timing Commander Installation Guide Timing Commander Installer (v1.18.2)VersaClock 5 Timing Commander Users Guide	Code Generator	瑞萨电子
1 item

软件下载


类型	文档标题	日期
软件和工具 - 软件	Timing Commander Installer (v1.18.2) 登录后下载 ZIP 18.01 MB	2024年12月2日
软件和工具 - 其他	VersaClock 5 Timing Commander Personality File 登录后下载 TCP 2.94 MB	2015年10月6日
2 items

EVKVC5-5933

Evaluation

了解更多

Evaluation Board for 5P49V5933 VersaClock 5 with Integrated Crystal

This is the evaluation board for the Renesas 5P49V5933 VersaClock^® 5 programmable clock generator with integrated crystal. With RMS phase jitter less than 0.7...

特色文件:

EVKVC5-59xxPROG

Development

了解更多

Programmer Board for VersaClock 5 - 5P49V59xx

The VersaClock^® 5 - 5P49V59xx programmer board is made to ease the programming of blank 5P49V59xx parts. With the onboard USB interface, Renesas Timing Commander^™...

特色文件:

ECAD 模块

点击产品选项表中的 CAD 模型链接，查找 SamacSys 中的原理图符号、PCB 焊盘布局和 3D CAD 模型。如果符号和模型不可用，可直接在 SamacSys 请求该符号或模型。

扩展 ECAD 模块

模型


类型	文档标题	日期
模型 - IBIS	5P49V5933 IBIS Model ZIP 399 KB	2015年5月8日
1 item

此为出厂可配置设备。试用自定义部件配置工具。

视频和培训

5P49V5935 and 5P49V5933 VersaClock 5 Lower Power Clock Generators with Integrated Crystal

Patrice Cater and Baljit Chandhoke introduce IDT's (acquired by Renesas) VersaClock 5 with an integrated crystal, emphasizing its compact design, ease of integration, and cost efficiency. They showcase its performance and versatility on an evaluation board, highlighting the device's ability to eliminate external frequency tuning components and its low power consumption. Available in two models, further details are accessible on Renesas's Programmable Clocks page.

Transcript

Patrice Cater: Hi, I'm Patrice Cater of IDT, and I'd like to tell you about the latest iteration of the VersaClock 5 programmable clock generators. This addition to our broad portfolio of timing devices is really unique, in that these programmable clock generators feature an integrated crystal. This means engineers won't have to spend development time integrating the crystal themselves or tuning the frequency, and it means reduced board space because the entire device, including crystal, comes in a compact 4 x 4 mm package. And finally, the integrated crystal means fewer components for a smaller bill of materials. So, you get all the benefits of the original VersaClock 5, best-in-class jitter performance at half the power of competing devices. And the integrated crystal is the icing on the cake. Let's hear it from our product expert.

Baljit Chandhoke: Thanks, Patrice, for the great introduction of our new VersaClock 5 with integrated crystal. Now I'm going to show you on an evaluation board, what we are talking about. As you see on this evaluation board, the VersaClock 5 is really small. It's 4 mm x 4 mm, and as you see, there is no crystal. So the X1 is blank, so the crystal is inside the device. This enables our customers to have a comprehensive solution with no external components needed for frequency tuning. It also enables them to save on board space and lower the cost of BOM. In addition, this product, as you will see, is very versatile and it can be used for many different applications since it has the great performance of 0.7 picoseconds RMS phase jitter from 12k to 20 megahertz, and extremely low power with 30 milliamps core current consumption.

Patrice Cater: The VersaClock 5 devices with integrated crystals comes in two flavors, the 5p49v5933a which can generate two output frequencies, and the 5p49v5935a which can generate up to four. For more information, visit the IDT website or give Baljit a call.
