概览
描述

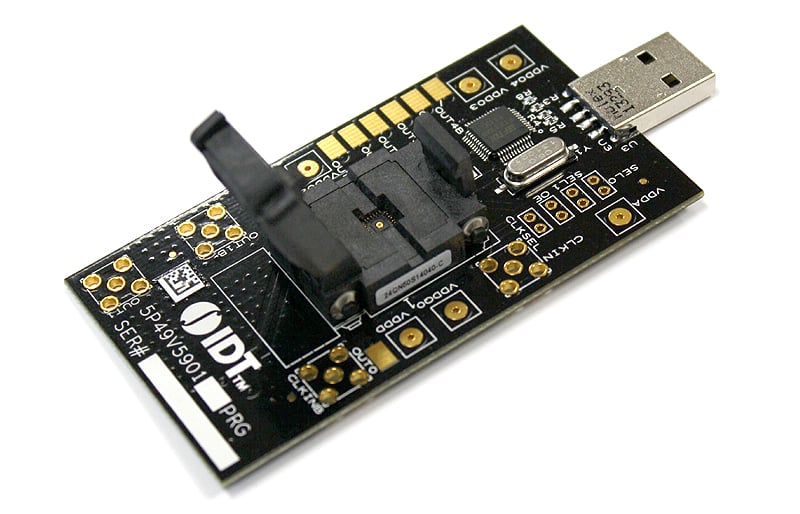

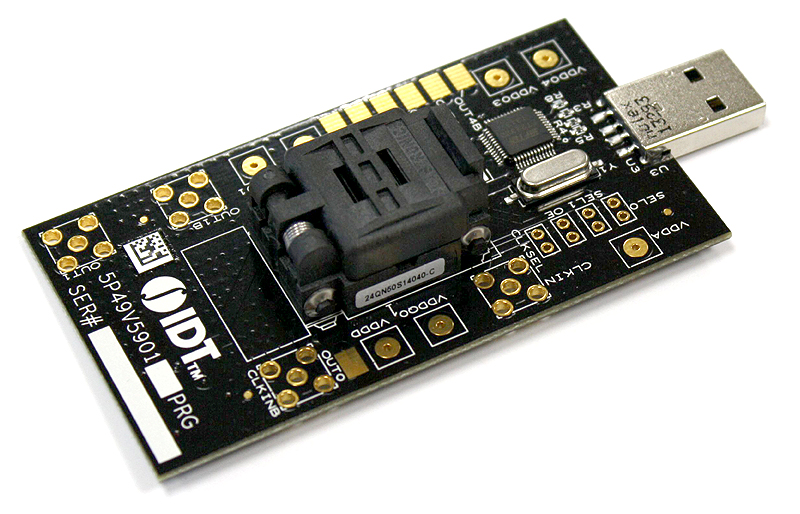

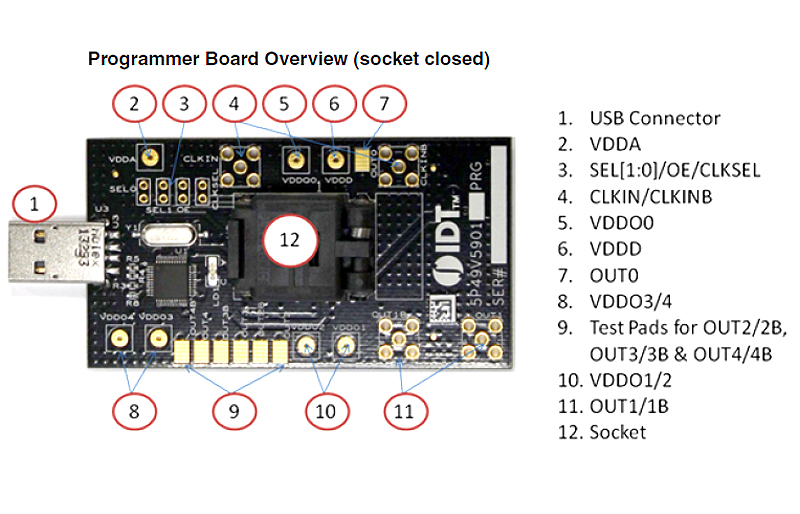

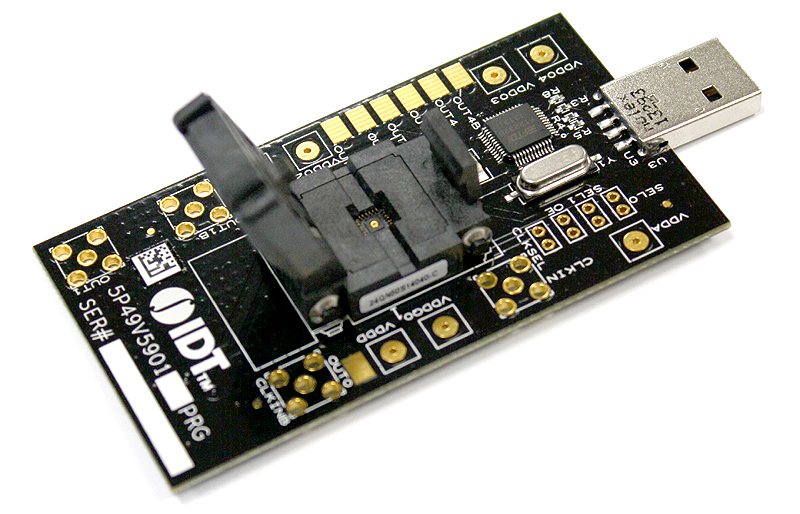

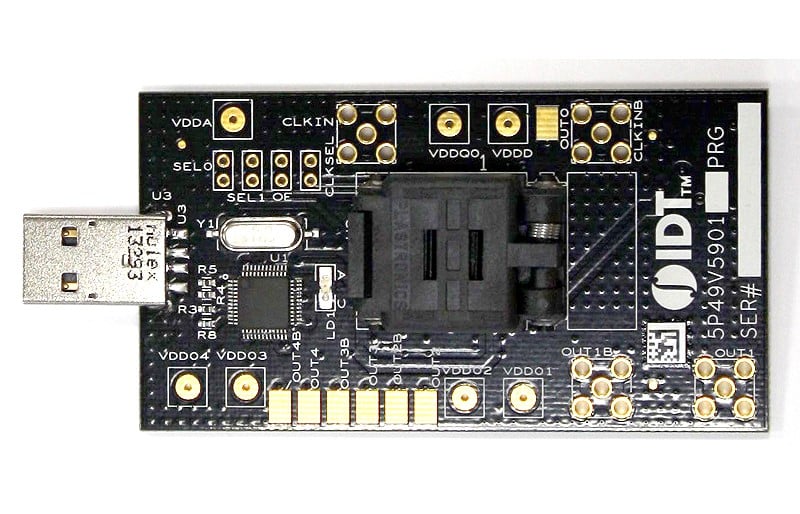

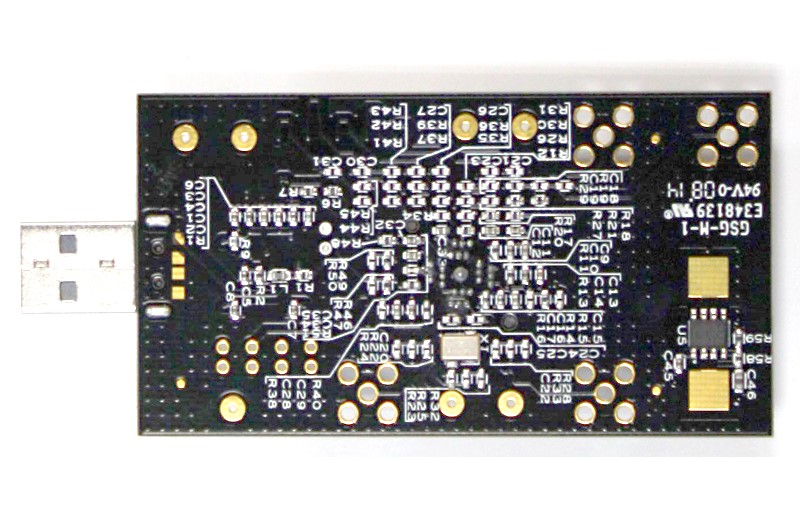

The VersaClock® 5 - 5P49V59xx programmer board is made to ease the programming of blank 5P49V59xx parts. With the onboard USB interface, Renesas Timing Commander™ Graphical User Interface (GUI) can be used to communicate with the blank device in the socket for configuration and programming. Compatible with 5P49V5901, 5P49V5913, 5P49V5914, 5P49V5923, 5P49V5925, 5P49V5927, 5P49V5929, 5P49V5933, 5P49V5935.
特性
- Program VersaClock 5 – 5P49V59xx blank parts in the socket
- Programmer board is powered using USB port
- Programmer board uses Renesas’s Timing CommanderTM GUI – to program the blank parts
- USB port is the communication channel between the GUI and the VersaClock 5 – 5P49V59xx device in the socket
应用
文档
相关文档
请登录后开启订阅
|
|
|
|
|---|---|---|
| 类型 | 文档标题 | 日期 |
| 手册 - 开发工具 | PDF 549 KB | |
| 手册 - 软件 | PDF 2.04 MB | |
| 产品简述 | PDF 469 KB | |
| 原理图 | PDF 30 KB | |
4 items
|
||
设计和开发
软件与工具
软件与工具
| Software title
|
Software type
|
公司
|
|---|---|---|
| Timing Commander Timing Commander™ 是一个基于 Windows™ 的创新软件平台，通过这个平台，系统设计工程师可以通过直观且灵活的图形用户界面 (GUI) 对精密的计时设备进行配置、编程和监控。
|
Code Generator | 瑞萨电子 |
1 item
|
||
产品选项
当前筛选条件
视频和培训
How to Program VersaClock - 5 Programmable Clock Generator by IDT
This video will show you how to program VersaClock® 5 Low Power Programmable Clock Generator.
