Evaluation Board for 5X2503 MicroClock
This is the evaluation board for the Renesas 5X2503 MicroClock programmable clock generator. With crystal integration, the 5X2503 only requires a small space on the...
概览
简介

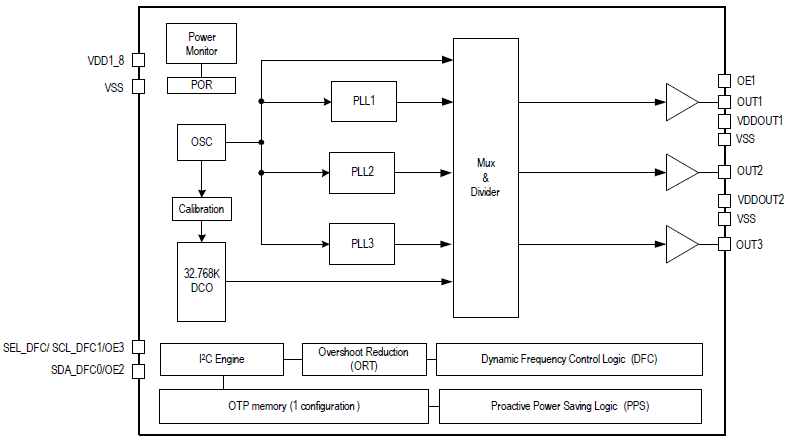

The 5X2503 MicroClock is a programmable clock generator, and is intended for low power, consumer, wearable and smart devices. The 5X2503 device is a 3 PLL architecture design with an embedded 26MHz crystal. Each PLL is individually programmable, allowing for up to 3 unique frequency outputs. The 5X2503 has built-in unique features such as Proactive Power Saving (PPS) to deliver better system level power management.
An internal OTP memory allows the user to store the configuration in the device without programming after power up, and then can be reprogrammed again through the I²C interface. The device has programmable VCO and PLL source selection allowing the user to do power-performance optimization based on the application requirements. A low power 32.768kHz clock is supported with only less than 2μA current consumption for system RTC reference clock needs.
特性
- Configurable OE pin function as OE, PPS or DFC control function
- PPS: Proactive Power Saving features save power during the end device power-down mode
- DFC: Dynamic Frequency Control feature allows programming up to 4 difference frequencies that switch dynamically
- Spread Spectrum clock support to lower system EMI
- I²C Interface
- Supported by IDT Timing Commander™ software tool
产品对比
应用
文档
= 相关文档
请登录后开启订阅
|
|
|
|
|---|---|---|
| 类型 | 文档标题 | 日期 |
| 数据手册 | PDF 573 KB | |
| 应用文档 | PDF 187 KB | |
| 应用文档 | PDF 348 KB | |
| 概览 | PDF 1023 KB | |
| 应用文档 | PDF 307 KB | |
| 应用文档 | PDF 495 KB | |
| 应用文档 | PDF 565 KB | |
| 应用文档 | PDF 438 KB | |
8 items
|
||
设计和开发
软件与工具
软件与工具
| Software title
|
Software type
|
公司
|
|---|---|---|
| Timing Commander Timing Commander™ 是一个基于 Windows™ 的创新软件平台，通过这个平台，系统设计工程师可以通过直观且灵活的图形用户界面 (GUI) 对精密的计时设备进行配置、编程和监控。
|
Code Generator | 瑞萨电子 |
1 item
|
||
开发板与套件
开发板与套件
5X2503 MicroClock Development Kit
The 5X2503 evaluation board is made for configuration and signal integrity verification. With USB programming board, Renesas Timing CommanderTM GUI can be used to...
模型
ECAD 模块
Schematic symbols, PCB footprints, and 3D CAD models from SamacSys can be found by clicking on products in the Product Options table. If a symbol or model isn't available, it can be requested directly from the website.
此为出厂可配置设备。试用自定义部件配置工具。
