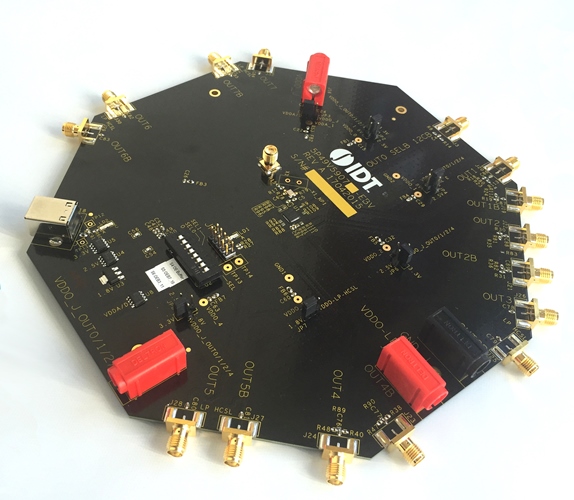

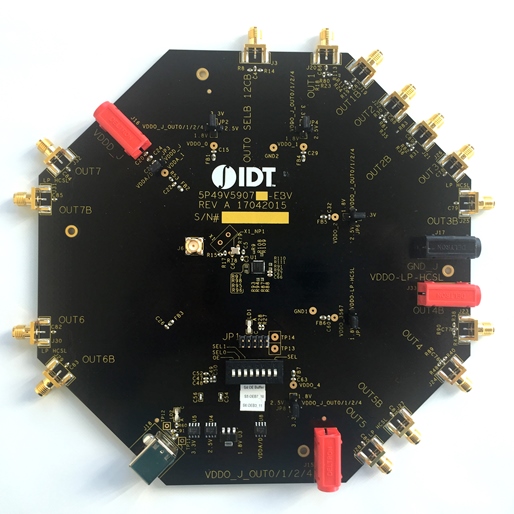

This is the evaluation board for the Renesas 5P49V5908 programmable clock generator. With RMS phase jitter less than 0.75 picoseconds over the full 12kHz to 20MHz integration range, the device meets the stringent jitter requirements of PCI ExpressR Gen 1/2/3, USB 3.0, and 1G/10G Ethernet. VersaClock® 5 is ideal for high-performance consumer, networking, industrial, computing, and data communications applications.

特性

  • 3 Universal Differential Outputs capable of generating any output frequency using  Renesas Timing Commander™ software
  • 8 copies of Low Power HCSL (LP-HCSL) outputs.
  • SMA connectors for outputs
  • When the board is connected to a PC running Renesas Timing Commander Software through USB, the device can be configured and programmed to generate frequencies with best-in-class performance

应用

文档

类型 文档标题 日期
手册 - 硬件 PDF 1.22 MB
手册 - 软件 PDF 2.04 MB
原理图 PDF 83 KB
3 items

产品选项

当前筛选条件

视频和培训

How to Program VersaClock - 5 Programmable Clock Generator by IDT

This video will show you how to program VersaClock® 5 Low Power Programmable Clock Generator.
