The F2270 is a low insertion loss Voltage Variable RF Attenuator (VVA) covering a broad frequency range from 5MHz to 3000MHz. In addition to providing low insertion loss, the F2270 provides excellent linearity performance over its entire voltage control and attenuation range. The device uses a single positive supply voltage of 3.15V to 5.5V. Other features include the VMODE pin allowing either positive or negative voltage control slope vs. attenuation and multi-directional operation, meaning the RF input can be applied to either RF1 or RF2 pins. Control voltage ranges from 0V to 5V using either positive or negative control voltage slope.
特性
- Low Insertion Loss: 1.1dB at 300MHz
- Typical/Minimum IIP3 > 50MHz: 62dBm/46dBm
- Typical/Minimum IIP2 > 50MHz: 98dBm/77dBm
- Up to 35dB attenuation range
- Bidirectional RF ports
- +36dBm input P1dB compression

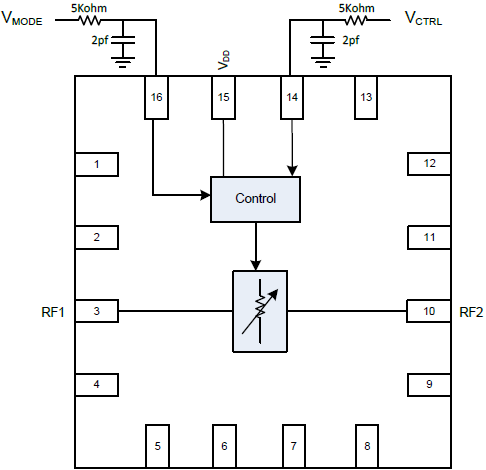

- VMODE pin allows either positive or negative attenuation control response
- Linear-in-dB attenuation characteristic > 50MHz
- Supply voltage: 3.15V to 5.50V
- VCTRL range: 0V to 5.0V
- +105 °C maximum operating temperature

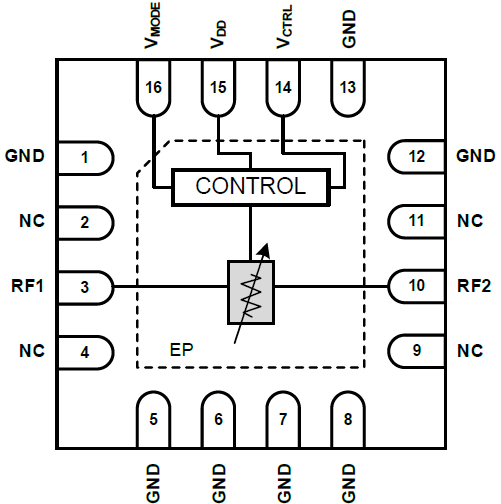

- 3mm x 3mm, 16-QFN package
产品对比
应用
文档
相关文档
请登录后开启订阅
|
|
|
|
|---|---|---|
| 类型 | 文档标题 | 日期 |
| 数据手册 | PDF 4.69 MB | |
| 指南 | PDF 2.24 MB | |
| 产品简述 | PDF 395 KB | |
| 产品变更通告 | PDF 5.71 MB | |
| 产品变更通告 | PDF 5.61 MB | |
| 产品变更通告 | PDF 51 KB | |
| 应用简介 | PDF 686 KB | |
7 items
|
||
设计和开发
开发板与套件
评估
F2270EVBI
有效
Evaluation Board for F2270, 75 Ohm, Voltage Variable RF Attenuator
The F2270EVBI is a fully populated evaluation board which allows the customer to easily evaluate the F2270 Voltage Variable Attenuator. Attenuation slope may be set to either positive or negative attenuation slope using the on-board jumper pins.
