概览

描述

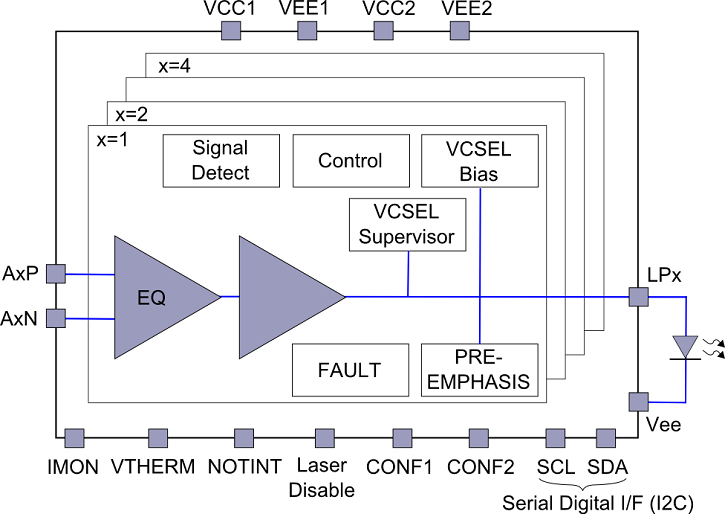

The HXT8204 VCSEL driver array is a key component for compact, robust, low-power optical transmitter modules. In conjunction with the VCSEL array, the chip handles the complete digital-to-optical conversion, including CML input, laser driver, drive control, and supervision. Standard silicon technology and a small number of additional components allow for cost-effective and compact assemblies.

特性

  • Low power consumption of 113mW per channel while delivering 5mA average and 5mA modulation current
  • Compatible with common cathode and isolated VCSEL arrays
  • 2-wire interface control and symmetric pad design maximize module design flexibility
  • Up to 10mA Average and 10mA modulation current
  • QSFP MSA compliant

产品对比

应用

文档

类型 文档标题 日期
数据手册 - 精简版 PDF 86 KB
数据手册 登录后下载 PDF 1.05 MB
EOL 通告 PDF 1.43 MB
产品咨询 PDF 115 KB
产品咨询 PDF 114 KB
产品变更通告 PDF 134 KB
6 items

设计和开发

模型

ECAD 模块

点击产品选项表中的产品,查找 SamacSys 中的原理图符号、PCB 足迹和 3D CAD 模型。点击产品选项表中的产品,查找 SamacSys 中的原理图符号、PCB 足迹和 3D CAD 模型。


Diagram of ECAD Models
