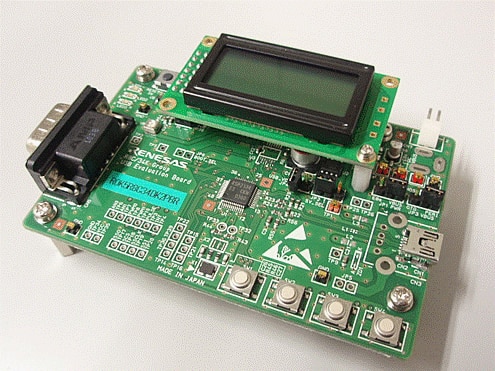

The R0K5R8C34DK2PBR evaluation board is mounted with R8C/34K Group MCU, so it is suitable for software development and functional evaluation as USB Peripheral device. This Evaluation Board can be used when you are considering about R8C/34U Group MCU, 3MK Group and 3MU Group.
Notice
This product does not bundle with the power supply and the development tools. Prepare the following items before using this evaluation board.
- Power Supply 5V and 3V
- R8C Family C/C++ Compiler Package
- E8a emulator
特性
- This Evaluation Board has USB mini B receptacle and USB VBUS control IC, so it is available for USB Peripheral device
- Mounted the connector for the E8a emulator manufactured by Renesas Electronics Corp.
- This board has LCD module, LEDs, user switches as user I/F, so it is suitable for debug and functional evaluation
- MCU ports are extracted to the board surface as test pins, this board enables the connection of external devices
- The sample programs for USB function and each module of MCU are provided, you can immediately begin software development and functional evaluation
- Attached are the circuit diagram and parts list, which serve as useful references for circuit design and debugging
