RTK0EMA330S00020BJ

有效

MCK-RA6T3 瑞萨适用于RA6T3 MCU群组的灵活电机控制套件

立即订购
MCK-RA6T3 User's ManualMCK-RA6T3 Quick Start Guide

概览

MCK-RA6T3 是一款便于评估使用永磁同步电机（无刷直流电机）的电机控制的开发套件。

通过使用本产品以及可从网站下载的样例程序和QE for Motor，即刻开始使用RA6T3进行电机控制评估。

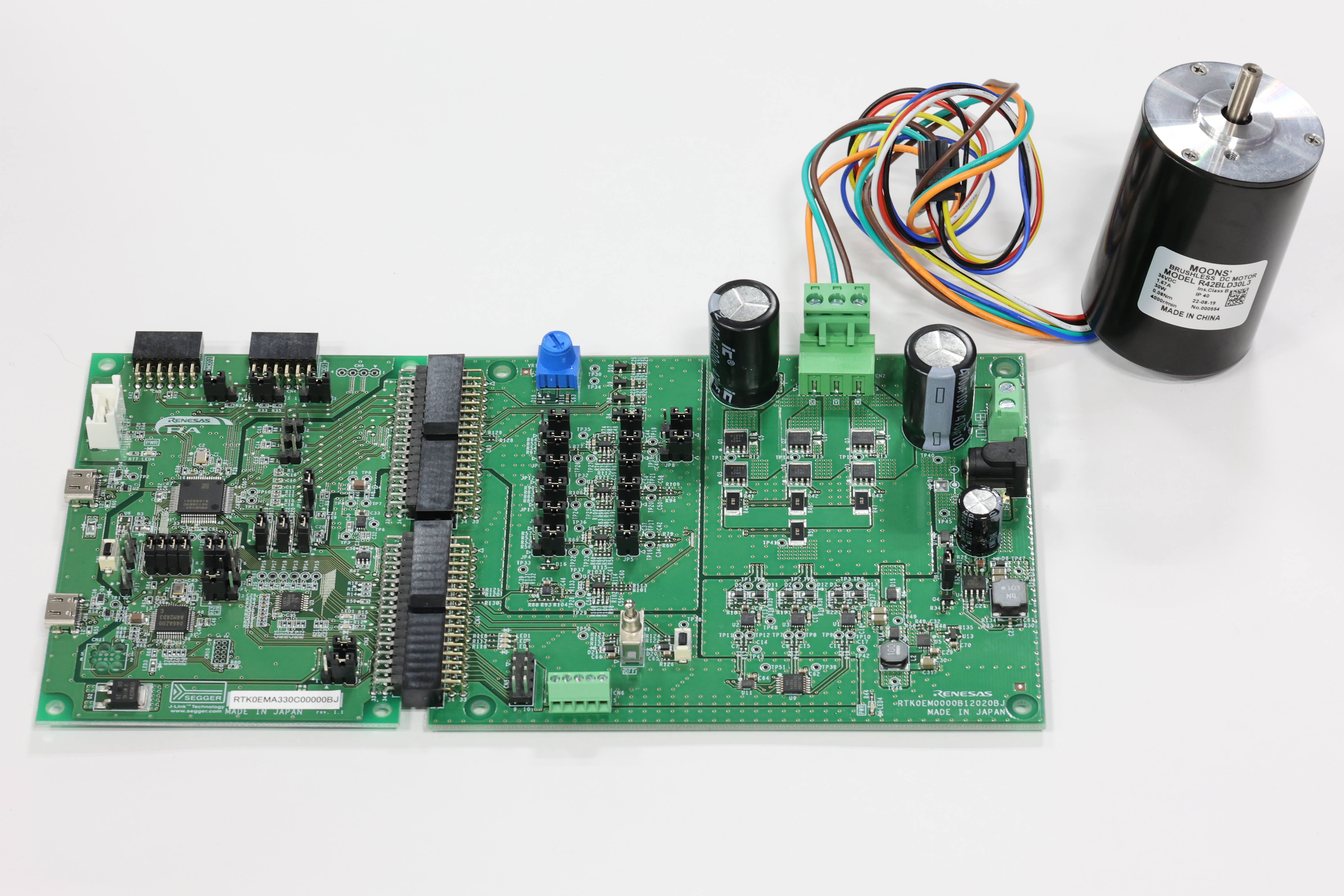

MCK-RA6T3
MCK-RA6T3
  • CPU 板搭载 RA6T3 作为电机控制 MCU。
  • 用于 3 相 BLDC 电机（额定功率 48V/10A）的变频器电路板
  • 用于 RA6T3 闪存编程的板载调试器
  • 支持单分流/三分流方式电流检测
  • 过载电流检测
  • 支持电机控制开发支持工具“Renesas Motor Workbench”
  • 支持霍尔传感器、编码器和感应式位置传感器
  • 包含的组件
    • RA6T3 CPU 板 (MCB-RA6T3)
    • 变频器电路板 (MCI-LV-1)
    • 永磁同步电机
    • 配件（电缆、支座等）

文档

设计和开发

软件与工具
QE: Tools for Particular Applications
A group of utilities which extends integrated development environment (Tools for Particular Applications: USB, TCP/IP, Bluetooth® low energy, Camera, LCD, Capacitive Touch Sensors, and Current Consumption Tuning etc.)
下载
[Upgrade to Revision] Solution Toolkit QE for Motor V1.3.0: Development Assistance Tool for Motor[Upgrade to Revision] Solution Toolkit QE for Motor V1.4.0: Development Assistance Tool for Motor
 Solution Toolkit 瑞萨电子
Renesas Motor Workbench
Renesas Motor Workbench is a development support tool for debugging, analyzing, and tuning motor control programs.
下载
Sensorless vector control for dual permanent magnetic synchronous motor (For MCK/MCB, RA Family)Sensorless vector control for dual permanent magnetic synchronous motor (For MCK/MCB, RA Family)Vector control for permanent magnetic synchronous motor with hall sensors (For MCK/MCB, RA Family)Vector control for permanent magnetic synchronous motor with hall sensors (For MCK/MCB, RA Family)Sensorless Vector Control for Permanent Magnet Synchronous Motor (For MCK/MCB, RA Family)
Sensorless Vector Control for Permanent Magnet Synchronous Motor (For MCK/MCB, RA Family)Sensorless Vector Control with one shunt for Permanent Magnet Synchronous Motor (For MCK/MCB, RA Family)Sensorless Vector Control with one shunt for Permanent Magnet Synchronous Motor (For MCK/MCB, RA Family)Vector Control for Permanent Magnet Synchronous Motor with Encoder (For MCK/MCB, RA Family)Vector Control for Permanent Magnet Synchronous Motor with Encoder (For MCK/MCB, RA Family)Vector Control for Permanent Magnet Synchronous Motor with Inductive Sensor (For MCK/MCB, RA Family)Vector Control for Permanent Magnet Synchronous Motor with Inductive Sensor (For MCK/MCB, RA Family)120-degree Conducting Control of Permanent Magnet Synchronous Motor with Hall Sensors (For MCK/MCB, RA Family)120-degree Conducting Control of Permanent Magnet Synchronous Motor with Hall Sensors (For MCK/MCB, RA Family)Sensorless 120-degree Conducting Control of Permanent Magnet Synchronous Motor (For MCK/MCB, RA Family)Sensorless 120-degree Conducting Control of Permanent Magnet Synchronous Motor (For MCK/MCB, RA Family)
 Solution Toolkit 瑞萨电子
