车载逆变器用于将直流电流转换为交流电,该交流电用于电动汽车的电机中。该套件结合了MCU,电源管理IC,栅极驱动器IC,隔离栅极双极晶体管(IGBT)和快恢复二极管(FRD),使高性能HEV / EV电机,实用的硬件设计得到最大限度的使用。此外,还提供 xEV 逆变器应用模型和软件。
满足以下条件的人可以要求本页面的文档和软件,并在NDA以及付费契约签署后即可下载。
特性
- 用于xEV 100kW级电动机的逆变器规格
- 使用xEV 逆变器应用模型和软件可以快速入门,开始进行开发,评测。

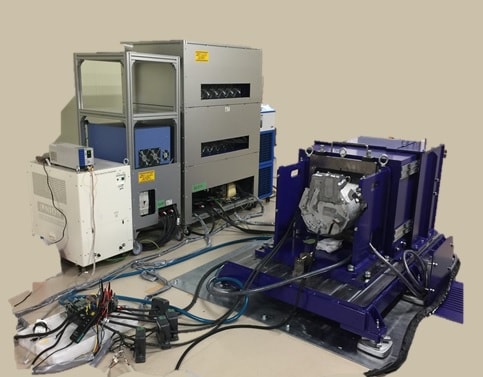

- 通过利用瑞萨的电机测试台架和工程支持部门高效而又专业的团队,不但可以尽早发现并解决客户的问题,而且可以不断的尝试新的想法。
- 通过高度集成的产品和温度控制实现3.9L的紧凑型容量
- 极高的功率效率,逆变器效率高达99%
- 每个功能均已在实际车辆中得到证明
- 高精度传感器纠错功能
- 系统规格 (1 motor)
- Rated capacity: Maximum 410V x 500A =205kVA (10sec)
- Output power: 40kW (continuous), 100kW (10sec)
- Output current: 200ARMS (continuous), 500ARMS (10sec)
- Input voltage: 270-410V @100kW
- Volume: 3.9L
- Carrier frequency: 4-12kHz@single sampling, 4-6kHz@double sampling
- Cooling: Water Cooling (50% LLC mixture)
- Rotation speed: 10500rpm (Depends on Dyno)
- External IF: CAN-FD (3ch), SCI (1ch), JTAG
