描述
An xEV (Electric Vehicle) runs on a motor or combination of motor and internal combustion engine, and the motor is controlled by the xEV Inverter.
The “xEV Inverter Application Model and Software” provides a sample application model and software to control the motor, reducing software development effort and time during product development using the xEV inverter kit.
This software/model and application note can be requested by those who satisfy the following conditions and will be downloadable only after signing an NDA and a paid contract.
- You can sign in to your My Renesas account. (only corporate e-mail addresses are acceptable)
*If you do not have an account, please sign up for one. - You have already purchased the kit that works with this software.
- It is not to be used by a competitor's related trading company, for personal use, or for research purposes, etc.

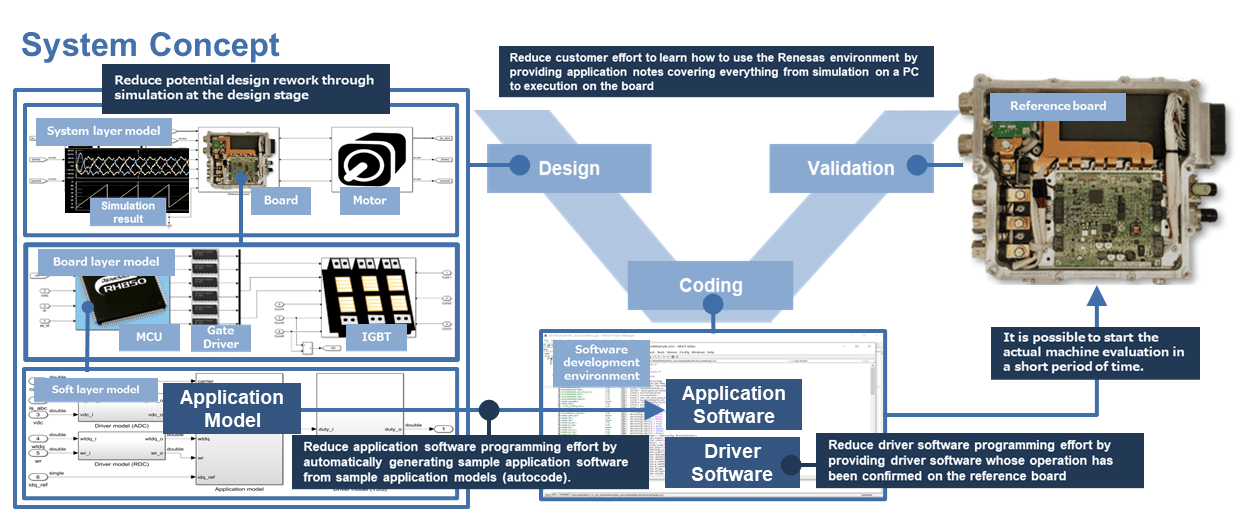

特性
- Reduce potential design rework through simulation at the design stage by using a sample application model and a sample IGBT model, motor model of MATLAB®/Simulink®.
- Reduce application software programming effort by automatically generating sample application software from sample application models (autocode).
- Reduce driver software programming effort by providing driver software whose operation has been confirmed on the reference board of the inverter kit for xEV (electric vehicle), it is possible to start the actual machine evaluation in a short period of time.
- Reduce customer effort to learn how to use the Renesas environment from simulation on a PC to execution on the board by providing application notes covering everything from simulation on a PC to execution on the board
目标设备
设计和开发
相关评估板和套件
参考设计
用于xEV(电动汽车)的逆变器套件
车载逆变器用于将直流电流转换为交流电，该交流电用于电动汽车的电机中。该套件结合了MCU，电源管理IC，栅极驱动器IC，隔离栅极双极晶体管（IGBT）和快恢复二极管（FRD），使高性能HEV / EV电机，实用的硬件设计得到最大限度的使用。此外，还提供 xEV 逆变器应用模型和软件。
满足以下条件的人可以要求本页面的文档和软件，并在NDA以及付费契约签署后即可下载。
