RL78/F23 新一代超低功耗汽车微控制器非常适用于实现未来高可靠性的智能执行器和传感器,以及低端车身 ECU。 作为对现有 RL78/F1x MCU 的创新扩展,RL78/F23 可满足未来市场的多种需求。 RL78/F23 具有更高的 CPU 性能、耐高温能力和增强的外设功能集,非常适合各种应用。

RL78/F2x 系列产品按 ISO 26262 标准设计而成,支持高达 ASIL B 的功能安全 (FuSa)。 可支持高达 EVITA-Light 或更高的安全标准。 AES 加密模块可处理高达 256 位的密钥长度,并支持安全启动和身份验证功能。 为了进一步提高 BLDC (FOC) 电机控制和 DC/DC 控制系统的计算性能,RL78/F2x 配备了独特的应用加速器 IP,以减轻复杂的三角函数和其它计算处理所带来的负荷。

RL78/F2x MCU 的硬件和软件与 RL78/F1x 完全兼容,可实现软件重用。

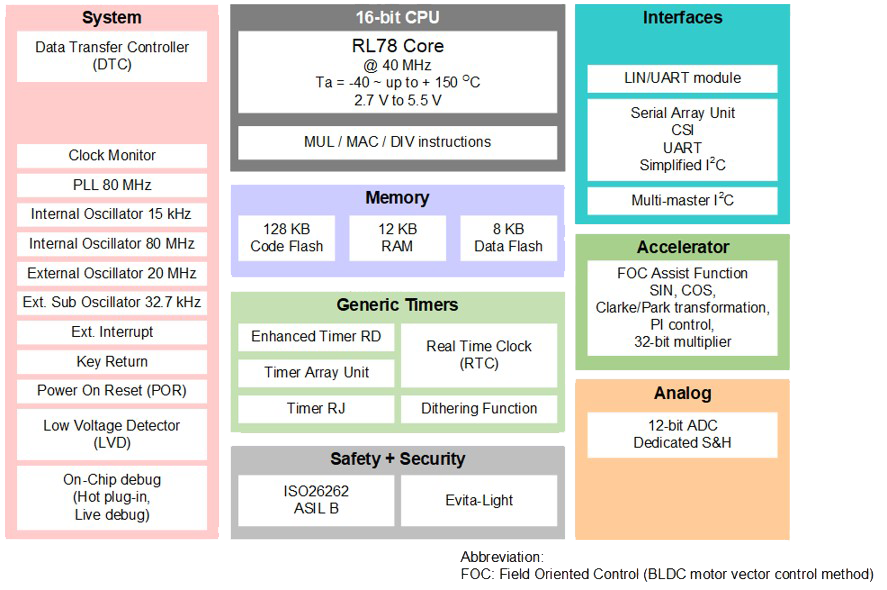

特性

  • 主要特性
    • RL78 内核,最大时钟频率 40MHz
    • 128KB 闪存
    • 12KB RAM
    • 12 位模数转换器
    • 电机控制:DC 和 BLDC - 磁场定向控制
    • 应用程序加速器单元
    • 经优化的 DC/DC 转换器支持
    • 高温支持:高达 Ta = 150°C
    • 超低功耗
  • 采用最先进水平的接口
    • LIN、UART、SPI、I2C、SENT
    • 16 x PWM 输出
  • 支持功能安全和信息安全
    • 支持 EVITA-Light 的安全模块
    • ISO 26262 ASIL B
  • 具有完整的生态系统,可支持与工具、硬件和软件领域相关的最新标准

产品对比

应用

  • 智能执行器
  • 传感器 ECU
  • 低端车身 ECU
