概览

Multifunctional microcontrollers with enhanced functionality suitable for sensorless BLDC motor control.

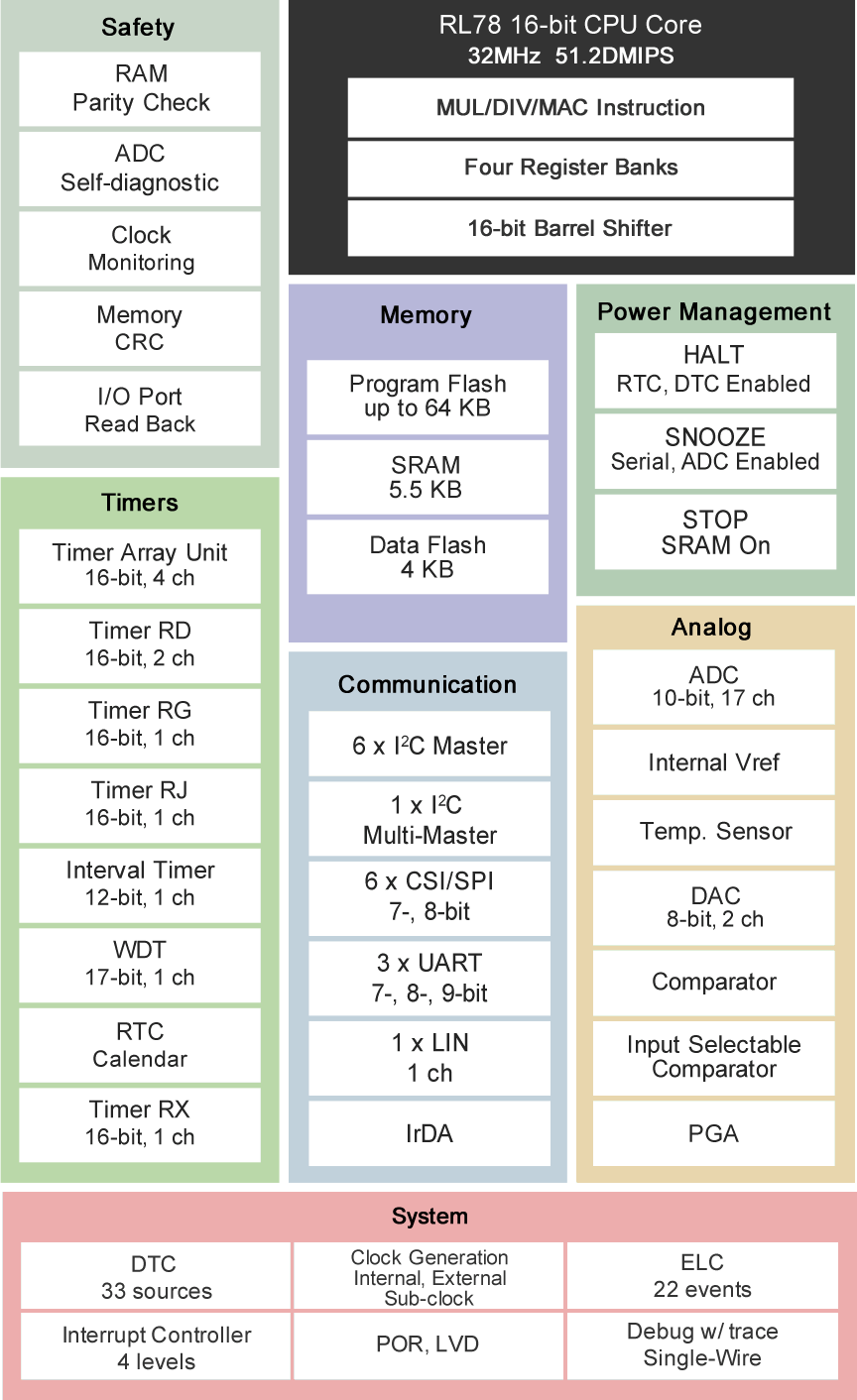

RL78/G1F Block Diagram
RL78/G1F Block Diagram
  • CPU: RL78 core, Max. 32MHz
  • Voltage: 1.6V to 5.5V
  • Package: 24-pin HWQFN, 48 to 64-pin LFQFP, 32-pin LQFP, 36-pin WFLGA
  • Memory: SRAM Max. 5.5KB, Program Flash Max. 64KB
  • Timer: 16-bit Timer (ch) x 9, 8-bit Timer (ch) x 4, Watchdog Timer (ch) x 1, 12-bit interval timer
  • PWM: PWM Output x 9, 3-phase PWM Output Function
  • Analog function: 10-bit A/D Converter (ch) x 8, 8-bit D/A Converter (ch) x 2
  • On-chip Oscillator Freq. (MHz): 64, 48, 32, 24, 16, 12, 8, 6, 4, 3, 2, 1MHz
  • Others: RTC, Power-On Reset, Low Voltage Detection

应用

  • Office
  • Home
  • Motor Control

文档

设计和开发

软件与工具
FAT File System [M3S-TFAT-Tiny] for the RL78 Family
FAT file system for RL78 Family
 File System 瑞萨电子
RI78V4 V1 Real-time OS for RL78 Family and 78K0R
μITRON4.0 Specification real-time OS for RL78 Family and 78K0R [Required IDE : CS+]
 ITRON OS 瑞萨电子
RI78V4 V2 Real-time OS for RL78 Family
μITRON Specification real-time OS for RL78 Family [Required IDE : CS+]
ITRON OS 瑞萨电子
Sound Playback/Compression System [M3S-S2-Tiny] for RL78 Family
Sound playback system for RL78 Family
 Sound / Voice 瑞萨电子
AP4, Applilet
Peripheral I/O driver generator compatible with third-party compilers and GNU compiler (for RZ, V850, RX, RL78, and 78K)
 Code Generator 瑞萨电子
Code Generator Plug-in
Automatic driver generation tool for internal peripheral I/O modules through GUI settings [Standard features for Renesas IDE "e² studio" and CS+] [Support MCU/MPU: RL78, V850, 78K, RX]
 Code Generator 瑞萨电子
C Compiler Package for RL78 Family [CC-RL]
C Compiler Package for RL78 Family [IDE: CS+, e² studio]
 Compiler/Assembler 瑞萨电子
E2 emulator [RTE0T00020KCE00000R]
On-chip debugging emulator. Also available as a flash memory programmer. [Support MCU/MPU: RA, RE, RH850, R-Car D1, RL78, RX, RISC-V MCU]
下载
[Flyer] E2仿真器[RTE0T00020KCE00000R]Current Consumption Tuning Solution for RL78 family (E2 Emulator,CS+) Rev.1.00Current Consumption Tuning Solution for RL78 family (E2 Emulator, e² studio) Rev.1.00
 Emulator 瑞萨电子
E2 emulator Lite [RTE0T0002LKCE00000R]
On-chip debugging emulator. Also available as a flash memory programmer. [Support MCU/MPU: RA, RE, RL78, RX, RISC-V MCU]
 Emulator 瑞萨电子
PG-FP6
Flash memory programmer [Programming software: Dedicated GUI-based software, the "FP6 Terminal"] [Support MCU/MPU and devices: RA, RE, RX, RL78, RH850, RISC-V MCU, Renesas Synergy, Power Management, Renesas USB Power Delivery Family, ICs for Motor Driver/Actuator Driver, SuperH RISC engine, V850, 78K, R8C]
 Programmer (Unit/SW) 瑞萨电子
Renesas Flash Programmer (Programming GUI)
闪存编程软件 [支持 MCU/MPU 和器件：RA、RE、RX、RL78、RH850、RISC-V MCU Renesas Synergy、DA1453x、DA1459x、DA1469x、DA1470x、电源管理、Renesas USB Power Delivery Family、电机驱动器/执行器驱动器 IC、V850、78K0R、78K0]
 Programmer (Unit/SW) 瑞萨电子
Code Flash Libraries (Flash Self Programming Libraries)
Libraries for the reprogramming of code area flash memory, including EEPROM emulation libraries for the code areas of 78K-family products
 Self Programming Library (Flash Library) 瑞萨电子
Data Flash Libraries
Libraries for the reprogramming of data flash memory, including EEPROM emulation libraries for the data areas of RL78-family products
 Self Programming Library (Flash Library) 瑞萨电子
Simulator for e² studio of RL78 Family
Simulator for RL78 Family [Support IDE: e² studio] (Note: This product is included in the Renesas IDE "e² studio" and is not available separately.)
 Simulator 瑞萨电子
QE for Current Consumption: A Dedicated Tool for Current Measurement
Development assistance tool helps to shorten the times taken in operations for the tuning of currents drawn. [Standard item in the "e² studio" and CS+ (CS+ for CC only) IDEs] [Support MCU/MPU: RX, RL78]
下载
Current Consumption Tuning Solution for RL78 family (E2 Emulator, e² studio) Rev.1.00Current Consumption Tuning Solution for RL78 family (E2 Emulator,CS+) Rev.1.00
 Solution Toolkit 瑞萨电子
CS+
瑞萨电子集成开发环境（IDE）[支持 MCU/MPU：RH850、V850、RX、RL78、78K0R、78K0] （注意：CS+ 通常不会向美国和欧洲客户推广。 （注意：要在 CS+ 上对 RL78/G23 和 RX 系列 MCU 使用智能配置器，请为每个 MCU 系列安装智能配置器，从“设计和支持”>“开发工具”>“智能配置器”下载）
 IDE and Coding Tool 瑞萨电子
RL78 Web Simulator
Right online tools to support initial evaluation of the low power consumption RL78 Family. Lineup: MCU Simulator Online and Current Consumption Calculator. Free of charge.
 Simulator 瑞萨电子
Sensor Software Modules for Renesas MCU Platforms
Middleware (FIT module and FSP module) and sample software packages that enable control and data acquisition for Renesas sensor products.
下载
HS300x Sample application - Sample CodeHS300x Sample application - Sample CodeRL78 Family Renesas Sensor Control Modules Software Integration System Rev.1.60RL78 Family Sensor I2C Communication Middleware Control Module Software Integration SystemRL78 Family FS2012 Sensor Control Module Software Integration System Rev.1.12
RL78 Family ZMOD4410, ZMOD4450 and ZMOD4510 Sensor Control Module Software Integration System Rev.1.22RL78 Family Sensor I2C Communication Middleware Control Module Software Integration SystemRL78 Family FS2012 Sensor Control Module Software Integration System Rev.1.12RL78 Family ZMOD4410, ZMOD4450 and ZMOD4510 Sensor Control Module Software Integration System Rev.1.22 - Sample CodeRL78 Family OB1203 Sensor Control Module Software Integration SystemRL78 Family OB1203 Sensor Control Module Software Integration SystemRL78 Family FS1015 Sensor Control Module Software Integration SystemRL78 Family FS1015 Sensor Control Module Software Integration SystemRL78 Family HS400X Sensor Control Module Software Integration System Rev.1.02RL78 Family HS400X Sensor Control Module Software Integration System Rev.1.02
 Sensor 瑞萨电子
e² studio - information for RL78 Family
Eclipse-based Renesas integrated development environment (IDE).
IDE and Coding Tool 瑞萨电子
EZ-CUBE3
EZ-CUBE3（CYRCNEZCUBE03）是具有Flash存储器编程功能的片上调试仿真器，可以用于调试MCU程序或将程序烧写到MCU的内置Flash中。
 Emulator 瑞萨电子
QE for Motor: Development Assistance Tool for Motor Applications
The development assistance tool that supports the development of motor software for MCUs. It allows to configure motor middleware and drivers easily, and tune and analyze motors with Renesas Motor Workbench. [Plugin for Renesas IDE "e² studio"] [Support MCU/MPU: RA, RX, RL78]
 Solution Toolkit 瑞萨电子
Renesas Motor Workbench
Renesas Motor Workbench is a development support tool for debugging, analyzing, and tuning motor control programs.
 Solution Toolkit 瑞萨电子
Crypto Library
Robust encode library to ensure security for all types of system developments
 Security / Crypto 瑞萨电子
SPI/QSPI Serial Flash Memory, QSPI Serial Phase Change Memory Driver
Device Driver for SPI and QSPI Serial Flash Memory and QSPI Serial Phase Change Memory
下载
RX Family, RL78 Family, 78K0R/Kx3-L Macronix International MX25/66L Family Serial NOR Flash Memory Control Software Rev.1.04 - Sample CodeRX Family, RL78 Family, 78K0R/Kx3-L Macronix International MX25/66L Family Serial NOR Flash Memory Control Software Rev.1.04
 Serial Memory 瑞萨电子
IAR Embedded Workbench for Renesas RL78
IAR Embedded Workbench provides extensive support for RL78 devices. IAR Embedded Workbench is a complete set of development tools with leading optimization technology for creating powerful automotive applications.
 IDE and Coding Tool IAR Systems
Renesas IAR Embedded Workbench Device-Support-Packages
Renesas IAR Embedded Workbench Device-Support-Packages include all device-specific files to be used with the Embedded Workbench IDE.
 IDE and Coding Tool 瑞萨电子
Add 8 hidden items
26 items

软件下载
类型 文档标题 日期
软件和工具 - 其他
RL78/G1F 便携式真空吸尘器批量下载
登录后下载 ZIP 5.87 MB
Add 26 hidden items
1 item

开发板与套件

Handy Vacuum Cleaner Grid

Vacuum-Cleaner

演示
了解更多

便携式真空吸尘器演示套件

该便携式真空吸尘器可让您在两个吸尘能力操作等级之间切换：强力或标准。无传感器 3 相 BLDC 电机高速旋转，为每一级提供适当的吸力。电池驱动的无绳操作让您能够轻松进行单手吸尘！

该解决方案采用 RL78/G1F，其配备内置的可编程增益放大器 (PGA)、比较器（COMP0）和脉冲宽度调制...

特色文件:
RL78/G1F Handy Vacuum Cleaner
RX24T CPU Card

MOTOR-CPU-CARD

入门
了解更多

电机控制 CPU 卡

用户可以将电机控制 CPU 卡用于无刷直流（BLDC）电机评估系统。 通过 CPU 卡和评估系统，用户可以利用瑞萨电子提供的相应微控制器轻松评估电机控制。

该页面的 CPU 卡尚未确认是否符合 RoHS2 标准。

YQB-R5F11BLE-TB

YQB-R5F11BLE-TB

评估
了解更多

RL78/G1F (R5F11BLEAFB) Target Board

The YQB-R5F11BLE-TB is a target board used for evaluating RL78/G1F microcontroller operations using a Renesas E1 or E2 Lite on-chip debugging emulator/flash programmer.

RAA306012 3-Phase Smart Gate Driver Solution Starter Kit

RTK0EM00F0S00020BJ

入门
了解更多

RAA306012 3 相智能栅极驱动器解决方案入门套件

RAA306012 瑞萨电子解决方案入门套件 (RTK0EM00F0S00020BJ) 用于对使用 RAA306012 3 相智能栅极驱动器电机控制 IC 及 RX13T 和 RL78/G1F 微控制器 (MCU) 的 BLDC 电机系统进行评估。 该入门套件由一块装有 RAA306012 的电路板、一块带 RX13T 32 位...

特色文件:
RAA306012 RSSK User's Manual Rev.1.00

ECAD 模块

Schematic symbols, PCB footprints, and 3D CAD models from SamacSys can be found by clicking on products in the Product Options table. If a symbol or model isn't available, it can be requested directly from the website.

扩展 ECAD 模块
Diagram of ECAD Models

产品选择

    Processing table
    PLP
    Program Memory (KB)
    RAM (KB)
    Lead Count (#)
    Bit Size
    CPU
    Data Flash (KB)
    Supply Voltage (V)
    Operating Freq (Max) (MHz)
    RTC
    LVD
    DMA
    I/O Ports
    Timer
    ADC
    DAC
    CAN (ch)
    Ethernet
    USB
    Human Machine Interface
    Temp. Range
    Moisture Sensitivity Level (MSL)
    Price (USD) | 1ku
    购买 / 样片
    器件号
    R5F11BBEAFP#50
    circle有效
    memory
    view_in_ar
    		2034 12月 64 5.5 32 16 RL78 4 1.6 - 5.5 32 是 是 No 28 12-bit x 1-ch, 16-bit x 9-ch 10-bit x 13-ch 8-bit x 2-ch 0 No -40 to 85°C 3
    R5F11BCCALA#U0
    circle有效
    memory
    view_in_ar
    		2028 12月 32 5.5 36 16 RL78 4 1.6 - 5.5 32 是 是 No 31 12-bit x 1-ch, 16-bit x 9-ch 10-bit x 15-ch 8-bit x 2-ch 0 No -40 to 85°C 3
    R5F11BBCAFP#50
    circle有效
    memory
    view_in_ar
    		2034 12月 32 5.5 32 16 RL78 4 1.6 - 5.5 32 是 是 No 28 12-bit x 1-ch, 16-bit x 9-ch 10-bit x 13-ch 8-bit x 2-ch 0 No -40 to 85°C 3
    R5F11BCEALA#U0
    circle有效
    memory
    view_in_ar
    		2028 12月 64 5.5 36 16 RL78 4 1.6 - 5.5 32 是 是 No 31 12-bit x 1-ch, 16-bit x 9-ch 10-bit x 15-ch 8-bit x 2-ch 0 No -40 to 85°C 3
    R5F11BCEALA#W0
    circle有效
    memory
    view_in_ar
    		2028 12月 64 5.5 36 16 RL78 4 1.6 - 5.5 32 是 是 No 31 12-bit x 1-ch, 16-bit x 9-ch 10-bit x 15-ch 8-bit x 2-ch 0 No -40 to 85°C 3
    R5F11BGCAFB#50
    circle有效
    memory
    view_in_ar
    立即购买
    		2034 12月 32 5.5 48 16 RL78 4 1.6 - 5.5 32 是 是 No 44 12-bit x 1-ch, 16-bit x 9-ch 10-bit x 17-ch 8-bit x 2-ch 0 No -40 to 85°C 3 1.236
    R5F11BCCALA#W0
    circle有效
    memory
    view_in_ar
    		2028 12月 32 5.5 36 16 RL78 4 1.6 - 5.5 32 是 是 No 31 12-bit x 1-ch, 16-bit x 9-ch 10-bit x 15-ch 8-bit x 2-ch 0 No -40 to 85°C 3
    R5F11BGEAFB#50
    circle有效
    memory
    view_in_ar
    		2034 12月 64 5.5 48 16 RL78 4 1.6 - 5.5 32 是 是 No 44 12-bit x 1-ch, 16-bit x 9-ch 10-bit x 17-ch 8-bit x 2-ch 0 No -40 to 85°C 3
    R5F11BLCAFB#50
    circle有效
    memory
    view_in_ar
    		2034 12月 32 5.5 64 16 RL78 4 1.6 - 5.5 32 是 是 No 58 12-bit x 1-ch, 16-bit x 9-ch 10-bit x 17-ch 8-bit x 2-ch 0 No -40 to 85°C 3
    R5F11BLEAFB#50
    circle有效
    memory
    view_in_ar
    		2034 12月 64 5.5 64 16 RL78 4 1.6 - 5.5 32 是 是 No 58 12-bit x 1-ch, 16-bit x 9-ch 10-bit x 17-ch 8-bit x 2-ch 0 No -40 to 85°C 3
    R5F11BBEGFP#50
    circle有效
    memory
    view_in_ar
    		2034 12月 64 5.5 32 16 RL78 4 1.6 - 5.5 32 是 是 No 28 12-bit x 1-ch, 16-bit x 9-ch 10-bit x 13-ch 8-bit x 2-ch 0 No -40 to 105°C 3
    R5F11BBCGFP#50
    circle有效
    memory
    view_in_ar
    		2034 12月 32 5.5 32 16 RL78 4 1.6 - 5.5 32 是 是 No 28 12-bit x 1-ch, 16-bit x 9-ch 10-bit x 13-ch 8-bit x 2-ch 0 No -40 to 105°C 3
    R5F11BCCGLA#U0
    circle有效
    memory
    view_in_ar
    		2028 12月 32 5.5 36 16 RL78 4 1.6 - 5.5 32 是 是 No 31 12-bit x 1-ch, 16-bit x 9-ch 10-bit x 15-ch 8-bit x 2-ch 0 No -40 to 105°C 3
    R5F11BCCGLA#W0
    circle有效
    memory
    view_in_ar
    		2028 12月 32 5.5 36 16 RL78 4 1.6 - 5.5 32 是 是 No 31 12-bit x 1-ch, 16-bit x 9-ch 10-bit x 15-ch 8-bit x 2-ch 0 No -40 to 105°C 3
    R5F11BCEGLA#U0
    circle有效
    memory
    view_in_ar
    		2028 12月 64 5.5 36 16 RL78 4 1.6 - 5.5 32 是 是 No 31 12-bit x 1-ch, 16-bit x 9-ch 10-bit x 15-ch 8-bit x 2-ch 0 No -40 to 105°C 3
    R5F11BCEGLA#W0
    circle有效
    memory
    view_in_ar
    		2028 12月 64 5.5 36 16 RL78 4 1.6 - 5.5 32 是 是 No 31 12-bit x 1-ch, 16-bit x 9-ch 10-bit x 15-ch 8-bit x 2-ch 0 No -40 to 105°C 3 2.192
    R5F11BGCGFB#50
    circle有效
    memory
    view_in_ar
    		2034 12月 32 5.5 48 16 RL78 4 1.6 - 5.5 32 是 是 No 44 12-bit x 1-ch, 16-bit x 9-ch 10-bit x 17-ch 8-bit x 2-ch 0 No -40 to 105°C 3
    R5F11BGEGFB#50
    circle有效
    memory
    view_in_ar
    		2034 12月 64 5.5 48 16 RL78 4 1.6 - 5.5 32 是 是 No 44 12-bit x 1-ch, 16-bit x 9-ch 10-bit x 17-ch 8-bit x 2-ch 0 No -40 to 105°C 3
    R5F11BLCGFB#50
    circle有效
    memory
    view_in_ar
    		2034 12月 32 5.5 64 16 RL78 4 1.6 - 5.5 32 是 是 No 58 12-bit x 1-ch, 16-bit x 9-ch 10-bit x 17-ch 8-bit x 2-ch 0 No -40 to 105°C 3
    R5F11BLEGFB#50
    circle有效
    memory
    view_in_ar
    		2034 12月 64 5.5 64 16 RL78 4 1.6 - 5.5 32 是 是 No 58 12-bit x 1-ch, 16-bit x 9-ch 10-bit x 17-ch 8-bit x 2-ch 0 No -40 to 105°C 3
    R5F11B7CANA#40
    circle有效
    memory
    view_in_ar
    		2035 12月 32 5.5 24 16 RL78 4 1.6 - 5.5 32 是 是 No 20 12-bit x 1-ch, 16-bit x 9-ch 10-bit x 8-ch 8-bit x 1-ch 0 No -40 to 85°C 3
    R5F11B7EANA#40
    circle有效
    memory
    view_in_ar
    		2035 12月 64 5.5 24 16 RL78 4 1.6 - 5.5 32 是 是 No 20 12-bit x 1-ch, 16-bit x 9-ch 10-bit x 8-ch 8-bit x 1-ch 0 No -40 to 85°C 3
    R5F11B7CGNA#40
    circle有效
    memory
    view_in_ar
    		2035 12月 32 5.5 24 16 RL78 4 1.6 - 5.5 32 是 是 No 20 12-bit x 1-ch, 16-bit x 9-ch 10-bit x 8-ch 8-bit x 1-ch 0 No -40 to 105°C 3
    R5F11B7EGNA#40
    circle有效
    memory
    view_in_ar
    		2035 12月 64 5.5 24 16 RL78 4 1.6 - 5.5 32 是 是 No 20 12-bit x 1-ch, 16-bit x 9-ch 10-bit x 8-ch 8-bit x 1-ch 0 No -40 to 105°C 3
    R5F11BBCANA#40
    circle有效
    memory
    view_in_ar
    		2035 12月 32 5.5 32 16 RL78 4 1.6 - 5.5 32 是 是 No 28 12-bit x 1-ch, 16-bit x 9-ch 0 No -40 to 85°C 3
    R5F11BBCGNA#40
    circle有效
    memory
    view_in_ar
    		2035 12月 32 5.5 32 16 RL78 4 1.6 - 5.5 32 是 是 No 28 12-bit x 1-ch, 16-bit x 9-ch 0 No -40 to 105°C 3
    R5F11BBEANA#40
    circle有效
    memory
    view_in_ar
    		2035 12月 64 5.5 32 16 RL78 4 1.6 - 5.5 32 是 是 No 28 12-bit x 1-ch, 16-bit x 9-ch 0 No -40 to 85°C 3
    R5F11BBEGNA#40
    circle有效
    memory
    view_in_ar
    		2035 12月 64 5.5 32 16 RL78 4 1.6 - 5.5 32 是 是 No 28 12-bit x 1-ch, 16-bit x 9-ch 0 No -40 to 105°C 3
    R5F11BBCAFP#10
    circle有效
    memory
    view_in_ar
    立即购买
    		2034 12月 32 5.5 32 16 RL78 4 1.6 - 5.5 32 是 是 No 28 12-bit x 1-ch, 16-bit x 9-ch 10-bit x 13-ch 8-bit x 2-ch 0 No -40 to 85°C 3 0.8998
    R5F11BBCGFP#10
    circle有效
    memory
    view_in_ar
    立即购买
    		2034 12月 32 5.5 32 16 RL78 4 1.6 - 5.5 32 是 是 No 28 12-bit x 1-ch, 16-bit x 9-ch 10-bit x 13-ch 8-bit x 2-ch 0 No -40 to 105°C 3
    R5F11BBEAFP#10
    circle有效
    memory
    view_in_ar
    立即购买
    		2034 12月 64 5.5 32 16 RL78 4 1.6 - 5.5 32 是 是 No 28 12-bit x 1-ch, 16-bit x 9-ch 10-bit x 13-ch 8-bit x 2-ch 0 No -40 to 85°C 3 1.033
    R5F11BBEGFP#10
    circle有效
    memory
    view_in_ar
    立即购买
    		2034 12月 64 5.5 32 16 RL78 4 1.6 - 5.5 32 是 是 No 28 12-bit x 1-ch, 16-bit x 9-ch 10-bit x 13-ch 8-bit x 2-ch 0 No -40 to 105°C 3 1.503
    R5F11BGCAFB#10
    circle有效
    memory
    view_in_ar
    立即购买
    		2034 12月 32 5.5 48 16 RL78 4 1.6 - 5.5 32 是 是 No 44 12-bit x 1-ch, 16-bit x 9-ch 10-bit x 17-ch 8-bit x 2-ch 0 No -40 to 85°C 3 1.75
    R5F11BGCGFB#10
    circle有效
    memory
    view_in_ar
    立即购买
    		2034 12月 32 5.5 48 16 RL78 4 1.6 - 5.5 32 是 是 No 44 12-bit x 1-ch, 16-bit x 9-ch 10-bit x 17-ch 8-bit x 2-ch 0 No -40 to 105°C 3 1.368
    R5F11BGEAFB#10
    circle有效
    memory
    view_in_ar
    立即购买
    		2034 12月 64 5.5 48 16 RL78 4 1.6 - 5.5 32 是 是 No 44 12-bit x 1-ch, 16-bit x 9-ch 10-bit x 17-ch 8-bit x 2-ch 0 No -40 to 85°C 3 1.06
    R5F11BGEGFB#10
    circle有效
    memory
    view_in_ar
    立即购买
    		2034 12月 64 5.5 48 16 RL78 4 1.6 - 5.5 32 是 是 No 44 12-bit x 1-ch, 16-bit x 9-ch 10-bit x 17-ch 8-bit x 2-ch 0 No -40 to 105°C 3
    R5F11BLCAFB#10
    circle有效
    memory
    view_in_ar
    立即购买
    		2034 12月 32 5.5 64 16 RL78 4 1.6 - 5.5 32 是 是 No 58 12-bit x 1-ch, 16-bit x 9-ch 10-bit x 17-ch 8-bit x 2-ch 0 No -40 to 85°C 3 1.693
    R5F11BLCGFB#10
    circle有效
    memory
    view_in_ar
    		2034 12月 32 5.5 64 16 RL78 4 1.6 - 5.5 32 是 是 No 58 12-bit x 1-ch, 16-bit x 9-ch 10-bit x 17-ch 8-bit x 2-ch 0 No -40 to 105°C 3
    R5F11BLEAFB#10
    circle有效
    memory
    view_in_ar
    		2034 12月 64 5.5 64 16 RL78 4 1.6 - 5.5 32 是 是 No 58 12-bit x 1-ch, 16-bit x 9-ch 10-bit x 17-ch 8-bit x 2-ch 0 No -40 to 85°C 3
    R5F11BLEGFB#10
    circle有效
    memory
    view_in_ar
    		2034 12月 64 5.5 64 16 RL78 4 1.6 - 5.5 32 是 是 No 58 12-bit x 1-ch, 16-bit x 9-ch 10-bit x 17-ch 8-bit x 2-ch 0 No -40 to 105°C 3
    R5F11B7CANA#00
    circle有效
    memory
    view_in_ar
    		2035 12月 32 5.5 24 16 RL78 4 1.6 - 5.5 32 是 是 No 20 12-bit x 1-ch, 16-bit x 9-ch 10-bit x 8-ch 8-bit x 1-ch 0 No -40 to 85°C 3
    R5F11B7CGNA#00
    circle有效
    memory
    view_in_ar
    		2035 12月 32 5.5 24 16 RL78 4 1.6 - 5.5 32 是 是 No 20 12-bit x 1-ch, 16-bit x 9-ch 10-bit x 8-ch 8-bit x 1-ch 0 No -40 to 105°C 3
    R5F11B7EANA#00
    circle有效
    memory
    view_in_ar
    		2035 12月 64 5.5 24 16 RL78 4 1.6 - 5.5 32 是 是 No 20 12-bit x 1-ch, 16-bit x 9-ch 10-bit x 8-ch 8-bit x 1-ch 0 No -40 to 85°C 3
    R5F11B7EGNA#00
    circle有效
    memory
    view_in_ar
    		2035 12月 64 5.5 24 16 RL78 4 1.6 - 5.5 32 是 是 No 20 12-bit x 1-ch, 16-bit x 9-ch 10-bit x 8-ch 8-bit x 1-ch 0 No -40 to 105°C 3
    R5F11BBCANA#00
    circle有效
    memory
    view_in_ar
    		2035 12月 32 5.5 32 16 RL78 4 1.6 - 5.5 32 是 是 No 28 12-bit x 1-ch, 16-bit x 9-ch 10-bit x 13-ch 8-bit x 2-ch 0 No -40 to 85°C 3
    R5F11BBCGNA#00
    circle有效
    memory
    view_in_ar
    		2035 12月 32 5.5 32 16 RL78 4 1.6 - 5.5 32 是 是 No 28 12-bit x 1-ch, 16-bit x 9-ch 10-bit x 13-ch 8-bit x 2-ch 0 No -40 to 105°C 3
    R5F11BBEANA#00
    circle有效
    memory
    view_in_ar
    		2035 12月 64 5.5 32 16 RL78 4 1.6 - 5.5 32 是 是 No 28 12-bit x 1-ch, 16-bit x 9-ch 10-bit x 13-ch 8-bit x 2-ch 0 No -40 to 85°C 3
    R5F11BBEGNA#00
    circle有效
    memory
    view_in_ar
    		2035 12月 64 5.5 32 16 RL78 4 1.6 - 5.5 32 是 是 No 28 12-bit x 1-ch, 16-bit x 9-ch 10-bit x 13-ch 8-bit x 2-ch 0 No -40 to 105°C 3
    R5F11BBEAFP#70
    circle有效
    memory
    view_in_ar
    		N/A 64 5.5 32 16 RL78 4 1.6 - 5.5 32 是 是 No 28 12-bit x 1-ch, 16-bit x 9-ch 10-bit x 13-ch 8-bit x 2-ch 0 No No No -40 to 85°C 3
    R5F11BBCAFP#70
    circle有效
    memory
    view_in_ar
    		N/A 32 5.5 32 16 RL78 4 1.6 - 5.5 32 是 是 No 28 12-bit x 1-ch, 16-bit x 9-ch 10-bit x 13-ch 8-bit x 2-ch 0 No No No -40 to 85°C 3
    Parametric Table tips

    Tips for Using This Parametric Table:

    • Hide Filters button in header: Collapse or expands filters
    • Column sort buttons in header: Sort Column alphabetically / numerically descending or ascending
    • Reset button in header: Reset all filters to the page default
    • Full Screen button in header: Expand the table to full screen view (user must close out of full screen before they can interact with rest of page)
    • Export button in header: Export the filtered results of the table to an Excel document
    • Filter parts search bar in header: Type to filter table results by part number
    • Hide column button in column headers: Select to hide columns in table
    • AND / OR toggle switches in header: Toggles the logic of this particular filter to be “AND” or “OR” logic for filtering results
    • Multiselect checkboxes at beginning of each row in table: Select these checkboxes to compare products against each other
    • Document icon next to product name in row: View the featured document for this product
    • Chip icon next to the right of the document icon in row: View the block diagram for this product
    • Cart icon to the right of the chip icon: Indicates that samples are available for this product
