概览
描述
The Renesas Starter Kit+ for RX65N-2MB is the perfect starter kit for developers who are new to the RX65N (Code Flash 2MB, Pin Count 176-pin). The kit includes an LCD display module, on-chip debugging emulator, and integrated development environment so you can start evaluating the RX65N immediately after opening the box. Please use this product to experience the performance and functions of the RX65N.
特性

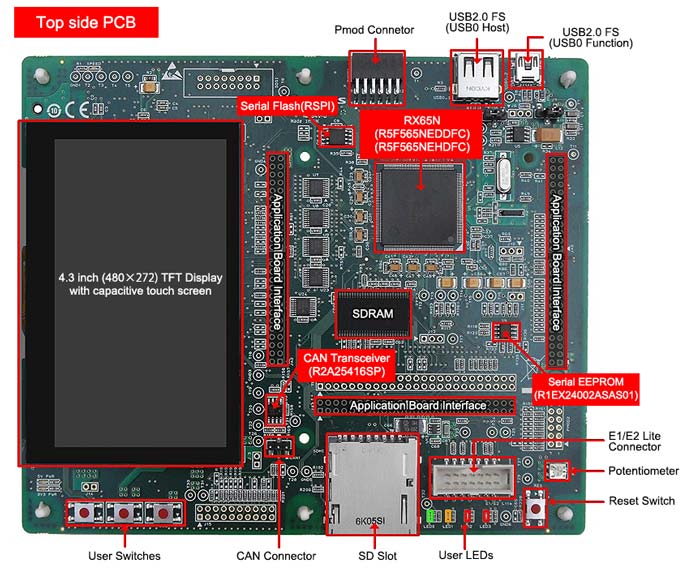

- Mounted devices: RX65N (R5F565NEDDFC: No Encrypt Function, Code Flash 2MB, Pin Count 176-pin), or RX65N (R5F565NEHDFC: Supported Encrypt Function, Code Flash 2MB, Pin Count 176-pin)
- Mounts TFT Display. Graphic LCD controller can be evaluated.

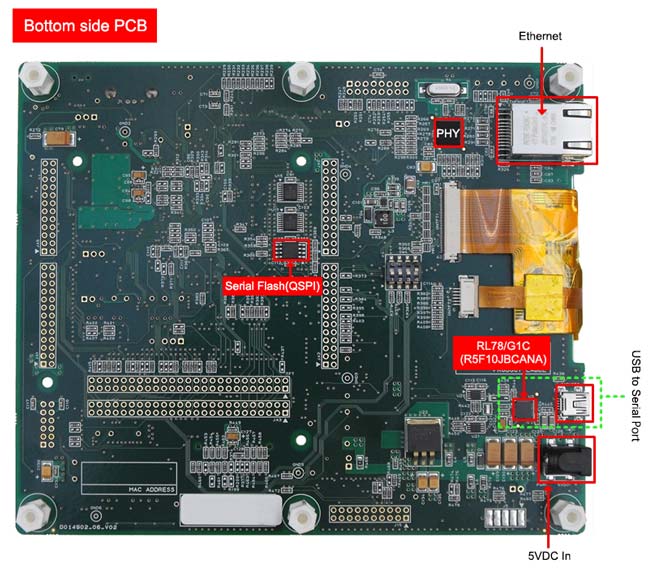

- 1 channel Ethernet can be evaluated.
- RX65N builds in Trusted Secure IP. AES encryption function and robust key management can be evaluated (*).
- Mounts SD slot. If an optional Wireless LAN expansion board package for RSK (RTK0ZZZZZZP00000BR#WS) is used, Wireless LAN can evaluated.
- 1 channel USB Function and 1 channel USB Host can be evaluated.
- In addition, CAN, RSPI, QSPI, etc. can be evaluated.
- Required IBM-PC compatible PC (need USB interface, Processor 1GHz over), OS: Windows 10/8/7 (other than the listed OS is not supported)
*The product part number (ordering number) differs according to whether or not the MCU includes the encryption function.
应用
设计和开发
软件与工具
样例程序
样例程序
筛选
|
||
|---|---|---|
| 类型 | 文档标题 | 日期 日期 |
| 示例代码 |
[Software=RX Driver Package|V1.47],[Toolchains=CC-RX|V3.07.00;GNURX|V8.3.0.202411;IAR Compiler for RX|v.5.10.1]
ZIP
58.90 MB
应用:
建筑自动化, 电器
Compiler:
CC-RX, GNURX, ICCRX
Function:
Driver or Library
IDE:
e² studio, IAR EWRX
|
|
| 示例代码 |
[Software=RX Driver Package|V1.45],[Toolchains=CC-RX|V3.06;GNURX|8.3.0.202405;IAR Compiler for RX|v.5.10.1]
ZIP
117.66 MB
应用:
消费电子产品
Compiler:
CC-RX, ICCRX
IDE:
e2 studio, GCC EWRX, IAR EWRX
|
|
| 示例代码 |
[Software=RX Driver Package|V1.39],[Toolchains=CC-RX|V3.06.00;GNURX|8.3.0.202202]
ZIP
198.17 MB
日本語
应用:
医疗与保健, 建筑自动化, 电器
Compiler:
CC-RX, GNURX
Function:
Application Example
IDE:
e2 studio
|
|
| 示例代码 | ZIP 9.98 MB | |
| 示例代码 |
ZIP
1.55 MB
应用:
工业, 消费电子产品
Compiler:
CC-RX, GNURX, ICCRX
Function:
Driver or Library
IDE:
CS+, e2 studio, IAR EWRX
|
|
| 示例代码 |
ZIP
73.75 MB
应用:
工业, 消费电子产品
Compiler:
CC-RX, GNURX, ICCRX
Function:
Driver or Library
IDE:
CS+, e2 studio, IAR EWRX
|
|
| 示例代码 | ZIP 55.98 MB 日本語 | |
| 示例代码 | ZIP 61.11 MB 日本語 Compiler: CC-RX IDE: CS+ | |
| 示例代码 | ZIP 60.70 MB 日本語 Compiler: CC-RX IDE: e2 studio | |
|
9 items
|
||
