概览
描述

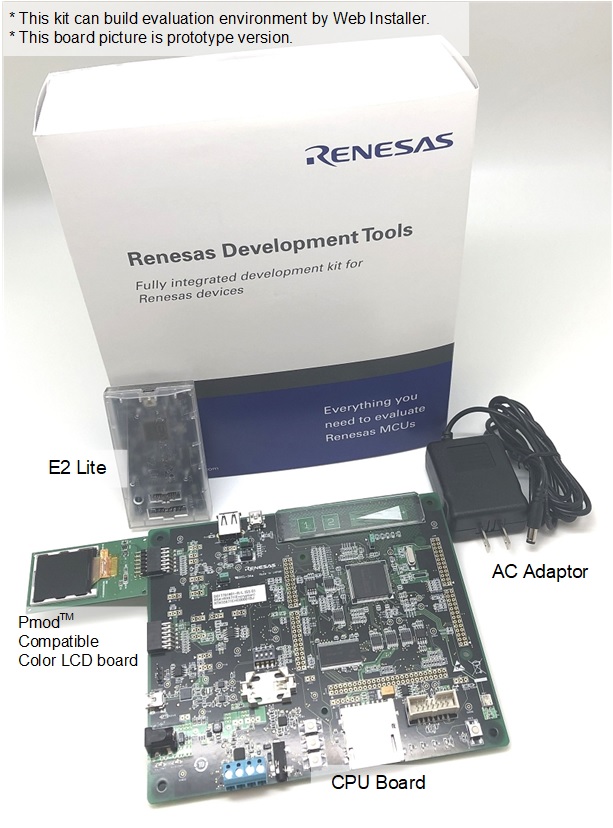

The Renesas Starter Kit+ for RX671 is the perfect starter kit for developers who are new to the RX671 (Code Flash 2MB, Pin Count 144-pin). The kit includes an LCD display module and an on-chip debugging emulator. Download the integrated development environment (CS+ version and e² studio version) from the Renesas website and start evaluating RX671 performance, right after unboxing the Renesas Starter Kit.
特性

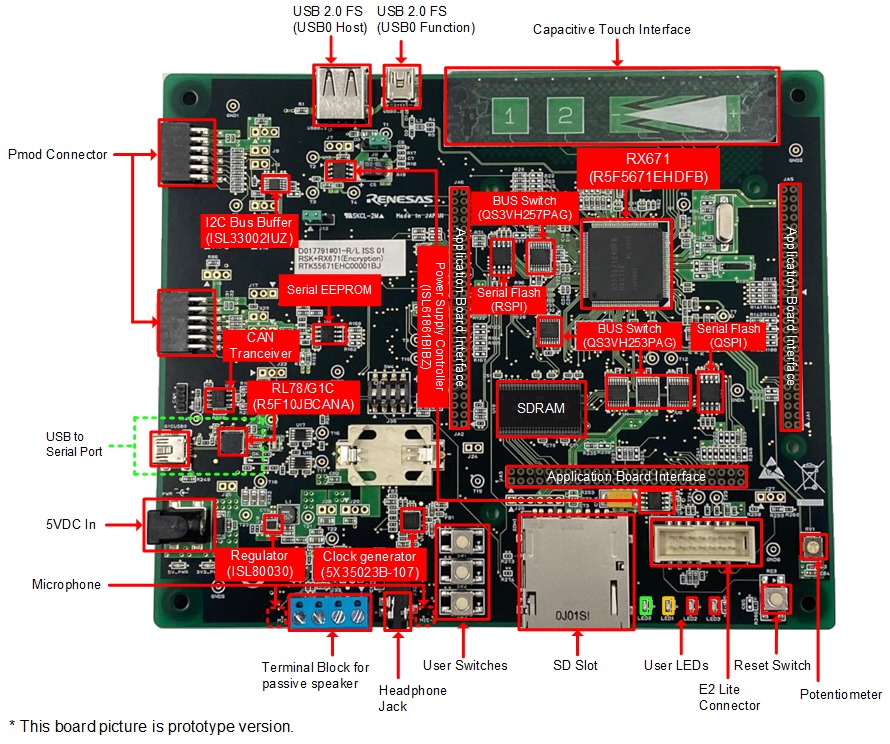

- Devices: RX671 (R5F5671EHDFB: Supported Encrypt Function, Code Flash 2MB, Pin Count 144-pin)
- RX671 builds in Trusted Secure IP. AES encryption function and robust key management can be evaluated.
- Mounts SD slot. SDHI (SD Host Interface) can be evaluated.
- Touch feature (self-capacitive type) can be evaluated. Download the sample code including project for Touch feature evaluation on Renesas Web site (CS+ version and e² studio version).
- Mounts Audio circuit. SSIE (Serial Sound Interface) can be evaluated.
- 1 channel USB Function and 1 channel USB Host can be evaluated.
- In addition, RSPI (Serial Peripheral Interface) and QSPIX (Quad Serial Peripheral Interface), etc. can be evaluated.
- Application combining functions using FIT (Firmware Integration Technology) module can be evaluated.
- Required IBM-PC compatible PC(need USB interface, Processor 1GHz over), OS: Windows 10/8.1(other than the listed OS is not supported)
应用
设计和开发
软件与工具
软件与工具
| Software title
|
Software type
|
公司
|
|---|---|---|
| 快速连接平台 快速连接平台通过提供兼容的硬件和软件构建模块，实现快速原型设计。
|
Software and Hardware Development Tools | 瑞萨电子 |
1 item
|
||
样例程序
样例程序
筛选
|
||
|---|---|---|
| 类型 | 文档标题 | 日期 日期 |
| 示例代码 |
[Toolchains=CC-RX|V3.06.00]
ZIP
55.23 MB
Compiler:
CC-RX
Function:
Starter Kit
IDE:
CS+ for CC
|
|
| 示例代码 |
[Toolchains=CC-RX|V3.06.00]
ZIP
54.96 MB
Compiler:
CC-RX
Function:
Starter Kit
IDE:
e2 studio
|
|
| 示例代码 |
[Software=RX Driver Package|V1.45],[Toolchains=CC-RX|V3.06;GNURX|8.3.0.202405;IAR Compiler for RX|v.5.10.1]
ZIP
117.66 MB
应用:
消费电子产品
Compiler:
CC-RX, ICCRX
IDE:
e2 studio, GCC EWRX, IAR EWRX
|
|
| 示例代码 |
[Software=RX Driver Package|V1.38],[Toolchains=CC-RX|V3.05.00]
ZIP
211.00 MB
日本語
应用:
工业, 消费电子产品
Compiler:
CC-RX
Function:
HMI
IDE:
e2 studio
|
|
| 示例代码 |
[Software=RX Driver Package|V1.38],[Toolchains=CC-RX|V3.05.00]
ZIP
228.95 MB
日本語
应用:
工业, 消费电子产品
Compiler:
CC-RX
Function:
HMI
IDE:
e2 studio
|
|
| 示例代码 | ZIP 10.06 MB | |
| 示例代码 |
ZIP
3.30 MB
应用:
工业, 消费电子产品
Compiler:
CC-RX
Function:
Communication Interface, HMI
IDE:
e2 studio
|
|
| 示例代码 | ZIP 6.85 MB Compiler: CC-RX Function: BSP, Clock IDE: e2 studio | |
8 items
|
||
产品选项
当前筛选条件
视频和培训
Introducing a solution that enables HMI and cloud connectivity functions on a single chip using the RX671. This solution provides a reference demo for a comprehensive experience of voice recognition, touch keys, and cloud connectivity. Demo software can be downloaded from the Renesas website. For details, refer to the application note "RX671 Group Voice recognition / Touch and Cloud solution using Renesas Starter Kit+ for RX671 Rev.1.00 - Sample Code (ZIP)".
