RX72M 瑞萨电子入门套件+
RX72M 瑞萨电子入门套件+ 对于初次使用 RX72M（代码闪存 4MB、引脚数 224）的开发人员来说，是一个非常完善的入门套件。 这一套件包含 LCD 显示器模块和片上调试仿真器。 集成开发环境由瑞萨电子网站提供，您可以在打开包装盒后立即开始评估 RX72M。 请使用本产品体验 RX72M 的性能和功能。
概览
简介
RX72M 微控制器产品组是带有 RX 第三代 CPU 内核“RXv3 core”的高性能产品，支持在 240 MHz 频率下运行。其双精度浮点处理指令能够显著提高处理能力。它包含一个 EtherCAT® 从控制器，并且实现了需要在单个芯片上使用专用控制器的系统配置，从而有助于减少零件数量并节省空间。
特性
- RXv3 内核 240 MHz 工作频率（5.82 CoreMark/MHz）
- 2.7 至 3.6 V 工作电压

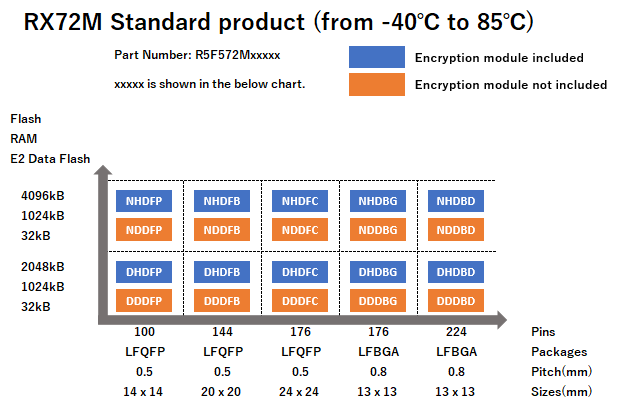

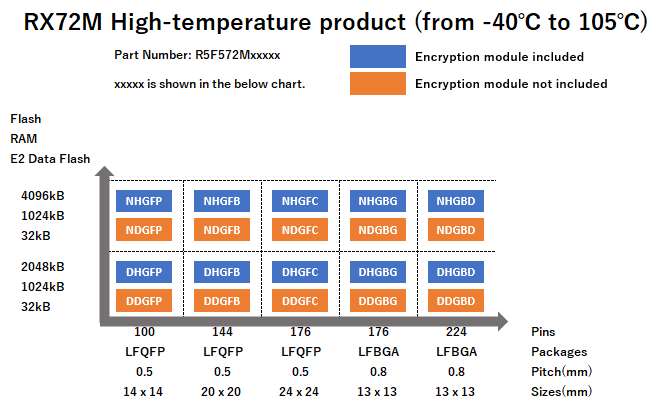

- 工作温度：-40 至 85 °C/ -40 至 105 °C
- 大容量存储器：高达 4 MB、SRAM 1 MB 的闪存记忆体
- Dual Bank 功能
- 最大引脚 LFBGA 224 的封装产品
- 内建 EtherCAT® 从控制器
- 支持小型 TFT LCD 显示器（到 WVGA ）
- 受信任的安全 IP（可选）
产品对比
应用
设计和开发
软件与工具
软件与工具
| Software title
|
Software type
|
公司
|
|---|---|---|
| RI600PX Real-time OS for RX Family μITRON4.0/PX Specification real-time OS for RX Family [Required IDE : CS+] * RI600PX is not generally promoted to U.S. and European customers. Customers in U.S. and Europe who are interested in RI600PX are requested to contact our regional marketing departments for details.
|
ITRON OS | 瑞萨电子 |
| RI600V4 Real-time OS for RX Family μITRON4.0 Specification real-time OS for RX Family [Required IDE : e2 studio, CS+] * RI600V4 is not generally promoted to U.S. and European customers. Customers in U.S. and Europe who are interested in RI600V4 are requested to contact our regional marketing departments for details.
|
ITRON OS | 瑞萨电子 |
| Trusted Secure IP Driver Trusted Secure IP driver software: this software supports AES with 128- and 256-bit keys), AES-GCM, AES-CMAC, and random number generation. Safely executes AES key management, secure updating of firmware, and secure booting at high speeds.
|
Security / Crypto | 瑞萨电子 |
| RX Driver Package Device driver set for the RX Family (including major middleware). Target devices : RX130, RX23W, RX231, RX24U, RX64M, RX65N, RX66T, RX71M, RX72M etc.
|
Software Package | 瑞萨电子 |
| C/C++ Compiler Package for RX Family [CC-RX] C/C++ Compiler Package for RX Family [IDE: CS+, e² studio, High-performance Embedded Workshop]
|
Compiler/Assembler | 瑞萨电子 |
| QE for Display: Development Assistance Tool for Display Applications This development assistance tool supports the development of embedded systems which use the LCD display functions of display controllers from Renesas. [Plugin for Renesas IDE "e² studio"] [Standalone Version] [Support MCU/MPU:RZ, RX, RA]
|
Solution Toolkit | 瑞萨电子 |
| QE for TCP/IP: A Dedicated Tool for TCP/IP Development [Technical Preview Edition] Debugging assistance tool for developing systems which use the TCP/IP. For use in developing embedded systems which use the M3S-T4-Tiny communications protocol software library for the RX family. [Plugin for Renesas IDE "e² studio"]
|
Solution Toolkit | 瑞萨电子 |
| QE for UART: A Dedicated Tool for UART [Technical Preview Edition] Debugging assistance tool for developing systems which use the UART communication function. [Plugin for Renesas IDE "e² studio"]
|
Solution Toolkit | 瑞萨电子 |
| RX Family Renesas FreeRTOS FreeRTOS™ software platform for RX MCUs that makes it easy to create applications using FreeRTOS™ with Firmware Integration Technology (FIT).
|
FreeRTOS | 瑞萨电子 |
| USB Drivers Device drivers for USB communication using USB interface with built-in microcomputer and USB ASSP
|
USB | 瑞萨电子 |
| E2 emulator [RTE0T00020KCE00000R] On-chip debugging emulator. Also available as a flash memory programmer. [Support MCU/MPU: RA, RE, RH850, R-Car D1, RL78, RX, RISC-V MCU]
|
Emulator | 瑞萨电子 |
| E20 emulator [R0E000200KCT00] On-chip debugging emulator. Also available as a flash memory programmer. For RX600 or RX700 Series MCU, trace functions and Real-time RAM monitor functions available. For MCUs other than RX600 or RX700, the available debugging function corresponds to that of E2 Emulator Lite. [Support MCU/MPU: RX, RL78, RH850, V850, 78K0R, 78K0, R8C]
|
Emulator | 瑞萨电子 |
| E2 emulator Lite [RTE0T0002LKCE00000R] On-chip debugging emulator. Also available as a flash memory programmer. [Support MCU/MPU: RA, RE, RL78, RX, RISC-V MCU]
|
Emulator | 瑞萨电子 |
| PG-FP6 Flash memory programmer [Programming software: Dedicated GUI-based software, the "FP6 Terminal"] [Support MCU/MPU and devices: RA, RE, RX, RL78, RH850, RISC-V MCU, Renesas Synergy, Power Management, Renesas USB Power Delivery Family, ICs for Motor Driver/Actuator Driver, SuperH RISC engine, V850, 78K, R8C]
|
Programmer (Unit/SW) | 瑞萨电子 |
| 瑞萨闪存编程器（编程图形用户界面） 闪存编程软件【支持 MCU/MPU 和设备：RA、RE、RX、RL78、RH850、RISC-V MCU 瑞萨电子 Synergy 平台、DA1453x、DA1459x、DA1469x、DA1470x、电源管理、瑞萨电子 USB PD 系列、电机驱动器/制动器驱动器 IC、V850、78K0R、78K0】
|
Programmer (Unit/SW) | 瑞萨电子 |
| CS+ 瑞萨电子集成开发环境（IDE）[支持 MCU/MPU：RH850、V850、RX、RL78、78K0R、78K0]
（注意：CS+ 通常不会向美国和欧洲客户推广。
（注意：要在 CS+ 上对 RL78/G23 和 RX 系列 MCU 使用智能配置器，请为每个 MCU 系列安装智能配置器，从“设计和支持”>“开发工具”>“智能配置器”下载）
|
IDE and Coding Tool | 瑞萨电子 |
| DSP Library for RX Family Software library that implements numeric operation function used in DSP with general purpose MCU
|
DSP / FFT | 瑞萨电子 |
| Sensor Software Modules for Renesas MCU Platforms Middleware (FIT module and FSP module) and sample software packages that enable control and data acquisition for Renesas sensor products.
|
Sensor | 瑞萨电子 |
| RX Smart Configurator RX Smart Configurator is a utility for combining software in ways that meet your needs. It simplifies the embedding of Renesas drivers in your systems through supports for importing middleware and drivers and configuring pins.
|
Solution Toolkit | 瑞萨电子 |
| e² studio - Information for the RX Family Eclipse-based Renesas integrated development environment (IDE).
|
IDE and Coding Tool | 瑞萨电子 |
| EZ-CUBE3 EZ-CUBE3（CYRCNEZCUBE03）是具有Flash存储器编程功能的片上调试仿真器，可以用于调试MCU程序或将程序烧写到MCU的内置Flash中。
|
Emulator | 瑞萨电子 |
| Renesas Motor Workbench Renesas Motor Workbench is a development support tool for debugging, analyzing, and tuning motor control programs.
|
Solution Toolkit | 瑞萨电子 |
| Renesas IAR Embedded Workbench Device-Support-Packages Renesas IAR Embedded Workbench Device-Support-Packages include all device-specific files to be used with the Embedded Workbench IDE.
|
IDE and Coding Tool | 瑞萨电子 |
| Crypto Library Robust encode library to ensure security for all types of system developments
|
Security / Crypto | 瑞萨电子 |
| SPI/QSPI Serial Flash Memory, QSPI Serial Phase Change Memory Driver Device Driver for SPI and QSPI Serial Flash Memory and QSPI Serial Phase Change Memory
|
Serial Memory | 瑞萨电子 |
| Reality AI Utilities 瑞萨电子 e² studio 插件模块
|
Solution Toolkit | 瑞萨电子 |
| I2C Serial EEPROM Driver Device Drivers for I2C Bus Serial EEPROM R1EX24xxx Series, R1EV24xxx Series and HN58X24xxx Series
|
Serial Memory | 瑞萨电子 |
| SPI Serial EEPROM Driver Device Drivers for SPI Bus Serial EEPROM R1EX25xxx Series and HN58X25xxx Series
|
Serial Memory | 瑞萨电子 |
|
28 items
|
||
样例程序
开发板与套件
RX72M CPU 卡，配备 RDC-IC
本产品是一款用于 RX72M 电机控制的 CPU 卡。 与相应的逆变板结合使用，可以控制 BLDC 电机和步进电机。
支持的逆变器板（套件）
- BLDC 电机评估系统（P/N：RTK0EMX270S00020BJ）
- 配备旋转变压器的步进电机评估系统（P/N：RTK0EMX270S01020BJ）
电机控制 CPU 卡
用户可以将电机控制 CPU 卡用于无刷直流（BLDC）电机评估系统。 通过 CPU 卡和评估系统，用户可以利用瑞萨电子提供的相应微控制器轻松评估电机控制。
该页面的 CPU 卡尚未确认是否符合 RoHS2 标准。
带有 RX MCU 的 FSoE 开发套件
用于实现 FSoE 从属功能的软件和硬件包。
- 克服挑战，更容易和更快地评估和开发 FSoE 系统。
- 通过将 EtherCAT + FSoE 从站功能与 2 个芯片集成，实现最佳的 BOM 成本优化
- 允许评估瑞萨的 IEC 61508 功能安全解决方案 FSoE 参考软件的 RX...
模型
ECAD 模块
Schematic symbols, PCB footprints, and 3D CAD models from SamacSys can be found by clicking on products in the Product Options table. If a symbol or model isn't available, it can be requested directly from the website.
Processing table
Carrier Type |
PLP |
CPU |
Program Memory (KB) |
Data Flash (KB) |
RAM (KB) |
Lead Count (#) |
Pkg. Type |
Supply Voltage (V) |
Operating Freq (Max) (MHz) |
I/O Ports |
Ethernet |
USB |
UART (#) |
SPI (#) |
I2C (#) |
CAN (ch) |
DMA |
Timer |
ADC |
24-Bit Sigma-Delta A/D Converter (ch) |
DAC |
Human Machine Interface |
Security & Encryption |
RTC |
Watchdog Timer (ch) |
LVD or PVD |
Pkg. Dimensions (mm) |
Moisture Sensitivity Level (MSL) |
Price (USD) | 1ku |
购买 / 样片 |
|
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 器件号 | |||||||||||||||||||||||||||||||
| Tray | 2033 12月 | RXv3 | 2048 | 32 | 1024 | 224 | LFBGA | 2.7 - 3.6 | 240 | 183 | Yes | USB Endpoints x 10, USB Host, USB Isochronous Transfer Support, USB Peripheral, USB Ports (ch) x 1 | 13 | 16 | 16 | 3 | Yes | 8-bit x 4-ch, 16-bit x 18-ch, 32-bit x 7-ch | 12-bit x 29-ch | 0 | 12-bit x 2-ch | 2D drawing engine, Camera Interface PDC, Graphics LCD Controller, Serial sound interface | No | 是 | 2 | 是 | 13 x 13 x 1.4 | 3 | 10.19 | ||
| Tray | 2033 12月 | RXv3 | 2048 | 32 | 1024 | 176 | LFBGA | 2.7 - 3.6 | 240 | 137 | Yes | USB Endpoints x 10, USB Host, USB Isochronous Transfer Support, USB Peripheral, USB Ports (ch) x 1 | 13 | 16 | 16 | 3 | Yes | 8-bit x 4-ch, 16-bit x 18-ch, 32-bit x 7-ch | 12-bit x 29-ch | 0 | 12-bit x 2-ch | 2D drawing engine, Camera Interface PDC, Graphics LCD Controller, Serial sound interface | No | 是 | 2 | 是 | 13 x 13 x 1.4 | 3 | 12.05 | 获取样片, | |
| Tray | 探讨中 | RXv3 | 2048 | 32 | 1024 | 176 | LFQFP | 2.7 - 3.6 | 240 | 137 | Yes | USB Endpoints x 10, USB Host, USB Isochronous Transfer Support, USB Peripheral, USB Ports (ch) x 1 | 13 | 16 | 16 | 3 | Yes | 8-bit x 4-ch, 16-bit x 18-ch, 32-bit x 7-ch | 12-bit x 29-ch | 0 | 12-bit x 2-ch | 2D drawing engine, Camera Interface PDC, Graphics LCD Controller, Serial sound interface | No | 是 | 2 | 是 | 24 x 24 x 1.7 | 3 | 12.13 | ||
| Tray | 探讨中 | RXv3 | 2048 | 32 | 1024 | 176 | LFQFP | 2.7 - 3.6 | 240 | 137 | Yes | USB Endpoints x 10, USB Host, USB Isochronous Transfer Support, USB Peripheral, USB Ports (ch) x 1 | 13 | 16 | 16 | 3 | Yes | 8-bit x 4-ch, 16-bit x 18-ch, 32-bit x 7-ch | 12-bit x 29-ch | 0 | 12-bit x 2-ch | 2D drawing engine, Camera Interface PDC, Graphics LCD Controller, Serial sound interface | No | 是 | 2 | 是 | 24 x 24 x 1.7 | 3 | 13.11 | ||
| Tray | 2033 12月 | RXv3 | 2048 | 32 | 1024 | 224 | LFBGA | 2.7 - 3.6 | 240 | 183 | Yes | USB Endpoints x 10, USB Host, USB Isochronous Transfer Support, USB Peripheral, USB Ports (ch) x 1 | 13 | 16 | 16 | 3 | Yes | 8-bit x 4-ch, 16-bit x 18-ch, 32-bit x 7-ch | 12-bit x 29-ch | 0 | 12-bit x 2-ch | 2D drawing engine, Camera Interface PDC, Graphics LCD Controller, Serial sound interface | 3DES, AES, ECC, MAC, MD5, RSA, SHA-1, SHA224/SHA256, TRNG | 是 | 2 | 是 | 13 x 13 x 1.4 | 3 | 9.675 | ||
| Tray | 2033 12月 | RXv3 | 2048 | 32 | 1024 | 176 | LFBGA | 2.7 - 3.6 | 240 | 137 | Yes | USB Endpoints x 10, USB Host, USB Isochronous Transfer Support, USB Peripheral, USB Ports (ch) x 1 | 13 | 16 | 16 | 3 | Yes | 8-bit x 4-ch, 16-bit x 18-ch, 32-bit x 7-ch | 12-bit x 29-ch | 0 | 12-bit x 2-ch | 2D drawing engine, Camera Interface PDC, Graphics LCD Controller, Serial sound interface | 3DES, AES, ECC, MAC, MD5, RSA, SHA-1, SHA224/SHA256, TRNG | 是 | 2 | 是 | 13 x 13 x 1.4 | 3 | 12.61 | ||
| Tray | 探讨中 | RXv3 | 2048 | 32 | 1024 | 176 | LFQFP | 2.7 - 3.6 | 240 | 137 | Yes | USB Endpoints x 10, USB Host, USB Isochronous Transfer Support, USB Peripheral, USB Ports (ch) x 1 | 13 | 16 | 16 | 3 | Yes | 8-bit x 4-ch, 16-bit x 18-ch, 32-bit x 7-ch | 12-bit x 29-ch | 0 | 12-bit x 2-ch | 2D drawing engine, Camera Interface PDC, Graphics LCD Controller, Serial sound interface | 3DES, AES, ECC, MAC, MD5, RSA, SHA-1, SHA224/SHA256, TRNG | 是 | 2 | 是 | 24 x 24 x 1.7 | 3 | 12.51 | ||
| Tray | 探讨中 | RXv3 | 2048 | 32 | 1024 | 176 | LFQFP | 2.7 - 3.6 | 240 | 137 | Yes | USB Endpoints x 10, USB Host, USB Isochronous Transfer Support, USB Peripheral, USB Ports (ch) x 1 | 13 | 16 | 16 | 3 | Yes | 8-bit x 4-ch, 16-bit x 18-ch, 32-bit x 7-ch | 12-bit x 29-ch | 0 | 12-bit x 2-ch | 2D drawing engine, Camera Interface PDC, Graphics LCD Controller, Serial sound interface | 3DES, AES, ECC, MAC, MD5, RSA, SHA-1, SHA224/SHA256, TRNG | 是 | 2 | 是 | 24 x 24 x 1.7 | 3 | |||
| Tray | 2030 6月 | RXv3 | 4096 | 32 | 1024 | 224 | LFBGA | 2.7 - 3.6 | 240 | 183 | Yes | USB Endpoints x 10, USB Host, USB Isochronous Transfer Support, USB Peripheral, USB Ports (ch) x 1 | 13 | 16 | 16 | 3 | Yes | 8-bit x 4-ch, 16-bit x 18-ch, 32-bit x 7-ch | 12-bit x 29-ch | 0 | 12-bit x 2-ch | 2D drawing engine, Camera Interface PDC, Graphics LCD Controller, Serial sound interface | No | 是 | 2 | 是 | 13 x 13 x 1.4 | 3 | 14.09 | 获取样片, | |
| Tray | 2030 6月 | RXv3 | 4096 | 32 | 1024 | 176 | LFBGA | 2.7 - 3.6 | 240 | 137 | Yes | USB Endpoints x 10, USB Host, USB Isochronous Transfer Support, USB Peripheral, USB Ports (ch) x 1 | 13 | 16 | 16 | 3 | Yes | 8-bit x 4-ch, 16-bit x 18-ch, 32-bit x 7-ch | 12-bit x 29-ch | 0 | 12-bit x 2-ch | 2D drawing engine, Camera Interface PDC, Graphics LCD Controller, Serial sound interface | No | 是 | 2 | 是 | 13 x 13 x 1.4 | 3 | 13.56 | ||
| Tray | 2035 6月 | RXv3 | 4096 | 32 | 1024 | 176 | LFQFP | 2.7 - 3.6 | 240 | 137 | Yes | USB Endpoints x 10, USB Host, USB Isochronous Transfer Support, USB Peripheral, USB Ports (ch) x 1 | 13 | 16 | 16 | 3 | Yes | 8-bit x 4-ch, 16-bit x 18-ch, 32-bit x 7-ch | 12-bit x 29-ch | 0 | 12-bit x 2-ch | 2D drawing engine, Camera Interface PDC, Graphics LCD Controller, Serial sound interface | No | 是 | 2 | 是 | 24 x 24 x 1.7 | 3 | 13.37 | 获取样片, | |
| Tray | 探讨中 | RXv3 | 4096 | 32 | 1024 | 176 | LFQFP | 2.7 - 3.6 | 240 | 137 | Yes | USB Endpoints x 10, USB Host, USB Isochronous Transfer Support, USB Peripheral, USB Ports (ch) x 1 | 13 | 16 | 16 | 3 | Yes | 8-bit x 4-ch, 16-bit x 18-ch, 32-bit x 7-ch | 12-bit x 29-ch | 0 | 12-bit x 2-ch | 2D drawing engine, Camera Interface PDC, Graphics LCD Controller, Serial sound interface | No | 是 | 2 | 是 | 24 x 24 x 1.7 | 3 | 14.73 | ||
| Tray | 2033 12月 | RXv3 | 4096 | 32 | 1024 | 224 | LFBGA | 2.7 - 3.6 | 240 | 183 | Yes | USB Endpoints x 10, USB Host, USB Isochronous Transfer Support, USB Peripheral, USB Ports (ch) x 1 | 13 | 16 | 16 | 3 | Yes | 8-bit x 4-ch, 16-bit x 18-ch, 32-bit x 7-ch | 12-bit x 29-ch | 0 | 12-bit x 2-ch | 2D drawing engine, Camera Interface PDC, Graphics LCD Controller, Serial sound interface | 3DES, AES, ECC, MAC, MD5, RSA, SHA-1, SHA224/SHA256, TRNG | 是 | 2 | 是 | 13 x 13 x 1.4 | 3 | 10.82 | 获取样片, | |
| Tray | 2033 12月 | RXv3 | 4096 | 32 | 1024 | 176 | LFBGA | 2.7 - 3.6 | 240 | 137 | Yes | USB Endpoints x 10, USB Host, USB Isochronous Transfer Support, USB Peripheral, USB Ports (ch) x 1 | 13 | 16 | 16 | 3 | Yes | 8-bit x 4-ch, 16-bit x 18-ch, 32-bit x 7-ch | 12-bit x 29-ch | 0 | 12-bit x 2-ch | 2D drawing engine, Camera Interface PDC, Graphics LCD Controller, Serial sound interface | 3DES, AES, ECC, MAC, MD5, RSA, SHA-1, SHA224/SHA256, TRNG | 是 | 2 | 是 | 13 x 13 x 1.4 | 3 | 11.72 | 获取样片, | |
| Tray | 探讨中 | RXv3 | 4096 | 32 | 1024 | 176 | LFQFP | 2.7 - 3.6 | 240 | 137 | Yes | USB Endpoints x 10, USB Host, USB Isochronous Transfer Support, USB Peripheral, USB Ports (ch) x 1 | 13 | 16 | 16 | 3 | Yes | 8-bit x 4-ch, 16-bit x 18-ch, 32-bit x 7-ch | 12-bit x 29-ch | 0 | 12-bit x 2-ch | 2D drawing engine, Camera Interface PDC, Graphics LCD Controller, Serial sound interface | 3DES, AES, ECC, MAC, MD5, RSA, SHA-1, SHA224/SHA256, TRNG | 是 | 2 | 是 | 24 x 24 x 1.7 | 3 | 13.75 | 获取样片, | |
| Tray | 探讨中 | RXv3 | 4096 | 32 | 1024 | 176 | LFQFP | 2.7 - 3.6 | 240 | 137 | Yes | USB Endpoints x 10, USB Host, USB Isochronous Transfer Support, USB Peripheral, USB Ports (ch) x 1 | 13 | 16 | 16 | 3 | Yes | 8-bit x 4-ch, 16-bit x 18-ch, 32-bit x 7-ch | 12-bit x 29-ch | 0 | 12-bit x 2-ch | 2D drawing engine, Camera Interface PDC, Graphics LCD Controller, Serial sound interface | 3DES, AES, ECC, MAC, MD5, RSA, SHA-1, SHA224/SHA256, TRNG | 是 | 2 | 是 | 24 x 24 x 1.7 | 3 | 获取样片, | ||
| Tray | 探讨中 | RXv3 | 4096 | 32 | 1024 | 144 | LFQFP | 2.7 - 3.6 | 240 | 112 | Yes | USB Endpoints x 10, USB Host, USB Isochronous Transfer Support, USB Peripheral, USB Ports (ch) x 1 | 13 | 16 | 16 | 3 | Yes | 8-bit x 4-ch, 16-bit x 18-ch, 32-bit x 7-ch | 12-bit x 26-ch | 0 | 12-bit x 2-ch | 2D drawing engine, Camera Interface PDC, Graphics LCD Controller, Serial sound interface | No | 是 | 2 | 是 | 20 x 20 x 1.7 | 3 | 13.37 | ||
| Tray | 探讨中 | RXv3 | 4096 | 32 | 1024 | 144 | LFQFP | 2.7 - 3.6 | 240 | 112 | Yes | USB Endpoints x 10, USB Host, USB Isochronous Transfer Support, USB Peripheral, USB Ports (ch) x 1 | 13 | 16 | 16 | 3 | Yes | 8-bit x 4-ch, 16-bit x 18-ch, 32-bit x 7-ch | 12-bit x 26-ch | 0 | 12-bit x 2-ch | 2D drawing engine, Camera Interface PDC, Graphics LCD Controller, Serial sound interface | 3DES, AES, ECC, MAC, MD5, RSA, SHA-1, SHA224/SHA256, TRNG | 是 | 2 | 是 | 20 x 20 x 1.7 | 3 | 13.75 | ||
| Tray | 探讨中 | RXv3 | 2048 | 32 | 1024 | 144 | LFQFP | 2.7 - 3.6 | 240 | 112 | Yes | USB Endpoints x 10, USB Host, USB Isochronous Transfer Support, USB Peripheral, USB Ports (ch) x 1 | 13 | 16 | 16 | 3 | Yes | 8-bit x 4-ch, 16-bit x 18-ch, 32-bit x 7-ch | 12-bit x 26-ch | 0 | 12-bit x 2-ch | 2D drawing engine, Camera Interface PDC, Graphics LCD Controller, Serial sound interface | No | 是 | 2 | 是 | 20 x 20 x 1.7 | 3 | 11.87 | ||
| Tray | 探讨中 | RXv3 | 2048 | 32 | 1024 | 100 | LFQFP | 2.7 - 3.6 | 240 | 73 | Yes | USB Endpoints x 10, USB Host, USB Isochronous Transfer Support, USB Peripheral, USB Ports (ch) x 1 | 12 | 15 | 15 | 3 | Yes | 8-bit x 4-ch, 16-bit x 18-ch, 32-bit x 5-ch | 12-bit x 15-ch | 0 | No | Serial sound interface | No | 是 | 2 | 是 | 14 x 14 x 1.7 | 3 | 9.175 | ||
| Tray | 探讨中 | RXv3 | 2048 | 32 | 1024 | 144 | LFQFP | 2.7 - 3.6 | 240 | 112 | Yes | USB Endpoints x 10, USB Host, USB Isochronous Transfer Support, USB Peripheral, USB Ports (ch) x 1 | 13 | 16 | 16 | 3 | Yes | 8-bit x 4-ch, 16-bit x 18-ch, 32-bit x 7-ch | 12-bit x 26-ch | 0 | 12-bit x 2-ch | 2D drawing engine, Camera Interface PDC, Graphics LCD Controller, Serial sound interface | No | 是 | 2 | 是 | 20 x 20 x 1.7 | 3 | 12.65 | ||
| Tray | 探讨中 | RXv3 | 2048 | 32 | 1024 | 100 | LFQFP | 2.7 - 3.6 | 240 | 73 | Yes | USB Endpoints x 10, USB Host, USB Isochronous Transfer Support, USB Peripheral, USB Ports (ch) x 1 | 12 | 15 | 15 | 3 | Yes | 8-bit x 4-ch, 16-bit x 18-ch, 32-bit x 5-ch | 12-bit x 15-ch | 0 | No | Serial sound interface | No | 是 | 2 | 是 | 14 x 14 x 1.7 | 3 | 11.35 | ||
| Tray | 探讨中 | RXv3 | 2048 | 32 | 1024 | 144 | LFQFP | 2.7 - 3.6 | 240 | 112 | Yes | USB Endpoints x 10, USB Host, USB Isochronous Transfer Support, USB Peripheral, USB Ports (ch) x 1 | 13 | 16 | 16 | 3 | Yes | 8-bit x 4-ch, 16-bit x 18-ch, 32-bit x 7-ch | 12-bit x 26-ch | 0 | 12-bit x 2-ch | 2D drawing engine, Camera Interface PDC, Graphics LCD Controller, Serial sound interface | 3DES, AES, ECC, MAC, MD5, RSA, SHA-1, SHA224/SHA256, TRNG | 是 | 2 | 是 | 20 x 20 x 1.7 | 3 | 12.25 | ||
| Tray | 探讨中 | RXv3 | 2048 | 32 | 1024 | 100 | LFQFP | 2.7 - 3.6 | 240 | 73 | Yes | USB Endpoints x 10, USB Host, USB Isochronous Transfer Support, USB Peripheral, USB Ports (ch) x 1 | 12 | 15 | 15 | 3 | Yes | 8-bit x 4-ch, 16-bit x 18-ch, 32-bit x 5-ch | 12-bit x 15-ch | 0 | No | Serial sound interface | 3DES, AES, ECC, MAC, MD5, RSA, SHA-1, SHA224/SHA256, TRNG | 是 | 2 | 是 | 14 x 14 x 1.7 | 3 | 11.03 | ||
| Tray | 探讨中 | RXv3 | 2048 | 32 | 1024 | 144 | LFQFP | 2.7 - 3.6 | 240 | 112 | Yes | USB Endpoints x 10, USB Host, USB Isochronous Transfer Support, USB Peripheral, USB Ports (ch) x 1 | 13 | 16 | 16 | 3 | Yes | 8-bit x 4-ch, 16-bit x 18-ch, 32-bit x 7-ch | 12-bit x 26-ch | 0 | 12-bit x 2-ch | 2D drawing engine, Camera Interface PDC, Graphics LCD Controller, Serial sound interface | 3DES, AES, ECC, MAC, MD5, RSA, SHA-1, SHA224/SHA256, TRNG | 是 | 2 | 是 | 20 x 20 x 1.7 | 3 | 13.05 | ||
| Tray | 探讨中 | RXv3 | 4096 | 32 | 1024 | 100 | LFQFP | 2.7 - 3.6 | 240 | 73 | Yes | USB Endpoints x 10, USB Host, USB Isochronous Transfer Support, USB Peripheral, USB Ports (ch) x 1 | 12 | 15 | 15 | 3 | Yes | 8-bit x 4-ch, 16-bit x 18-ch, 32-bit x 5-ch | 12-bit x 15-ch | 0 | No | Serial sound interface | No | 是 | 2 | 是 | 14 x 14 x 1.7 | 3 | 12.18 | ||
| Tray | 探讨中 | RXv3 | 4096 | 32 | 1024 | 144 | LFQFP | 2.7 - 3.6 | 240 | 112 | Yes | USB Endpoints x 10, USB Host, USB Isochronous Transfer Support, USB Peripheral, USB Ports (ch) x 1 | 13 | 16 | 16 | 3 | Yes | 8-bit x 4-ch, 16-bit x 18-ch, 32-bit x 7-ch | 12-bit x 26-ch | 0 | 12-bit x 2-ch | 2D drawing engine, Camera Interface PDC, Graphics LCD Controller, Serial sound interface | No | 是 | 2 | 是 | 20 x 20 x 1.7 | 3 | |||
| Tray | 探讨中 | RXv3 | 4096 | 32 | 1024 | 100 | LFQFP | 2.7 - 3.6 | 240 | 73 | Yes | USB Endpoints x 10, USB Host, USB Isochronous Transfer Support, USB Peripheral, USB Ports (ch) x 1 | 12 | 15 | 15 | 3 | Yes | 8-bit x 4-ch, 16-bit x 18-ch, 32-bit x 5-ch | 12-bit x 15-ch | 0 | No | Serial sound interface | No | 是 | 2 | 是 | 14 x 14 x 1.7 | 3 | 12.98 | ||
| Tray | 探讨中 | RXv3 | 4096 | 32 | 1024 | 100 | LFQFP | 2.7 - 3.6 | 240 | 73 | Yes | USB Endpoints x 10, USB Host, USB Isochronous Transfer Support, USB Peripheral, USB Ports (ch) x 1 | 12 | 15 | 15 | 3 | Yes | 8-bit x 4-ch, 16-bit x 18-ch, 32-bit x 5-ch | 12-bit x 15-ch | 0 | No | Serial sound interface | 3DES, AES, ECC, MAC, MD5, RSA, SHA-1, SHA224/SHA256, TRNG | 是 | 2 | 是 | 14 x 14 x 1.7 | 3 | 12.56 | ||
| Tray | 探讨中 | RXv3 | 4096 | 32 | 1024 | 144 | LFQFP | 2.7 - 3.6 | 240 | 112 | Yes | USB Endpoints x 10, USB Host, USB Isochronous Transfer Support, USB Peripheral, USB Ports (ch) x 1 | 13 | 16 | 16 | 3 | Yes | 8-bit x 4-ch, 16-bit x 18-ch, 32-bit x 7-ch | 12-bit x 26-ch | 0 | 12-bit x 2-ch | 2D drawing engine, Camera Interface PDC, Graphics LCD Controller, Serial sound interface | 3DES, AES, ECC, MAC, MD5, RSA, SHA-1, SHA224/SHA256, TRNG | 是 | 2 | 是 | 20 x 20 x 1.7 | 3 | 14.24 | 获取样片, | |
| Tray | 探讨中 | RXv3 | 4096 | 32 | 1024 | 100 | LFQFP | 2.7 - 3.6 | 240 | 73 | Yes | USB Endpoints x 10, USB Host, USB Isochronous Transfer Support, USB Peripheral, USB Ports (ch) x 1 | 12 | 15 | 15 | 3 | Yes | 8-bit x 4-ch, 16-bit x 18-ch, 32-bit x 5-ch | 12-bit x 15-ch | 0 | No | Serial sound interface | 3DES, AES, ECC, MAC, MD5, RSA, SHA-1, SHA224/SHA256, TRNG | 是 | 2 | 是 | 14 x 14 x 1.7 | 3 | 12.93 | 获取样片, | |
| Tray | 探讨中 | RXv3 | 2048 | 32 | 1024 | 100 | LFQFP | 2.7 - 3.6 | 240 | 73 | Yes | USB Endpoints x 10, USB Host, USB Isochronous Transfer Support, USB Peripheral, USB Ports (ch) x 1 | 12 | 15 | 15 | 3 | Yes | 8-bit x 4-ch, 16-bit x 18-ch, 32-bit x 5-ch | 12-bit x 15-ch | 0 | No | Serial sound interface | 3DES, AES, ECC, MAC, MD5, RSA, SHA-1, SHA224/SHA256, TRNG | 是 | 2 | 是 | 14 x 14 x 1.7 | 3 | 11.76 | ||
| Tray | 2033 12月 | RXv3 | 2048 | 32 | 1024 | 224 | LFBGA | 2.7 - 3.6 | 240 | 183 | Yes | USB Endpoints x 10, USB Host, USB Isochronous Transfer Support, USB Peripheral, USB Ports (ch) x 1 | 13 | 16 | 16 | 3 | Yes | 8-bit x 4-ch, 16-bit x 18-ch, 32-bit x 7-ch | 12-bit x 29-ch | 0 | 12-bit x 2-ch | 2D drawing engine, Camera Interface PDC, Graphics LCD Controller, Serial sound interface | No | 是 | 2 | 是 | 13 x 13 x 1.4 | 3 | 13.86 | ||
| Tray | 2033 12月 | RXv3 | 2048 | 32 | 1024 | 176 | LFBGA | 2.7 - 3.6 | 240 | 137 | Yes | USB Endpoints x 10, USB Host, USB Isochronous Transfer Support, USB Peripheral, USB Ports (ch) x 1 | 13 | 16 | 16 | 3 | Yes | 8-bit x 4-ch, 16-bit x 18-ch, 32-bit x 7-ch | 12-bit x 29-ch | 0 | 12-bit x 2-ch | 2D drawing engine, Camera Interface PDC, Graphics LCD Controller, Serial sound interface | No | 是 | 2 | 是 | 13 x 13 x 1.4 | 3 | 14.1 | ||
| Tray | 2033 12月 | RXv3 | 2048 | 32 | 1024 | 224 | LFBGA | 2.7 - 3.6 | 240 | 183 | Yes | USB Endpoints x 10, USB Host, USB Isochronous Transfer Support, USB Peripheral, USB Ports (ch) x 1 | 13 | 16 | 16 | 3 | Yes | 8-bit x 4-ch, 16-bit x 18-ch, 32-bit x 7-ch | 12-bit x 29-ch | 0 | 12-bit x 2-ch | 2D drawing engine, Camera Interface PDC, Graphics LCD Controller, Serial sound interface | 3DES, AES, ECC, MAC, MD5, RSA, SHA-1, SHA224/SHA256, TRNG | 是 | 2 | 是 | 13 x 13 x 1.4 | 3 | 14.26 | ||
| Tray | 2033 12月 | RXv3 | 2048 | 32 | 1024 | 176 | LFBGA | 2.7 - 3.6 | 240 | 137 | Yes | USB Endpoints x 10, USB Host, USB Isochronous Transfer Support, USB Peripheral, USB Ports (ch) x 1 | 13 | 16 | 16 | 3 | Yes | 8-bit x 4-ch, 16-bit x 18-ch, 32-bit x 7-ch | 12-bit x 29-ch | 0 | 12-bit x 2-ch | 2D drawing engine, Camera Interface PDC, Graphics LCD Controller, Serial sound interface | 3DES, AES, ECC, MAC, MD5, RSA, SHA-1, SHA224/SHA256, TRNG | 是 | 2 | 是 | 13 x 13 x 1.4 | 3 | |||
| Tray | 2033 12月 | RXv3 | 4096 | 32 | 1024 | 224 | LFBGA | 2.7 - 3.6 | 240 | 183 | Yes | USB Endpoints x 10, USB Host, USB Isochronous Transfer Support, USB Peripheral, USB Ports (ch) x 1 | 13 | 16 | 16 | 3 | Yes | 8-bit x 4-ch, 16-bit x 18-ch, 32-bit x 7-ch | 12-bit x 29-ch | 0 | 12-bit x 2-ch | 2D drawing engine, Camera Interface PDC, Graphics LCD Controller, Serial sound interface | No | 是 | 2 | 是 | 13 x 13 x 1.4 | 3 | 15.46 | ||
| Tray | 2033 12月 | RXv3 | 4096 | 32 | 1024 | 176 | LFBGA | 2.7 - 3.6 | 240 | 137 | Yes | USB Endpoints x 10, USB Host, USB Isochronous Transfer Support, USB Peripheral, USB Ports (ch) x 1 | 13 | 16 | 16 | 3 | Yes | 8-bit x 4-ch, 16-bit x 18-ch, 32-bit x 7-ch | 12-bit x 29-ch | 0 | 12-bit x 2-ch | 2D drawing engine, Camera Interface PDC, Graphics LCD Controller, Serial sound interface | No | 是 | 2 | 是 | 13 x 13 x 1.4 | 3 | 14.91 | ||
| Tray | 2033 12月 | RXv3 | 4096 | 32 | 1024 | 224 | LFBGA | 2.7 - 3.6 | 240 | 183 | Yes | USB Endpoints x 10, USB Host, USB Isochronous Transfer Support, USB Peripheral, USB Ports (ch) x 1 | 13 | 16 | 16 | 3 | Yes | 8-bit x 4-ch, 16-bit x 18-ch, 32-bit x 7-ch | 12-bit x 29-ch | 0 | 12-bit x 2-ch | 2D drawing engine, Camera Interface PDC, Graphics LCD Controller, Serial sound interface | 3DES, AES, ECC, MAC, MD5, RSA, SHA-1, SHA224/SHA256, TRNG | 是 | 2 | 是 | 13 x 13 x 1.4 | 3 | 14.07 | 获取样片, | |
| Tray | 2033 12月 | RXv3 | 4096 | 32 | 1024 | 176 | LFBGA | 2.7 - 3.6 | 240 | 137 | Yes | USB Endpoints x 10, USB Host, USB Isochronous Transfer Support, USB Peripheral, USB Ports (ch) x 1 | 13 | 16 | 16 | 3 | Yes | 8-bit x 4-ch, 16-bit x 18-ch, 32-bit x 7-ch | 12-bit x 29-ch | 0 | 12-bit x 2-ch | 2D drawing engine, Camera Interface PDC, Graphics LCD Controller, Serial sound interface | 3DES, AES, ECC, MAC, MD5, RSA, SHA-1, SHA224/SHA256, TRNG | 是 | 2 | 是 | 13 x 13 x 1.4 | 3 | 14.89 | 获取样片, | |
| Tray (Full Carton) | 探讨中 | RXv3 | 4096 | 32 | 1024 | 144 | LFQFP | 2.7 - 3.6 | 240 | 112 | Yes | USB Endpoints x 10, USB Host, USB Isochronous Transfer Support, USB Peripheral, USB Ports (ch) x 1 | 13 | 16 | 16 | 3 | Yes | 8-bit x 4-ch, 16-bit x 18-ch, 32-bit x 7-ch | 12-bit x 26-ch | 0 | 12-bit x 2-ch | 2D drawing engine, Camera Interface PDC, Graphics LCD Controller, Serial sound interface | No | 是 | 2 | 是 | 20 x 20 x 1.7 | 3 | |||
| Tray (Full Carton) | 探讨中 | RXv3 | 4096 | 32 | 1024 | 144 | LFQFP | 2.7 - 3.6 | 240 | 112 | Yes | USB Endpoints x 10, USB Host, USB Isochronous Transfer Support, USB Peripheral, USB Ports (ch) x 1 | 13 | 16 | 16 | 3 | Yes | 8-bit x 4-ch, 16-bit x 18-ch, 32-bit x 7-ch | 12-bit x 26-ch | 0 | 12-bit x 2-ch | 2D drawing engine, Camera Interface PDC, Graphics LCD Controller, Serial sound interface | 3DES, AES, ECC, MAC, MD5, RSA, SHA-1, SHA224/SHA256, TRNG | 是 | 2 | 是 | 20 x 20 x 1.7 | 3 | 13.75 | ||
| Tray (Full Carton) | 探讨中 | RXv3 | 2048 | 32 | 1024 | 144 | LFQFP | 2.7 - 3.6 | 240 | 112 | Yes | USB Endpoints x 10, USB Host, USB Isochronous Transfer Support, USB Peripheral, USB Ports (ch) x 1 | 13 | 16 | 16 | 3 | Yes | 8-bit x 4-ch, 16-bit x 18-ch, 32-bit x 7-ch | 12-bit x 26-ch | 0 | 12-bit x 2-ch | 2D drawing engine, Camera Interface PDC, Graphics LCD Controller, Serial sound interface | No | 是 | 2 | 是 | 20 x 20 x 1.7 | 3 | |||
| Tray (Full Carton) | 探讨中 | RXv3 | 2048 | 32 | 1024 | 100 | LFQFP | 2.7 - 3.6 | 240 | 73 | Yes | USB Endpoints x 10, USB Host, USB Isochronous Transfer Support, USB Peripheral, USB Ports (ch) x 1 | 12 | 15 | 15 | 3 | Yes | 8-bit x 4-ch, 16-bit x 18-ch, 32-bit x 5-ch | 12-bit x 15-ch | 0 | No | Serial sound interface | No | 是 | 2 | 是 | 14 x 14 x 1.7 | 3 | 10.4 | ||
| Tray (Full Carton) | 探讨中 | RXv3 | 2048 | 32 | 1024 | 144 | LFQFP | 2.7 - 3.6 | 240 | 112 | Yes | USB Endpoints x 10, USB Host, USB Isochronous Transfer Support, USB Peripheral, USB Ports (ch) x 1 | 13 | 16 | 16 | 3 | Yes | 8-bit x 4-ch, 16-bit x 18-ch, 32-bit x 7-ch | 12-bit x 26-ch | 0 | 12-bit x 2-ch | 2D drawing engine, Camera Interface PDC, Graphics LCD Controller, Serial sound interface | No | 是 | 2 | 是 | 20 x 20 x 1.7 | 3 | 12.65 | ||
| Tray (Full Carton) | 探讨中 | RXv3 | 2048 | 32 | 1024 | 100 | LFQFP | 2.7 - 3.6 | 240 | 73 | Yes | USB Endpoints x 10, USB Host, USB Isochronous Transfer Support, USB Peripheral, USB Ports (ch) x 1 | 12 | 15 | 15 | 3 | Yes | 8-bit x 4-ch, 16-bit x 18-ch, 32-bit x 5-ch | 12-bit x 15-ch | 0 | No | Serial sound interface | No | 是 | 2 | 是 | 14 x 14 x 1.7 | 3 | 11.07 | ||
| Tray (Full Carton) | 探讨中 | RXv3 | 2048 | 32 | 1024 | 144 | LFQFP | 2.7 - 3.6 | 240 | 112 | Yes | USB Endpoints x 10, USB Host, USB Isochronous Transfer Support, USB Peripheral, USB Ports (ch) x 1 | 13 | 16 | 16 | 3 | Yes | 8-bit x 4-ch, 16-bit x 18-ch, 32-bit x 7-ch | 12-bit x 26-ch | 0 | 12-bit x 2-ch | 2D drawing engine, Camera Interface PDC, Graphics LCD Controller, Serial sound interface | 3DES, AES, ECC, MAC, MD5, RSA, SHA-1, SHA224/SHA256, TRNG | 是 | 2 | 是 | 20 x 20 x 1.7 | 3 | 12.25 | ||
| Tray (Full Carton) | 探讨中 | RXv3 | 2048 | 32 | 1024 | 100 | LFQFP | 2.7 - 3.6 | 240 | 73 | Yes | USB Endpoints x 10, USB Host, USB Isochronous Transfer Support, USB Peripheral, USB Ports (ch) x 1 | 12 | 15 | 15 | 3 | Yes | 8-bit x 4-ch, 16-bit x 18-ch, 32-bit x 5-ch | 12-bit x 15-ch | 0 | No | Serial sound interface | 3DES, AES, ECC, MAC, MD5, RSA, SHA-1, SHA224/SHA256, TRNG | 是 | 2 | 是 | 14 x 14 x 1.7 | 3 | 10.77 | ||
| Tray (Full Carton) | 探讨中 | RXv3 | 2048 | 32 | 1024 | 144 | LFQFP | 2.7 - 3.6 | 240 | 112 | Yes | USB Endpoints x 10, USB Host, USB Isochronous Transfer Support, USB Peripheral, USB Ports (ch) x 1 | 13 | 16 | 16 | 3 | Yes | 8-bit x 4-ch, 16-bit x 18-ch, 32-bit x 7-ch | 12-bit x 26-ch | 0 | 12-bit x 2-ch | 2D drawing engine, Camera Interface PDC, Graphics LCD Controller, Serial sound interface | 3DES, AES, ECC, MAC, MD5, RSA, SHA-1, SHA224/SHA256, TRNG | 是 | 2 | 是 | 20 x 20 x 1.7 | 3 | 13.05 | ||
| Tray (Full Carton) | 探讨中 | RXv3 | 4096 | 32 | 1024 | 100 | LFQFP | 2.7 - 3.6 | 240 | 73 | Yes | USB Endpoints x 10, USB Host, USB Isochronous Transfer Support, USB Peripheral, USB Ports (ch) x 1 | 12 | 15 | 15 | 3 | Yes | 8-bit x 4-ch, 16-bit x 18-ch, 32-bit x 5-ch | 12-bit x 15-ch | 0 | No | Serial sound interface | No | 是 | 2 | 是 | 14 x 14 x 1.7 | 3 | 11.89 |
Tips for Using This Parametric Table:
- Hide Filters button in header: Collapse or expands filters
- Column sort buttons in header: Sort Column alphabetically / numerically descending or ascending
- Reset button in header: Reset all filters to the page default
- Full Screen button in header: Expand the table to full screen view (user must close out of full screen before they can interact with rest of page)
- Export button in header: Export the filtered results of the table to an Excel document
- Filter parts search bar in header: Type to filter table results by part number
- Hide column button in column headers: Select to hide columns in table
- AND / OR toggle switches in header: Toggles the logic of this particular filter to be “AND” or “OR” logic for filtering results
- Multiselect checkboxes at beginning of each row in table: Select these checkboxes to compare products against each other
- Document icon next to product name in row: View the featured document for this product
- Chip icon next to the right of the document icon in row: View the block diagram for this product
- Cart icon to the right of the chip icon: Indicates that samples are available for this product
视频和培训
瑞萨RX72M电机+EtherCAT®单芯片解决方案
Introducing an EtherCAT motor control solution using Renesas' high-performance 32-bit microcontroller RX72M. This solution enables synchronous control of the motors in multiple equipment by connecting to EtherCAT, an industrial Ethernet communication system with high synchronous control performance.
For details, refer to the application note RX Group Single-Chip Motor Control via EtherCAT Communications Rev.1.10 (PDF | English, 日本語) on the Renesas website.
