RZ/A2M评估套件
RZ/A2M评估板套件是用于评估RZ/A2M的最佳评估板套件。其中包括MIPI相机模块、用于显示连接的显示输出板和片上调试仿真器（Segger J-Link Lite），因此您可以在打开后立即开始评估。请通过各种方式来感受RZ/A2M的性能和功能...
可在云上实验室使用
使用我们基于 PC 的 GUI，无需物理板即可在虚拟实验室中立即开始配置和测试设计
概览
描述

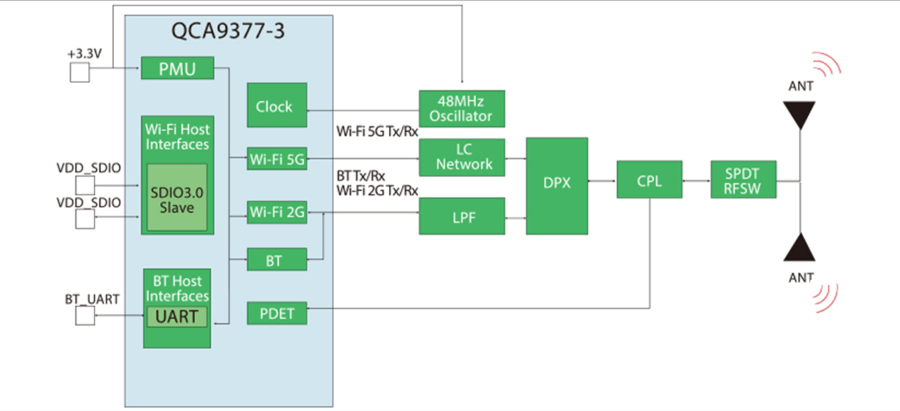

SX-SDMAC is a secure digital I/O (SDIO) type wireless LAN combo module that supports low power consumption Wi-Fi and Bluetooth®. It is equipped with Qualcomm's QCA9377-3 chipset and is compatible with the high-speed communication standard, IEEE 802.11ac, enabling high-speed, large data transmission. As it supports a wide temperature range required for industrial uses, it can be used for various products. Using this module with the RZ/A2M Evaluation Board Kit allows for speedy evaluation. Drivers are also available from the Renesas website.
图像
特性
- IEEE 802.11a/b/g/n/ac (2.4GHz/5GHz)
- Qualcomm’s QCA9377-3
- Single stream (1 x 1)
- Maximum PHY data rate of 433Mbps (11ac VHT80)
- Host interface - Wireless LAN: SDIO 3.0/Bluetooth: UART
- Radio Law Certified (Japan, US, Canada, EU)
- Various module form factors: Surface mount, connector, SD Card
- Industrial temperatures (-40 °C to 85 °C)
产品对比
应用
- Industrial devices and handheld terminals
- Video devices (surveillance cameras)
- Smart home appliances
软件
软件和工具页面
| Software title
|
Software type
|
公司
|
|---|---|---|
| RZ/A2M SDIO Wi-Fi Package Software package for the RZ/A2M
|
Software Package | 瑞萨电子 |
1 item
|
||
