概览
描述

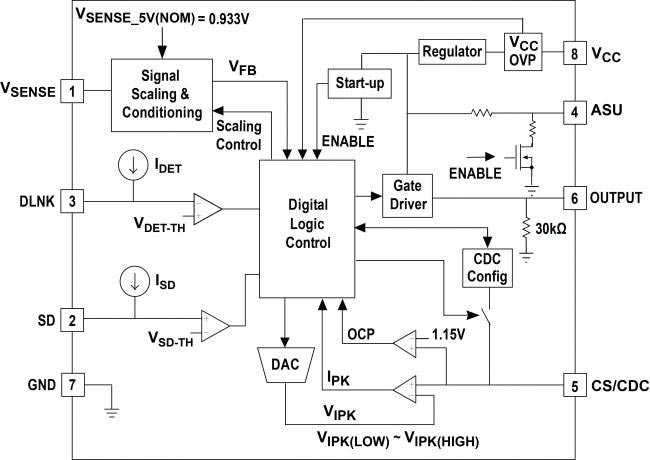

The iW1780H high-performance AC/DC RapidCharge™ power supply controller pairs with Renesas' iW636 secondary-side IC to provide a simple, low cost, high-efficiency solution to support Qualcomm Quick Charge 3.0 and 2.0 protocols.

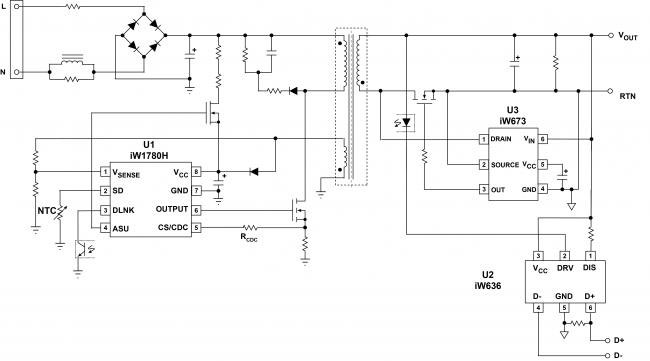

The iW1780H uses a unique secondary-to-primary digital communication link signal to receive all rapid charge commands from the iW636 RapidCharge™ secondary-side controller via a single optocoupler.
A full array of protection features integrated into the iW1780H include Renesas' SmartDefender™ advanced hiccup technology to address soft short circuits in charger cables and connectors, helping to prevent excessive heat build-up and damage.
Qualcomm® Quick Charge™ is a product of Qualcomm Technologies, Inc.
特性
- Supports Qualcomm® Quick Charge™ 3.0 and 2.0 protocols
- Proprietary secondary-to-primary digital communication and built-in decoder:
- Reduces BOM and significantly simplifies design
- Single optocoupler for all RapidCharge information
- Low no-load power consumption <10mW
- High efficiency up to 90%
- Fully protected from fault conditions
- Output overvoltage protection
- Overcurrent protection
- SmartDefender™ Smart Hiccup Technology
- Helps protect cables and connectors from excessive heat and damage by reducing average power during short circuit by at least 50%
