iW662

有效

Integrated Secondary-Side Synchronous Rectifier Controller and RapidCharge Interface IC for Qualcomm Quick Charge 3.0 and 2.0 Applications

立即订购
iW662 DatasheetiW662 Product Summary

概览

The iW662 integrated secondary-side synchronous rectifier controller and rapid charge interface IC uses Renesas' XM-Comm technology to communicate back to the primary-side controller, the (iW1790, iW1796, iW1798) eliminating the need for optocouplers to create solutions for rapid charging protocols such as Qualcomm® Quick Charge™ 3.0 and 2.0 technology.

The device also integrates a synchronous rectifier controller that uses adaptive off-time control to remove the need for a parallel Schottky diode to reduce power loss during transitions. The total solution reduces overall BOM cost and improves efficiency in reduced form factor travel adapters.

The iW1790+iW662 chipset uses Renesas'advanced fault control technology to help address soft shorts in cables and connectors.

Qualcomm Quick Charge is a product of Qualcomm Technologies, Inc.

iW662 Functional Block Diagram

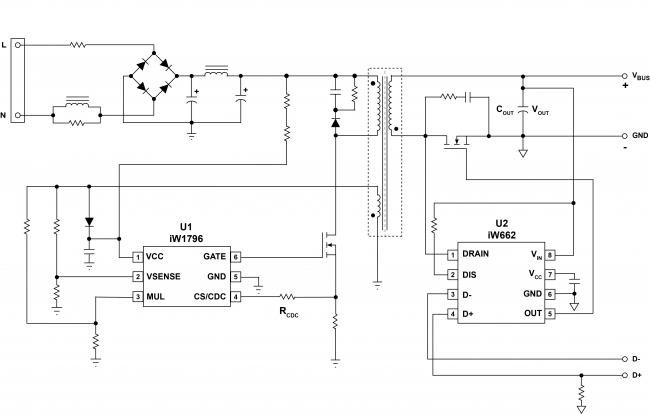

iW662 Typical Applications Diagram
iW662 Functional Block Diagram
iW662 Typical Applications Diagram
  • Integrates RapidCharge™ Interface IC and Synchronous Rectifier Controller in a Single IC
  • XM-Comm - Proprietary Secondary-to-Primary Digital Communication via Power Transformer:
    • No Need for Optocoupler
    • Reduces BOM and Significantly Simplifies Design
    • Handles All Rapid Charging Information
  • Supports Multiple RapidCharge Protocols
    • Qualcomm Quick Charge 3.0
    • Qualcomm Quick Charge 2.0
  • Synchronous Rectifier Controller
    • High-Voltage Drain Sensing up to 100V with No Additional External Clamping Circuits Required
    • Lossless MOSFET VDS Sensing for SR Timing Control with Digital Adaptive Turn-Off Control
    • Optimized 5V MOSFET Gate Driver
  • Double-layer cable protection:
    • Secondary side (iW662): Proprietary D+/D- Overvoltage Protection (OVP) Addresses VBUS D+/D Soft Shorts
    • Primary side (iW1790, iW1796, iW1798): Advanced Cable Fault Protection Reduces Average Output Power at Fault
  • Intelligent Low Power Mode Enables <20mW No-load Power Consumption
  • Dual Over-Temperature Protection (OTP)
    • On-chip Temperature Sensing Circuit and External NTC
  • RapidCharge AC/DC Adapters for Smartphones, Tablets and Other Portable Devices

文档

相关文档
类型 文档标题 日期
数据手册
iW662 Datasheet
登录后下载 PDF 846 KB
产品简述
iW662 Product Summary
PDF 558 KB
其他
Reference Design EBC10227: iW1796-09 + iW662-01 18W QC2.0 & QC3.0 Charger Design
登录后下载 ZIP 3.56 MB
其他
Reference Design EBC10208: iW1790-09 + iW662-01 18W, 5V/3A; 6V/3A, 9V/2A; 12V/1.5A QC3.0 XM-Comm Design
登录后下载 ZIP 3.13 MB
其他
Reference Design EBC10209: iW1790-09 + iW662-02 24W, 5V/3A; 8V/3A, 9V/2.7A; 12V/2A QC3.0 XM-Comm Design
登录后下载 ZIP 3.70 MB
其他
iW662 High Voltage Dedicated Charging Port Verification
PDF 91 KB
6 items
