4-10 Cell Battery Front End Evaluation Kit
The RTKA489220DK0000BU evaluation kit and GUI is used to evaluate the features of the RAA489220 4-10 cell battery front end (BFE) IC.
概览
描述

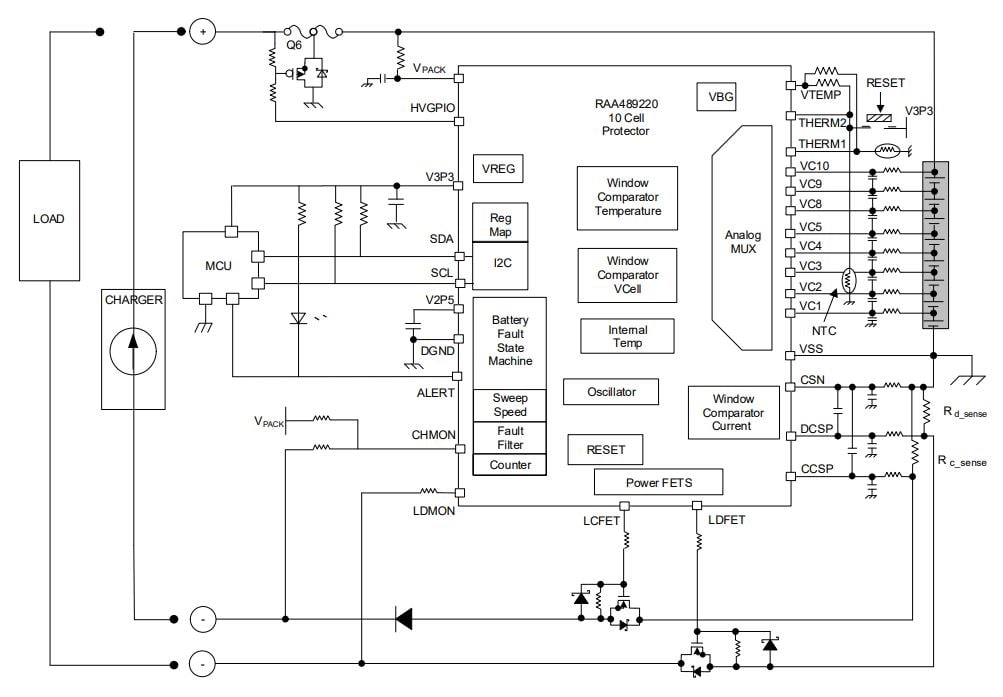

The RAA489220 is a highly integrated 4 to 10-cell battery front-end ideal for industrial applications requiring safety, flexible operation, and low-side protection FETs. The RAA489220 monitors cell and battery voltages, temperatures, and current, supports both an auto-scan mode and programmed scan sequence, provides internal self and system checks, can respond to fault conditions autonomously, and includes other helpful features like a fuse blow, and load and charge detection. For applications like power tools, vacuums, and garden tools, the RAA489220 is a perfect compromise between cost, size, and function.
特性
- VPACK voltages: 5V to 44V
- Hot plug tolerance
- Built-in low-side FET drivers
- Charger/Load presence detection
- Cell open wire and system checks
- Autonomous detection and actions
- High Voltage GPIO (HVGPIO) fuse blow configurable
- Support for a wide range of current-sense resistors
产品对比
应用
- Power tools
- Garden tools
- Vacuums
- Mobility
- Robotics
