Advanced Single Universal PWM Controller Evaluation Board

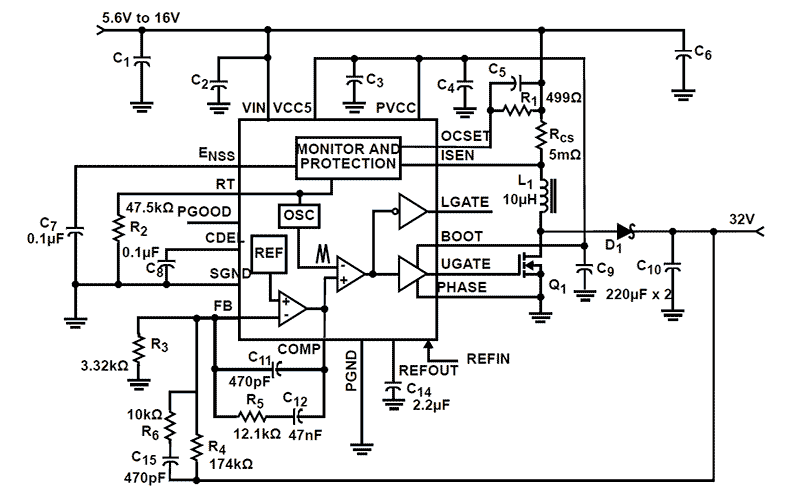

The ISL8130EV1Z is a standard boost converter, which features the ISL8130 universal pulse-width modulation (PWM) controller. The evaluation board delivers 32V output at...
ISL8130 是一款多功能控制器,将控制、输出调整、监控和保护功能集成到单个封装中,适用于同步降压、标准升压、SEPIC 和反激式拓扑。 ISL8130 提供简单的单反馈环路电压模式控制,具有快速瞬态响应。 转换器的输出电压可以精确调节到低至 0.6 V。 开关频率可在 100 kHz 至 1.4 MHz 范围内调节。 该误差放大器具有 15 MHz 增益带宽积和 6V/μs 压摆率,可实现快速瞬态响应。 在瞬态条件下,PWM 占空比范围为 0% 至 100%。 从 ENSS 引脚到接地的电容器设置软启动压摆率。 ISL8130 可监测输出电压,并在软启动序列完成且输出在稳压范围内时生成电源正常(PGOOD)信号。 内置的过压保护电路可防止输出电压高于设定点的 115%。 对于降压和降压-升压配置,通过监测 MOSFET 顶部的 rDS(ON)来适当抑制 PWM 操作,从而提供过流情况保护。 这种方法完全不需要电流检测电阻器,因此效率提高。 对于其他拓扑,过流保护是通过电流检测电阻器实现的。
The ISL8130EV1Z is a standard boost converter, which features the ISL8130 universal pulse-width modulation (PWM) controller. The evaluation board delivers 32V output at...
The ISL8130EVAL2Z evaluation board provides simple, voltage mode control with fast transient response and is used to evaluate the performance of the ISL8130 universal...
The ISL8130EVAL3Z evaluation board is a sepic converter, which features the ISL8130 universal pulse-width modulation (PWM) controller. The evaluation board delivers 10V...
