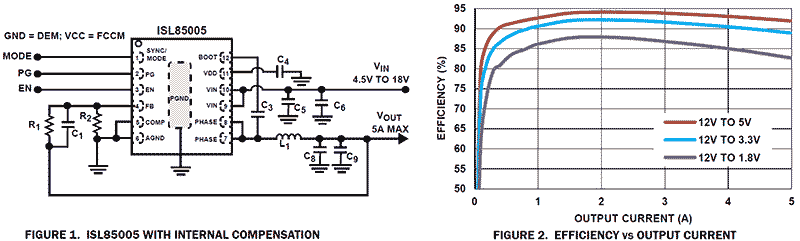

ISL85005 和 ISL85005A 都是单片同步降压稳压器,集成了 5A 18V 高压侧和低压侧 FET。 这些器件为高压侧栅极驱动器提供了一个集成自举二极管,以减少外部元件数量。 这些器件还具有宽输入电压范围,可支持输入电压来自多节电池或稳压 5V 和 12V 电源轨的应用。 ISL85005 和 ISL85005A 都是通过电流模式控制调节输出电压,并都具有一个内部振荡器。 ISL85005 的开关频率在内部设定为 500kHz,并可同步至频率范围为 300kHz 至 2MHz 的外部时钟信号。 ISL85005A 具有固定的 500kHz 开关频率。 ISL85005 有一个固定的 2.3ms 软启动,而 ISL85005A 具有可编程软启动功能,可限制启动期间的励磁涌流。 当 SS 引脚悬空时,ISL85005A 的软启动时间也是 2.3ms。 ISL85005 可配置为强制连续导通模式(CCM)或二极管仿真模式(DEM)。 DEM 可在轻负载条件下实现高效率。 ISL85005A 始终在强制 CCM 下运行。 ISL85005 和 ISL85005A 具有内置保护功能,包括输入 UVLO 保护、输入和输出过压保护、高压侧逐周期电流限制、低压侧正向电流限制和反向电流限制以及热关断保护。

特性

  • 4.5V 至 18V 输入电压范围
  • 内部 5A 18V 高压侧和低压侧 MOSFET 开关
  • ±1%,0.8V 反馈电压基准
  • 带低压检测测定的集成式自举二极管
  • 具有内部斜率补偿的电流模式控制
  • 内部或外部补偿选择
  • 默认内部设置的 500kHz 开关频率
  • 与外部时钟同步能力(ISL85005)
  • 二极管仿真模式(DEM)和强制 CCM(FCCM)选项(ISL85005)
  • 可调软启动时间(ISL85005A)
  • 输出功率正常(PG)指示器
  • 输入欠压锁定(UVLO)、输入和输出过压保护
  • 高压侧逐周期电流限制、低压侧正向和反向过流保护以及热关断
  • 小型 12 引脚 3mm x 4mm 双方扁平无引线(DFN)封装,带有 EPAD,可增强散热性能
