描述
The iW248 provides a unique combination of digital controller and analog driver blocks in one IC, resulting in an optimized solution for driving induction heating elements in rice cookers and induction cooktop appliances. Integrating virtually all discrete components normally used to drive and protect IGBTs, plus an optimized state machine digital core that replaces a traditional microcontroller, the iW248 significantly reduces solution size and eliminates up to 35 components.
The iW248 also features a proprietary low-power continuous mode that allows for smooth operation at low power states and control in 10W increments for induction cooktop applications up to 2100W.

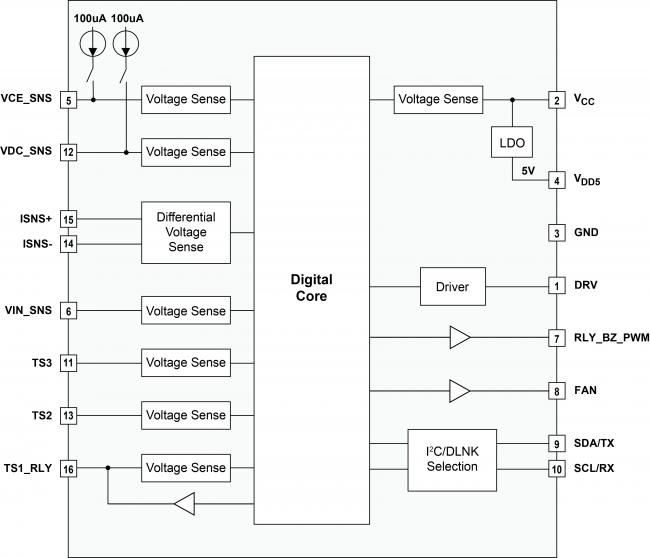

特性
- Integrated IGBT Controller
- Valley-mode Switching Control
- Optimized State Machine Core
- Eliminates Need for MCU
- Low Power Continuous Mode Operation with 10W Resolution Power Control
- Built-in Pot Detection Circuit
- Protects IGBT from Damage
- Multiple Protection Features, Including Programmable:
- Overvoltage Protection – IGBT Collector
- Three Dedicated Over-temperature Protection Pins
- Input Surge Protection
- Output Power Compensation
- DLNK – Isolated Communication Protocol
- I2C – Non-isolated Communication
产品对比

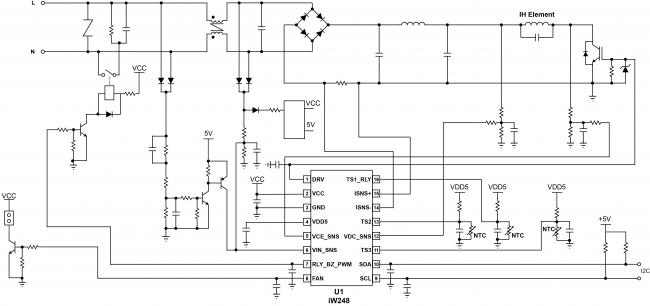

应用
设计和开发
开发板与套件
参考设计
AS048-EVK
有效
高能效单头电磁炉参考设计
AS048 2100W 单板电磁炉设计采用 iW248 智能 IGBT 驱动器和控制器单芯片 ASSP，提供卓越性能，具有高效率和高可靠性。 这种设计可以让用户以 ±10W 为单位灵活调节功率，实现炖煮功能。 基于 RL78/G15 的人机界面卡具有引脚数少、多矩阵开关、LED 指示灯和 7 段显示等特点。 此外，电容式触摸感应单元（CTSU）可实现强大的电容式触摸功能，在潮湿条件下也可正确感应。 设计中使用三个负温度系数电阻器（NTC）进行过温检测。
Recommended Documents:
Test this Board Remotely
该板卡已上线云上实验室（Lab on the Cloud)，使用我们的 PC 图形界面，无需实体板卡，便可在虚拟实验室中立即开始配置和测试设计。
