SLG5NT1533V Evaluation Board
The SLG5NT1533V-EVB board evaluates the SLG5NT1533V GreenFET, Single N-Channel, Notebook PC Reference Design Load Switch.
For details on how to use the evaluation board,...
特色文件:
概览
描述

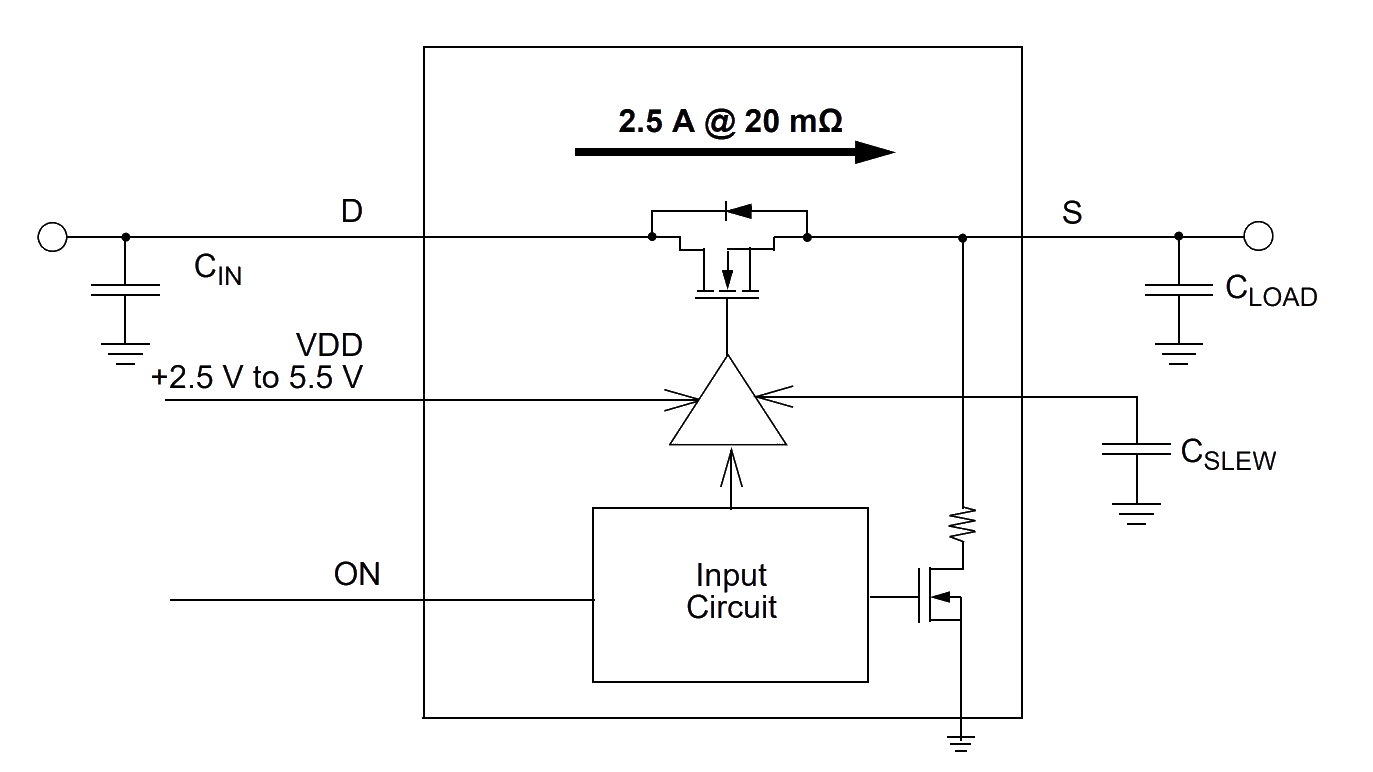

The SLG5NT1533V is a 20mΩ 2.5A single-channel load switch with configurable slew rate control. The device can enable fast power rail turn-on with big cap loading. The internal circuit limits max inrush current to prevent device damage. The product is packaged in an ultra‑small 1.0mm x 1.6mm package.
特性
- 20mΩ RDSON while supporting 2.5A
- Discharges load when off
- Fast turn-on time
产品对比
应用
- Fast Turn On/Off power rail switching with big cap loading
- Frequent wake and sleep power cycle
- Mobile devices and portable devices
