概览
描述

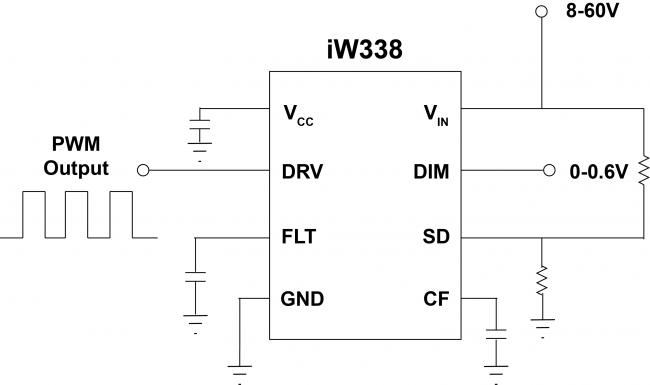

The iW338 is a generic PWM signal generator IC that converts a 0V to 0.6V analog voltage to an inverted 0% to 100% PWM duty cycle. The PWM frequency range is set by an external capacitor and can be programmed from 100Hz to 50kHz. The output of the iW338 is a 5V PWM driver capable of driving an external optocoupler or MOSFET.
特性
- Input voltage: 8V to 60V
- 1% PWM duty cycle tolerance
- Programmable PWM frequency range: 100Hz to 50kHz
- Integrated 5V LDO
- For inputs up to 60V
- Reduces BOM count
产品对比
应用
- PWM analog LED dimming
- Warm dimming
设计和开发
模型
ECAD 模块
点击产品选项表中的产品，查找 SamacSys 中的原理图符号、PCB 足迹和 3D CAD 模型。点击产品选项表中的产品，查找 SamacSys 中的原理图符号、PCB 足迹和 3D CAD 模型。
