概览

描述

The SLG46108-EV provides a small, low power component for commonly used mixed-signal functions. The user creates their circuit design by programming the one-time programmable (OTP) non-volatile memory (NVM) to configure the interconnect logic, the IO pins, and the macrocells of the SLG46108-EV. This highly versatile device allows a wide variety of mixed-signal functions to be designed within a very small, low power single integrated circuit.

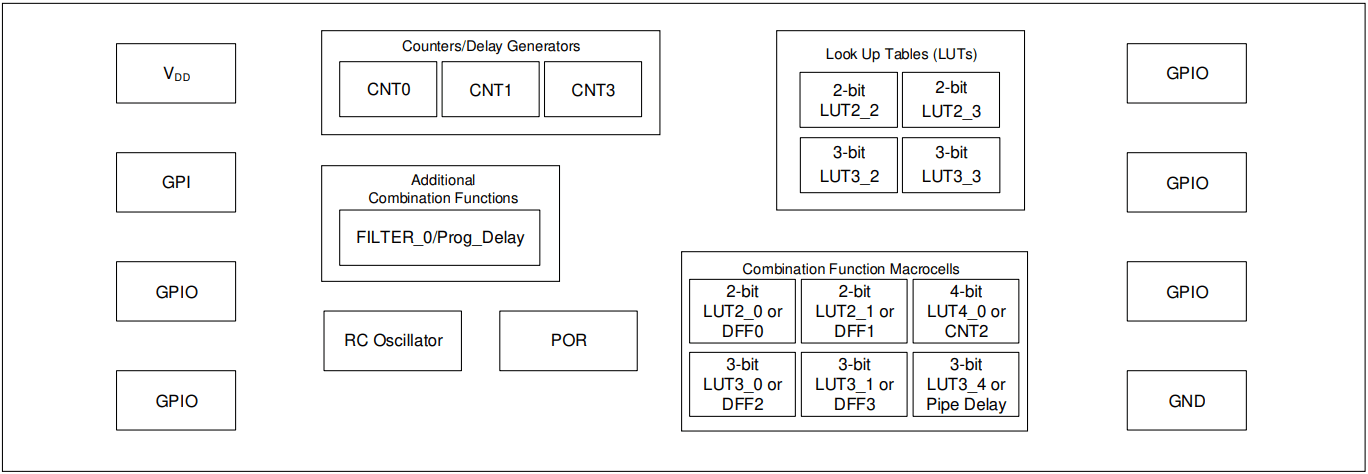

特性

  • Logic and mixed-signal circuits
  • Highly versatile macrocells
  • Four combinatorial Look-Up Tables (LUTs)
    • Two 2-bit LUTs
    • Two 3-bit LUTs
  • Seven combination function macrocell
    • Two selectable D Flip-Flop/Latches (DFF) or 2-bit LUTs
    • Two selectable D Flip-Flop/Latches (DFF) or 3-bit LUTs
    • One selectable Pipe Delay or 3-bit LUT
      • Pipe Delay – 8 stage/2 output
    • One selectable counter/delay (CNT/DLY) or 4-bit LUT
    • One programmable delay/deglitch filter
  • Three 8-bit counter/delay generators (CNT/DLY) with external clock/reset
  • RC oscillator (RC OSC)
  • Power-on reset (POR)
  • 1.8V (±5%) to 5V (±10%) supply
  • Operating temperature range: -40 °C to 105 °C
  • RoHS-compliant/Halogen-free
  • Pb-free 8-pin STQFN: 1.0mm x 1.2mm x 0.55mm, 0.4mm pitch

产品对比

应用

  • Personal computers and servers
  • PC peripherals
  • Consumer electronics
  • Data communications equipment
  • Automotive display clusters
  • Handheld and portable electronics

文档

类型 文档标题 日期
数据手册 PDF 1.38 MB
器件勘误表 PDF 684 KB
2 items

设计和开发

软件与工具

软件与工具

Software title
Software type
公司
Go Configure Software Hub
Go Configure Software Hub 为各种产品提供开发支持,包括 GreenPAK 可配置混合信号矩阵和 ForgeFPGA™ 器件。
Software Package 瑞萨电子
1 item

开发板与套件

模型

ECAD 模块

点击产品选项表中的产品,查找 SamacSys 中的原理图符号、PCB 足迹和 3D CAD 模型。点击产品选项表中的产品,查找 SamacSys 中的原理图符号、PCB 足迹和 3D CAD 模型。


Diagram of ECAD Models

产品选项

当前筛选条件

视频和培训
