F6932 Dual-Channel Low Noise Amplifier for Ka-Band SATCOM Evaluation Board
The Renesas F6932EVB evaluation board is designed to reduce the learning cycle, build system-level confidence, and enable a rapid time to market with the F6932...
概览
描述

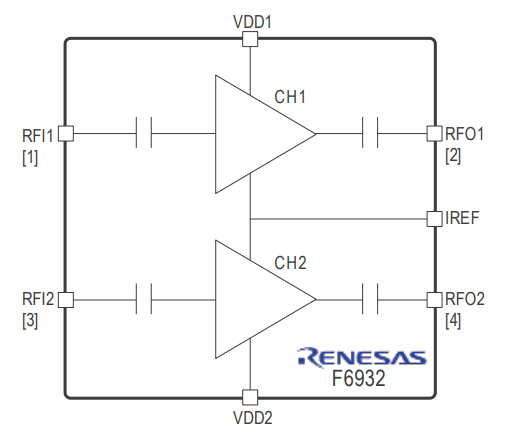

The F6932 is an ultra-low power consumption, dual-channel, silicon on insulator (SOI) low noise amplifier (LNA) RFIC designed for application in Ka‑Band SATCOM planar phased array antennas. The exceptional combination of low power consumption, low noise, high gain, and compact size, maximizes the antenna array G/T while minimizing overall system power dissipation.
The F6932 includes two LNA channels in a compact 23-pin, 0.5mm pitch BGA package. All inputs and outputs are single-ended and 50Ω matched for ease of integration onto phased array antenna panels.
特性
- Frequency: 17.7GHz – 21.2GHz
- Gain: 22dB
- Noise Figure: 1.2dB
- Output P1dB: -2dBm
- Power consumption: 15mW/ch
- Supply voltage: 1.2V nominal
- Compact size for planar integration on λ/2 grid
- 2.7 × 2.7 × 0.9 mm, 23-pin BGA
- -40°C to +85°C ambient operating temperature range
