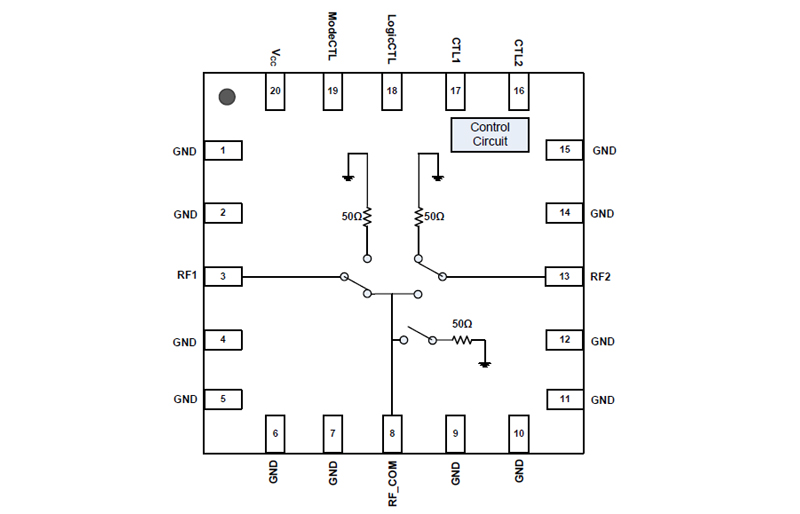

The IDT F2912 is a high reliability, low insertion loss 50Ω SPDT (SP2T) absorptive RF switch designed for a multitude of wireless and other RF applications. This device covers a broad frequency range from 0.009 MHz to 9000 MHz. In addition to providing low insertion loss, the F2912 also delivers excellent linearity and isolation performance while providing 50 ohm terminations to the unused RF input port.
The F2912 uses a single positive supply voltage of 3.3V supporting three states using either 3.3 V or 1.8 V user-selectable control voltage. An added feature includes a Mode CTL pin allowing the user to control the device with either 1-pin or two-pin control.
特性
- Very low insertion loss: 0.45 dB @ 1 GHz
- High Input IP3: +65 dBm
- RF1 to RF2 Isolation: 72 dB @ 1 GHz
- 1-pin or 2-pin device control option
- Low DC current; 50 µA using 3.3 V logic
- Single positive supply voltage: 3.3 V
- 3.3 V or 1.8 V user-selectable control logic
- Operating temperature -55°C to +125°C
- 4x4 20-pin TQFN package
产品对比
应用
设计和开发
开发板与套件
评估
F2912EVBI
有效
Evaluation Board for High Reliability SP2T RF Switch F2912
The F2912EVBI is the Evaluation Board for High Reliability SP2T RF Switch F2912.
Recommended Documents:
模型
ECAD 模块
点击产品选项表中的 CAD 模型链接，查找 SamacSys 中的原理图符号、PCB 焊盘布局和 3D CAD 模型。如果符号和模型不可用，可直接在 SamacSys 请求该符号或模型。
