Name: F2972 - High Linearity Broadband SP2T RF Switch
Brand: Renesas Electronics Corporation
SKU: F2972 - High Linearity Broadband SP2T RF Switch
Availability: InStock

概览

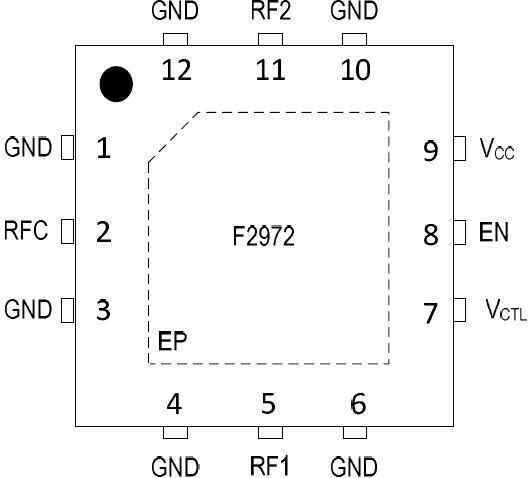

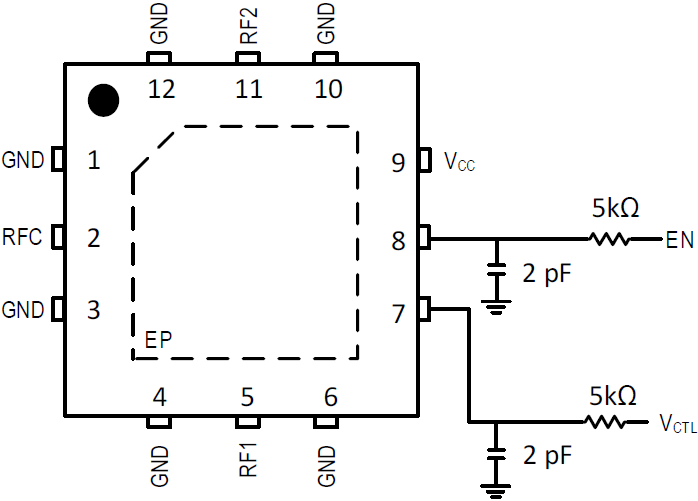

The F2972 is a single-pole double-throw (SP2T) reflective RF switch featuring high linearity and wide bandwidth. This device is optimized from 5MHz to 1.8GHz to support downstream cable modem future migration for DOCSIS 3.1 applications and operates at up to 10GHz to support a multitude of wireless RF applications. Superb performance is achieved when used in either 50Ω or 75Ω terminating impedance applications.

75Ω
- Low insertion loss
  - 0.23dB at 204MHz
  - 0.34dB at 1.8GHz
- High Isolation: 40dB at 1.8GHz
- P0.1dB compression of +37dBm at 204MHz
- Second Harmonic: -100dBc at 204MHz
- Third Harmonic: -120dBc at 204MHz
- Composite Second Order Distortion > 100dBc
- Composite Triple Beat Distortion > 100dBc
50Ω
- Low insertion loss
  - 0.40dB at 2.4GHz
  - 0.55dB at 8GHz
- High Isolation: 34dB at 2.4GHz
- High Linearity:
  - IIP2 +125dBm at 2.4GHz
  - IIP3 +77dBm at 2.4GHz
- P0.1dB compression of +40dBm at 2.4GHz
- Second Harmonic: -100dBc at 2.4GHz
- Third Harmonic: -110dBc at 2.4GHz

文档


类型	文档标题	日期
数据手册	F2972 Datasheet PDF 5.72 MB	2017年4月19日
指南	RF Product Selection Guide PDF 2.24 MB	2023年9月27日
报告	PCN# : 220029 Add Alternate Assembly Locations on VFQFPN and LGA Packages PDF 517 KB	2022年12月2日
产品简述	RF Switches Family PDF 438 KB	2020年6月20日
产品变更通告	PCN# : TB1901-03 Add Giga Solution as Alternate Test Location PDF 24 KB	2019年1月24日
应用简介	IDT Products for Wired Broadband Applications PDF 686 KB	2017年9月1日
6 items

设计和开发

F2972 Evaluation Board 50ohm - Perspective

评估

F2972EVBI

Evaluation Board for F2972 High Linearity Broadband SP2T RF Switch

The F2972EVBI is a fully populated evaluation board, enabling easy RF evaluation of the product. It is available in 50Ω or 75Ω terminating impedance.

“Thru” calibration connectors are conveniently located on the eval board to simplify the calibration process prior to making any RF...

ECAD 模块

点击产品选项表中的 CAD 模型链接，查找 SamacSys 中的原理图符号、PCB 焊盘布局和 3D CAD 模型。如果符号和模型不可用，可直接在 SamacSys 请求该符号或模型。

扩展 ECAD 模块

模型


类型	文档标题	日期
模型 - 散射参数	F2972 S-Parameters ZIP 95 KB	2017年5月15日
1 item

产品选项

当前筛选条件

视频和培训

High-Performance SPDT Reflective RF Switches: F2972 & F2976

A brief video overview of IDT's (acquired by Renesas) F2972 & F2976 high-performance single-pole, double-throw reflective (SPDT, SP2T) RF switches. They operate from 5MHz to 10GHz, offering an industry-leading mix of low-insertion loss, high isolation, low distortion, and high-power handling.

The IDT devices are specified for use in either 50-ohm or 75-ohm systems, offering versatility for a wide range of markets and applications, including, BTS wireless communications equipment, DOCSIS 3.1 CATV applications, drones, and general-purpose consumer products.

Features include:
