ISL70100M

NEW有效

Rad Tolerant 40V Current Sense Amplifier

立即订购
ISL70100M Datasheet

概览

The ISL70100M is a radiation tolerant 40V current sense amplifier built on the Renesas proprietary PR40 Silicon-on-Insulator (SOI) process. The device has a wide power supply range of 2.7V to 40V. The input common-mode voltage is independent of the supply voltage and extends from -0.3V to 40.0V, making it ideal to use in both high-side and low-side applications.

The ISL70100M is a transconductance amplifier that monitors current using an external sense resistor and outputs a current proportional to the sensed voltage. The overall voltage gain is adjustable with a single resistor from the output to ground.

The amplifier has an extremely low offset voltage and input bias currents, making it ideal for precision sensing applications. It has a minimum bandwidth of 500kHz with a slew rate of 500µA/µs that makes it useful for current feedback in telemetry applications. When the part is powered down (V+ = V- = 0V), the sense pins (RS+, RS-) are high impedance to avoid loading the monitored circuit.

The part is available in a plastic 14Ld TSSOP package and operates across the temperature range of -55 °C to +125 °C.

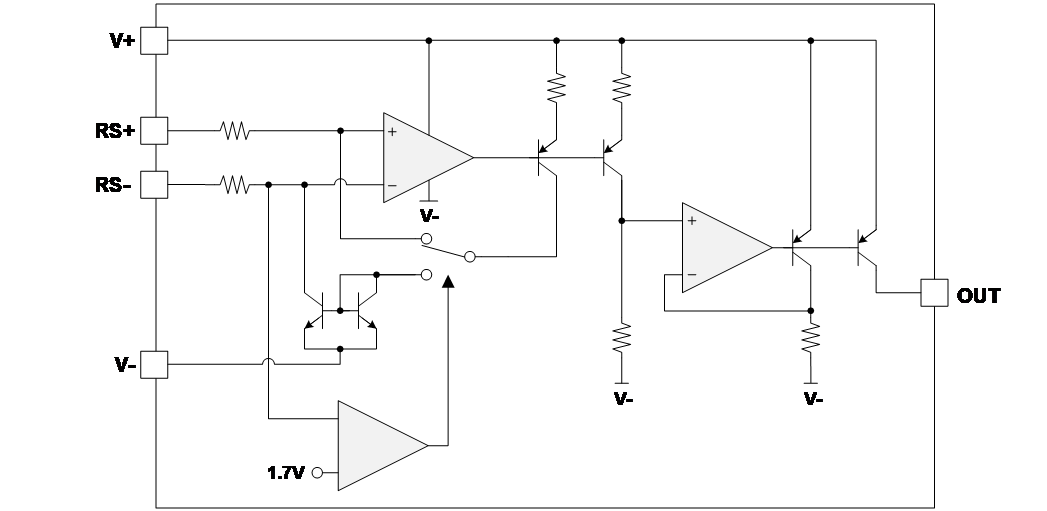

ISL70100M Block Diagram
ISL70100M Block Diagram

Qualified to Renesas Rad Tolerant Screening and QCI Flow (R34TB0004EU)

  • Power supply range: 2.7V to 40V
  • Input common-mode range: -0.3V to 40V
  • Transconductance: 2µA/mV (typical)
    • ±1% accuracy (TA = 25 °C)
    • ±1.5% accuracy (TA = -55 °C, 125 °C)
  • Voltage offset: 10µV (typical), V+ = 12V
  • Adjustable gain with a single resistor
  • Operating temperature range: -55 °C to +125 °C
  • Passes NASA low outgassing specifications
  • 14 Ld TSSOP with NiPdAu-Ag lead finish
  • TID Radiation Lot Acceptance Testing (RLAT) (LDR: ≤ 10mrad(Si)/s)
    • ISL70100M30VZ: 30krad(Si)
    • ISL70100M50VZ: 50krad(Si)
  • SEE Characterization
    • No DSEE with V+ = 42V at 43MeV•cm2/mg

文档

相关文档
类型 文档标题 日期
数据手册
ISL70100M Datasheet
PDF 1.31 MB
应用说明
Key Circuits in Sensor Signal Conditioning Application Note
PDF 617 KB
白皮书
Wafer by Wafer Low Dose Rate Acceptance White Paper
PDF 533 KB
应用说明
AN9867: End of Life Derating: A Necessity or Overkill
PDF 338 KB
应用说明
AN9654: Use of Life Tested Parts
PDF 224 KB
5 items

设计和开发

ISL70100MVZEV1Z Evaluation Board - Top

ISL70100MEV1Z

Evaluation
了解更多

Radiation Tolerant 40V Current Sense Amplifier Evaluation Board

The ISL70100MEV1Z evaluation board is used to evaluate the performance of the ISL70100M radiation tolerant 40V current sense amplifier.

Built using the Renesas...

特色文件:
ISL70100MEV1Z Evaluation Board Manual
